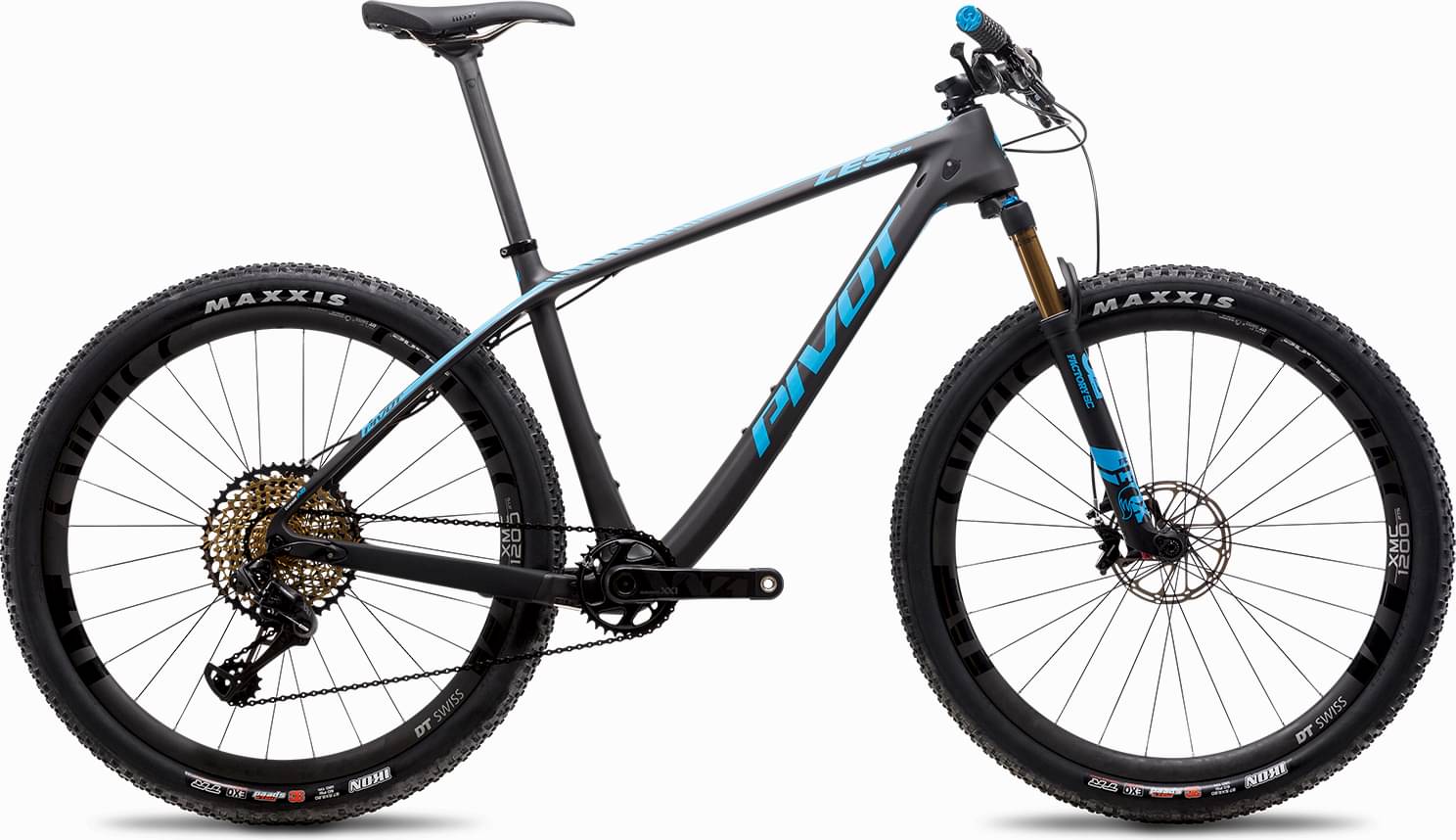

Pivot LES 27.5 Team XX1 AXS 2023
2023 Mountain
Estimate price |
8,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES 27.5
Suspension Fork
Fox Factory Stepcast 32 27.5", 44mm offset, FIT4 - 100mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-52t
Crank
SRAM XX1 Eagle DUB SL 34t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 27.5"
15x110 F/12x148 R
Tires
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI
Brakes
Brakes
SRAM Level Ultimate 2-piston
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge - Race
Seat
Saddle
Phoenix WTB Team Volt (Narrow Width)
Seatpost
Phoenix Team Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.47 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm |
| Stack | 575 mm | 589 mm | 594 mm | 607 mm |
| Reach | 386 mm | 402 mm | 415 mm | 430 mm |
| Top Tube Length | 553 mm | 581 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 368 mm | 406 mm | 445 mm | 483 mm |
| Head Tube Angle | 68.75 ° | 69.25 ° | 69.25 ° | 69.5 ° |
| Head Tube Length | 89 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1062 mm | 1076 mm | 1091 mm | 1108 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 650 | 688 mm | 726 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm |
Model Overview
LES 27.5 Team XX1 AXS completes the Pivot Les model. Pivot launched 126 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Pivot LES 27.5 Ride SLX/XT 2023 is the most affordable bike of this model and has a price of 4199$. On the other hand, Pivot LES SL Team XX1 AXS 2023, is the most expensive and costs 9799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8199$. If we compare this with the average Crosscountry bike cost we notice that the price is 330.39% higher.
LES 27.5 Team XX1 AXS components
Fork
Pivot LES 27.5 Team XX1 AXS 2023 bike is equipped with the Fox Factory Float 32 fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the LES 27.5 Team XX1 AXS bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot LES 27.5 Team XX1 AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, you won’t have a problem finding one that suits you.
