Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset X01, X01 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES
Suspension Fork
Fox Factory Stepcast 32 29" w/ Remote, 44mm offset - 100mm
Drivetrain
Rear Derailleur
SRAM XO1 12-Speed
Shift Levers
SRAM XO1 12-Speed
Cassette
SRAM XO1 XG-1295 10-50t
Crank
SRAM XO1 Eagle DUB 32t
Chain
SRAM XO1 12-Speed
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub, 25mm - 29"
Tires
Maxxis Ikon 29" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ikon 29" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPI
Brakes
Brakes
SRAM Level TLM
Disk Rotors
SRAM Centerline CenterLock - 160mmSRAM Centerline CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail - 90mm
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge - Race
Seat
Saddle
Phoenix WTB Pro Volt
Seatpost
Phoenix Pro Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.47 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm | 307 mm |
| Stack | 615 mm | 619 mm | 637 mm | 657 mm |
| Reach | 402 mm | 420 mm | 429 mm | 449 mm |
| Top Tube Length | 588 mm | 613 mm | 628 mm | 654 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 451 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.3 ° | 69.5 ° | 69.5 ° | 70 ° |
| Head Tube Length | 98 mm | 102 mm | 113 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1088 mm | 1105 mm | 1121 mm | 1142 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 730 mm | 748 mm | 758 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model

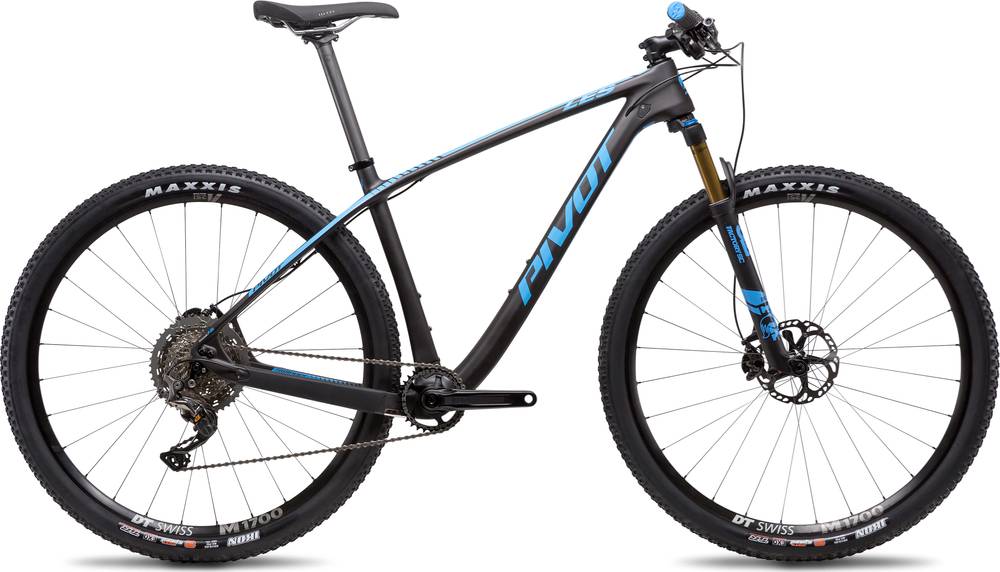

LES 29″ Pro X01 completes the Pivot Les model. There are 126 bikes that carry this model name. You can easily view all of the Pivot Les bikes models from 2019, here.
Model range prices
Pivot LES 27.5 Race XT 2019 is the most economical model, with a starting price of 3799$. Pivot LES SL Team XX1 AXS 2019 on the other hand costs 8199$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Pivot released this model in 2019, its price was 5899$. In conclusion, this bike price is 209.66% higher than the price of the average Crosscountry bike.
Overview of components
Fork
The LES 29″ Pro X01 comes factory-installed with the Fox Factory Float 32 fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The LES 29″ Pro X01 2019 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The LES 29″ Pro X01 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Pivot LES 29″ Pro X01 bike has 4 sizes, in the range of 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
