Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Groupset XT, Race Face -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES Fat
Suspension Fork
Pivot LES Fat Carbon
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS 12-Speed
Shift Levers
Shimano XT M8100 ISPEC EV 12-Speed
Cassette
Shimano SLX M7100 10-51t
Crank
Race Face Turbine 30t Fat Bike
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
SUNringlé Mulefüt 80SL w/ SUNringlé SRC hub - 27.5"
15x150 F/12x197R
Tires
Maxxis Minion FBF 27.5" x 3.8" EXO, TR
Maxxis Minion FBR 27.5" x 3.8" EXO, TR
Brakes
Brakes
Shimano XT M8100 2-piston
Disk Rotors
Shimano SLX 6-bolt - 180mm
Shimano SLX 6-bolt - 180mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro Vigo
Seatpost
Phoenix Pro Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Stack | 602 mm | 616 mm | 631 mm |
| Reach | 394 mm | 415 mm | 432 mm |
| Top Tube Length | 580 mm | 605 mm | 627 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 102 mm | 117 mm | 133 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1094 mm | 1120 mm | 1143 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 684 mm | 716 mm | 753 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 171 cm | 179 cm |
| Rider Max Height | 174 cm | 182 cm | 188 cm |

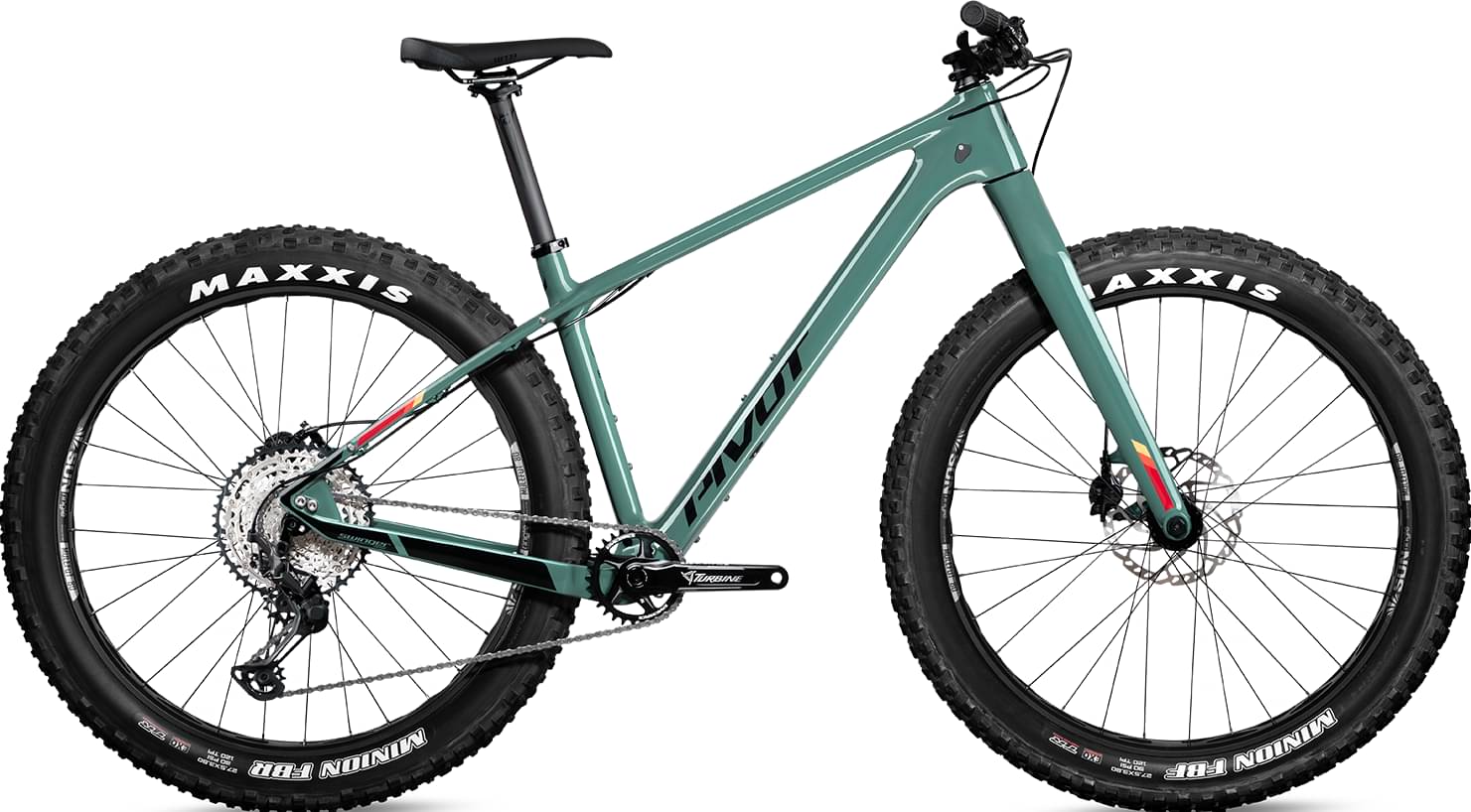

About this model
LES Fat Pro XT completes the Pivot Les model. Pivot launched 126 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Pivot LES 27.5 Ride SLX/XT 2022 is the most affordable bike of this model and has a price of 4199$. On the other hand, Pivot LES SL Team XX1 AXS 2022, is the most expensive and costs 10033$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fatbike bikes
According to our math, the average price for a trustworthy Fatbike bike is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Pivot released this model in 2022, its price was 4799$. Comparing the average cost of a Fatbike bike to this one, you will see that LES Fat Pro XT price is 175.33% higher.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the LES Fat Pro XT bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The LES Fat Pro XT has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 162 cm – 188 cm (5.31 ft – 6.17 ft). In conclusion, it won’t take much to find one that’s right for you.
