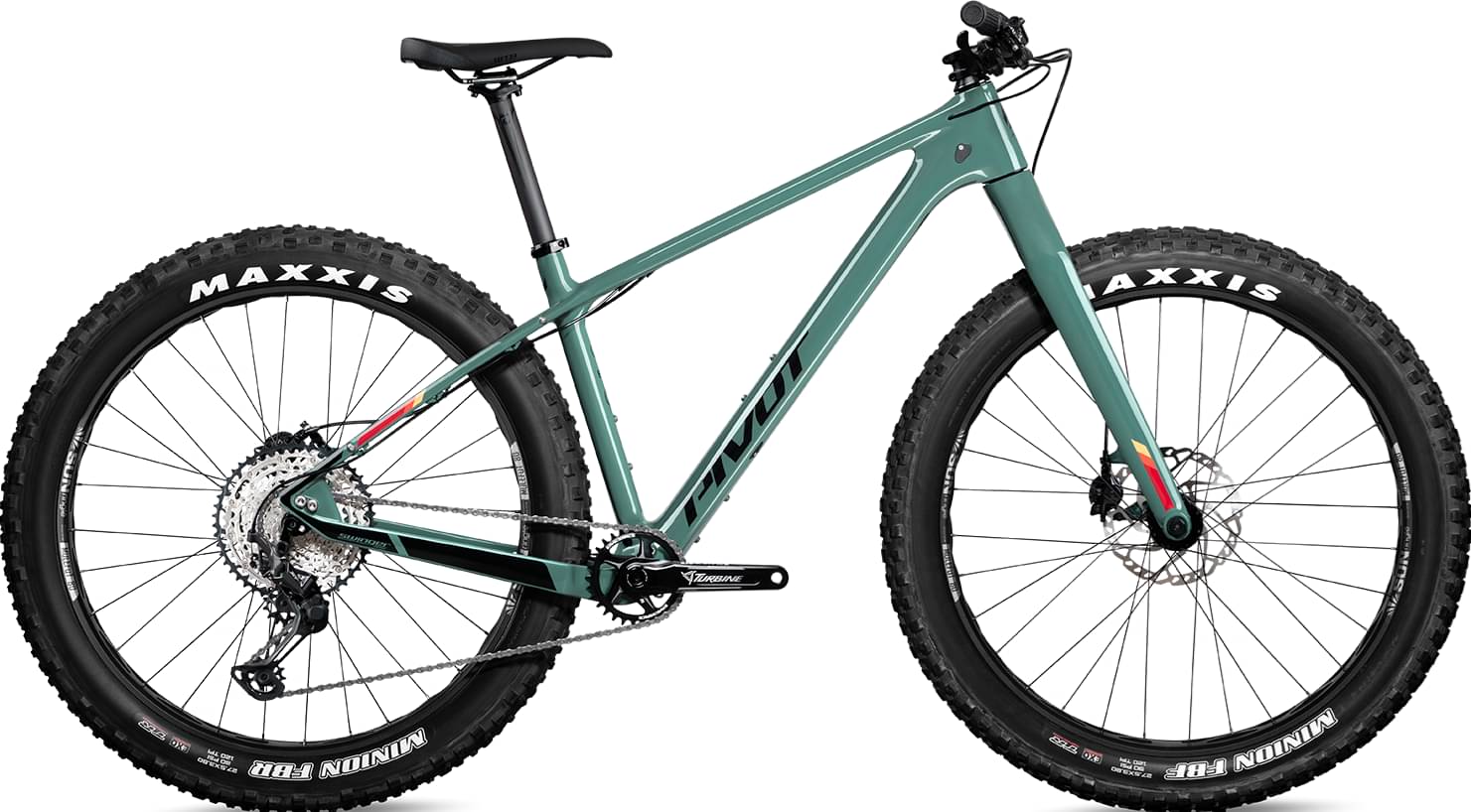

Pivot LES Fat Pro XT w/ Manitou Suspension Fork 2022
2022 Mountain
Estimate price |
5,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Manitou Mastodon Comp
-
Groupset XT, Race Face -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
162cm - 174cm
MD Low
171cm - 182cm
LG Low
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES Fat
Suspension Fork
Manitou Mastodon Comp 34 - 100mm
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS 12-Speed
Shift Levers
Shimano XT M8100 ISPEC EV 12-Speed
Cassette
Shimano SLX M7100 10-51t
Crank
Race Face Turbine 30t Fat Bike
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
SUNringlé Mulefüt 80SL w/ SUNringlé SRC hub - 27.5" 15x150 F/12x197R
Tires
Maxxis Minion FBF 27.5" x 3.8" EXO, TR Maxxis Minion FBR 27.5" x 3.8" EXO, TR
Brakes
Brakes
Shimano XT M8100 2-piston
Disk Rotors
Shimano SLX 6-bolt - 180mm Shimano SLX 6-bolt - 180mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro Vigo
Seatpost
Phoenix Pro Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | MD Low | LG Low |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Stack | 602 mm | 616 mm | 631 mm |
| Reach | 394 mm | 415 mm | 432 mm |
| Top Tube Length | 580 mm | 605 mm | 627 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 102 mm | 117 mm | 133 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1094 mm | 1120 mm | 1143 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 684 mm | 716 mm | 753 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 171 cm | 179 cm |
| Rider Max Height | 174 cm | 182 cm | 188 cm |
Model Overview
LES Fat Pro XT w/ Manitou Suspension Fork is a Pivot Les model. There are 126 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Pivot LES 27.5 Ride SLX/XT 2022 has a starting price of 4199$. Pivot LES SL Team XX1 AXS 2022 on the other hand is the most expensive at 10033$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fatbike bikes average price
According to our calculations, the average cost of a Fatbike bike that is reliable is 1743$. However, even though the average price of a Fatbike bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Pivot released this model in 2022, its price was 5099$. Doing a quick comparison, we notice that LES Fat Pro XT w/ Manitou Suspension Fork price is 192.54% higher than the average cost of a Fatbike bike.
Overview of components
Fork
This bike has the Manitou Mastodon Comp fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Pivot LES Fat Pro XT w/ Manitou Suspension Fork 2022, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot LES Fat Pro XT w/ Manitou Suspension Fork has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 162 cm – 188 cm (5.31 ft – 6.17 ft). In conclusion, you won’t have a problem finding one that suits you.
