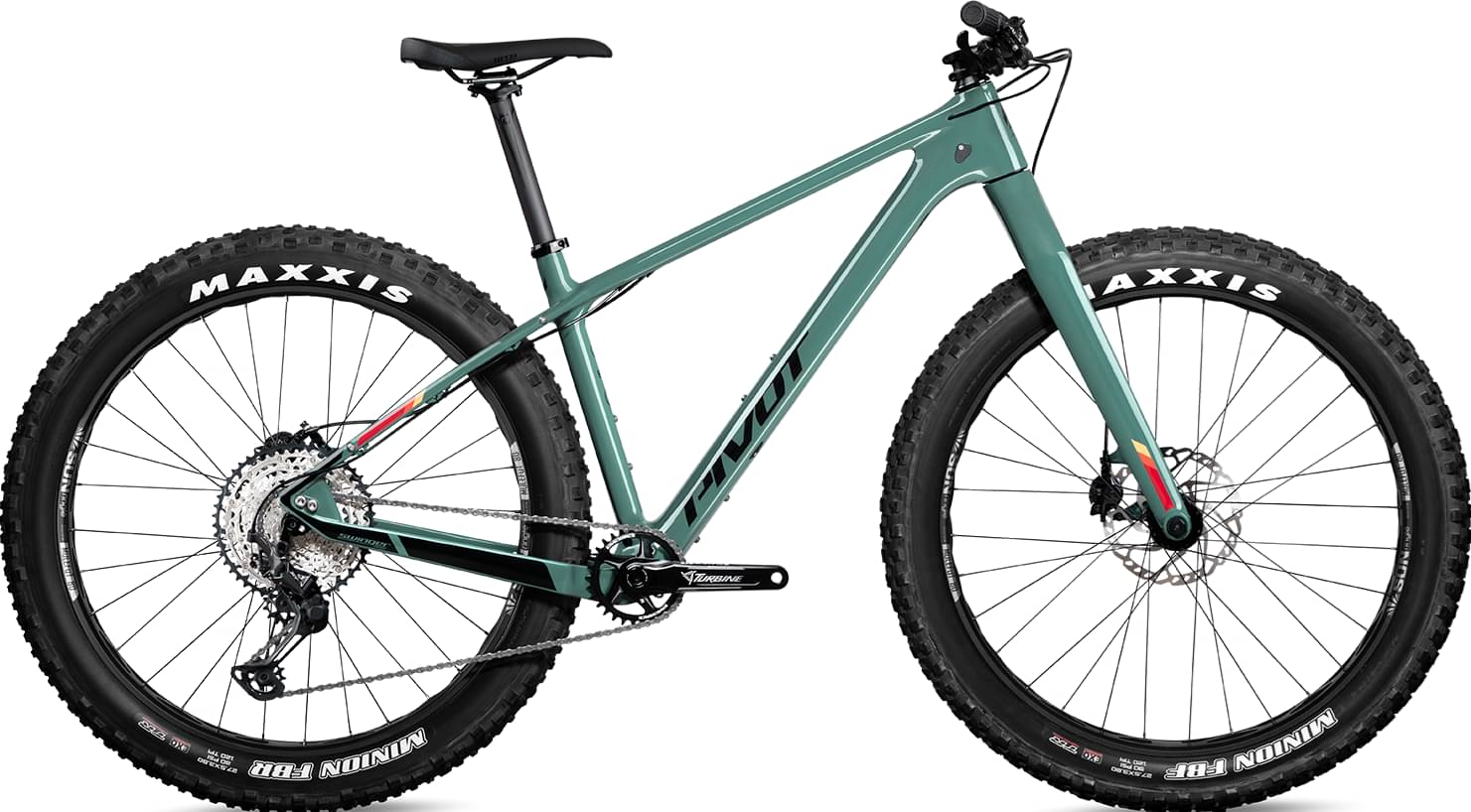

Pivot LES Fat Pro XT w/ Carbon Rigid Fork 2022
2022 Mountain
Estimate price |
4,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Groupset XT, Race Face -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
162cm - 174cm
MD Low
171cm - 182cm
LG Low
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES Fat
Suspension Fork
Pivot LES Fat Carbon
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS 12-Speed
Shift Levers
Shimano XT M8100 ISPEC EV 12-Speed
Cassette
Shimano SLX M7100 10-51t
Crank
Race Face Turbine 30t Fat Bike
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
SUNringlé Mulefüt 80SL w/ SUNringlé SRC hub - 27.5" 15x150 F/12x197R
Tires
Maxxis Minion FBF 27.5" x 3.8" EXO, TR Maxxis Minion FBR 27.5" x 3.8" EXO, TR
Brakes
Brakes
Shimano XT M8100 2-piston
Disk Rotors
Shimano SLX 6-bolt - 180mm Shimano SLX 6-bolt - 180mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro Vigo
Seatpost
Phoenix Pro Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | MD Low | LG Low |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Stack | 602 mm | 616 mm | 631 mm |
| Reach | 394 mm | 415 mm | 432 mm |
| Top Tube Length | 580 mm | 605 mm | 627 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 102 mm | 117 mm | 133 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1094 mm | 1120 mm | 1143 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 684 mm | 716 mm | 753 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 171 cm | 179 cm |
| Rider Max Height | 174 cm | 182 cm | 188 cm |
Model Overview
LES Fat Pro XT w/ Pivot Carbon Rigid Fork completes the Pivot Les model. There are 126 bikes that carry this model name. Take a sneak peek at all Pivot Les bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Pivot LES 27.5 Ride SLX/XT 2022 has a starting price of 4199$. Pivot LES SL Team XX1 AXS 2022 on the other hand is the most expensive at 10033$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fatbike bikes average price
If you want to purchase a solid Fatbike bike, it is important to know that the average cost is 1743$. However, you could also get a good Fatbike bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4799$. Comparing this to the average Fatbike bike price, we see that the price is 175.33% higher.
LES Fat Pro XT w/ Pivot Carbon Rigid Fork components
Fork material
LES Fat Pro XT w/ Pivot Carbon Rigid Fork has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the LES Fat Pro XT w/ Pivot Carbon Rigid Fork model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The LES Fat Pro XT w/ Pivot Carbon Rigid Fork comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 162 cm – 188 cm (5.31 ft – 6.17 ft). In short, you can easily find one that suits you.
