Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset X01, GX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES
Suspension Fork
Fox Performance Stepcast 32 29”, 44mm offset, GRIP - 100mm
Drivetrain
Rear Derailleur
SRAM XO1 12-Speed
Shift Levers
SRAM GX1 12-Speed
Cassette
SRAM GX1 XG-1275 10-50t
Crank
SRAM GX Eagle DUB 32t
Chain
SRAM GX1 12-Speed
Wheels
Rims
SUNringlé Charger Comp w/ SUNringlé SRC hub, 27mm - 29"
Tires
Maxxis Ikon 29" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ikon 29" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPI
Brakes
Brakes
Shimano SLX M7000
Disk Rotors
Shimano SLX 6-bolt - 160mmShimano SLX 6-bolt - 160mm
Cockpit
Stem
Phoenix Team XC/Trail - 90mm
Handlebar
Phoenix Race Low Rise Aluminum - 750mm
Grips
Phoenix Team Padloc
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Race Volt
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.47 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm | 307 mm |
| Stack | 615 mm | 619 mm | 637 mm | 657 mm |
| Reach | 402 mm | 420 mm | 429 mm | 449 mm |
| Top Tube Length | 588 mm | 613 mm | 628 mm | 654 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 451 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.3 ° | 69.5 ° | 69.5 ° | 70 ° |
| Head Tube Length | 98 mm | 102 mm | 113 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1088 mm | 1105 mm | 1121 mm | 1142 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 730 mm | 748 mm | 758 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview

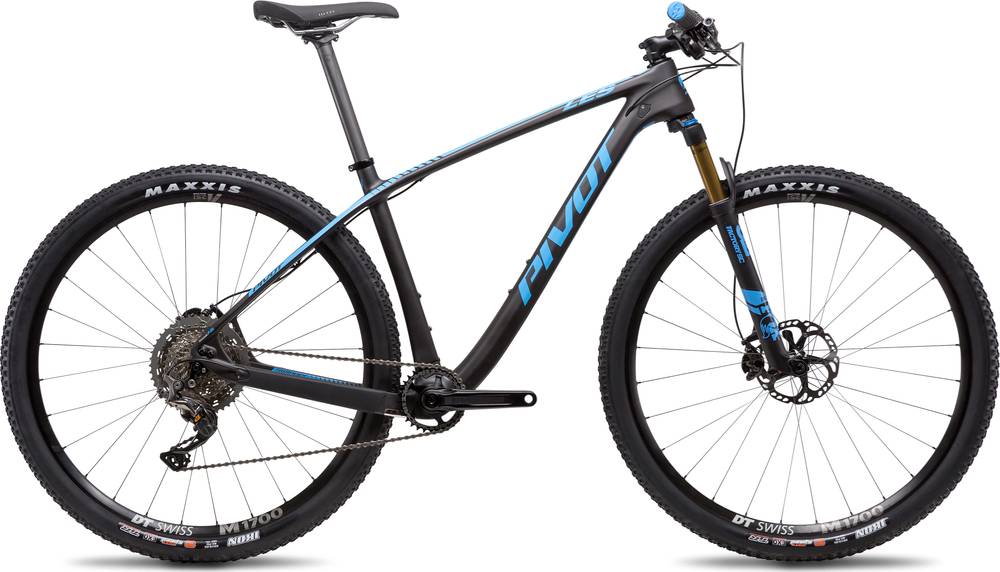

LES Race X01 is a Pivot Les model. Pivot launched 126 bikes of this model so far. Take a sneak peek at all Pivot Les bikes models from 2019, by clicking here.
Model range prices
Pivot LES 27.5 Race XT 2019 is the most economical model, with a starting price of 3799$. Pivot LES SL Team XX1 AXS 2019 on the other hand costs 8199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Pivot LES Race X01 price was 4299$. In conclusion, this bike price is 125.67% higher than the price of the average Crosscountry bike.
LES Race X01 components
Fork
Pivot LES Race X01 2019 bike is equipped with the Fox Performance Float 32 fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the LES Race X01 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The LES Race X01 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Pivot LES Race X01 bike has 4 sizes, in the range of 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
