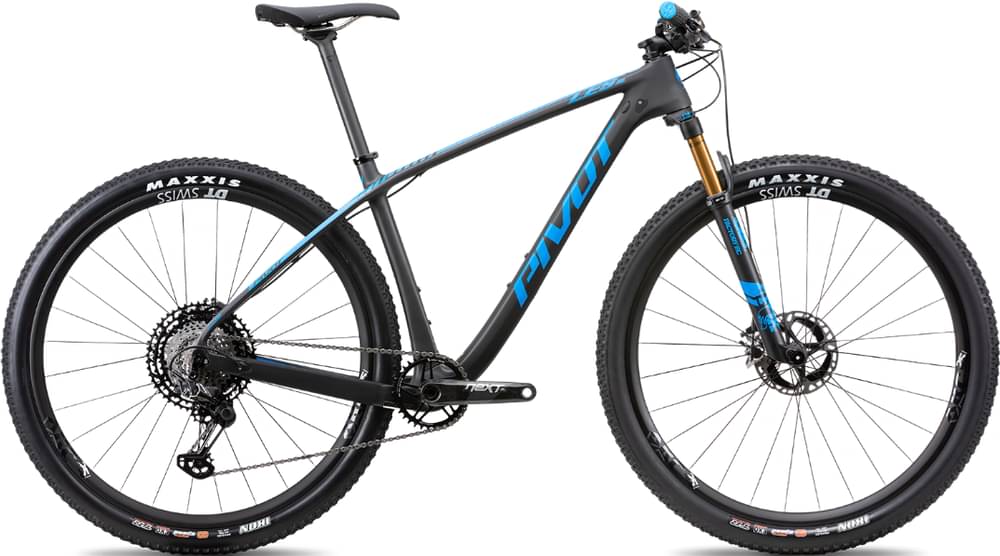

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES SL
Suspension Fork
Fox Performance Stepcast 32 29", 44mm offset, GRIP - 100mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS 12-Speed
Shift Levers
Shimano SLX M7100 ISPEC EV 12-Speed
Cassette
Shimano SLX M7100 10-51t
Crank
Race Face Ride 32t
Chain
Shimano CN-M7100 12-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 25mm - 29" 15x110 F/12x148 R
Tires
Maxxis Ikon 29" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ikon 29" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPI
Brakes
Brakes
Shimano SLX M7100 2-piston
Disk Rotors
Shimano SLX 6-bolt - 160mm Shimano SLX 6-bolt - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Race Volt (Narrow Width)
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.47 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm | 307 mm |
| Stack | 615 mm | 619 mm | 637 mm | 657 mm |
| Reach | 402 mm | 420 mm | 429 mm | 449 mm |
| Top Tube Length | 588 mm | 613 mm | 628 mm | 654 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 451 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.3 ° | 69.5 ° | 69.5 ° | 70 ° |
| Head Tube Length | 98 mm | 102 mm | 113 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1088 mm | 1105 mm | 1121 mm | 1142 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 730 mm | 748 mm | 758 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
LES SL Race XT is part of the Pivot Les model. 126 bikes variations carry this model name so far. Take a sneak peek at all Pivot Les bikes models from 2021, by clicking here.
Model range prices
Pivot LES 27.5 Race XT 2021 is the cheapest bike model and costs 4199$. Pivot LES SL Team XX1 AXS 2021 is the most expensive one and costs 8899$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Pivot LES SL Race XT price was 4199$. In conclusion, this bike price is 120.42% more expensive than the price of the average Crosscountry bike.
LES SL Race XT components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The LES SL Race XT 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The LES SL Race XT has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
