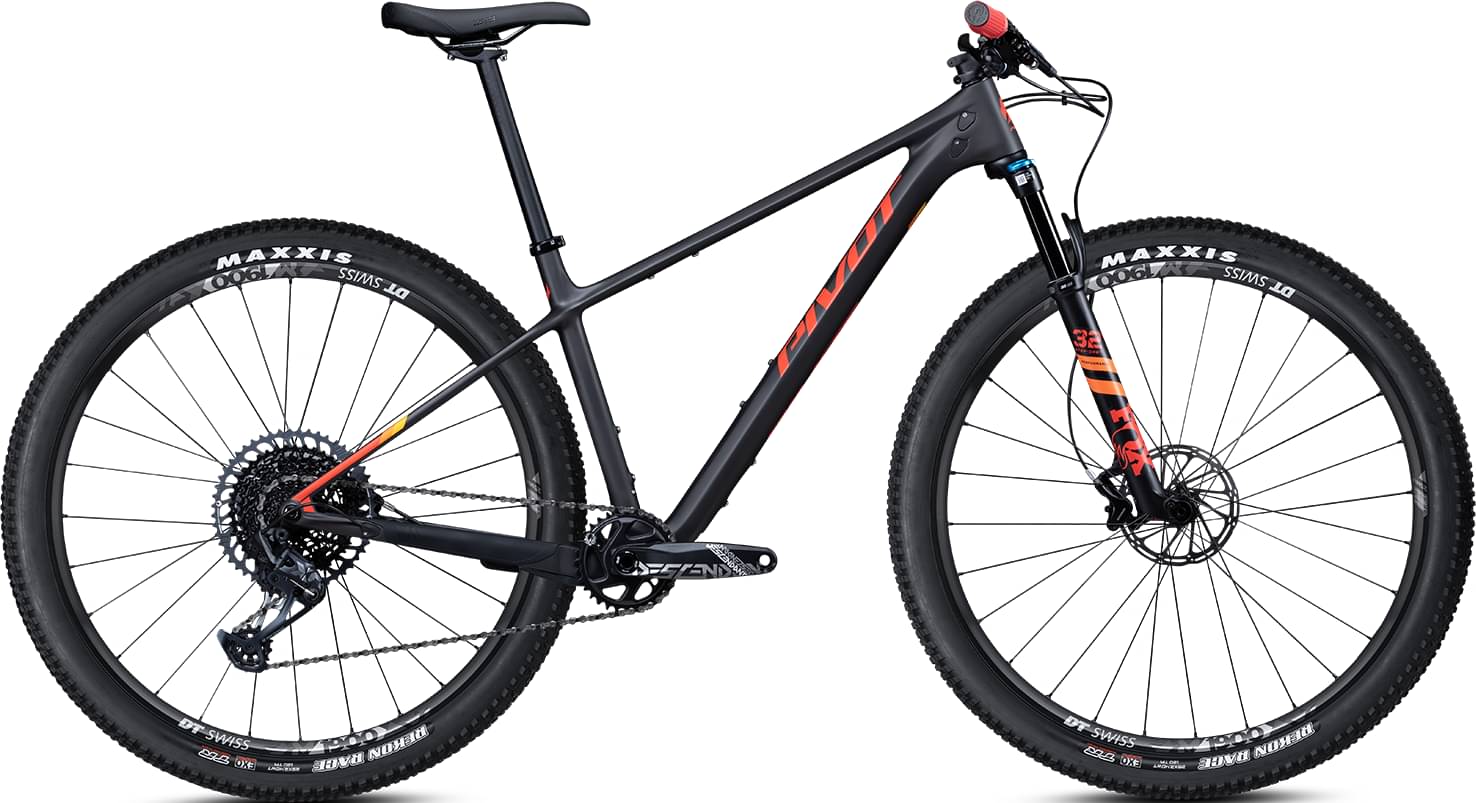

Pivot LES SL Ride GX/X01 2022
2022 Mountain
Estimate price |
6,135$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset X01 Eagle, GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LES SL
Suspension Fork
Fox Performance Stepcast 32 29", 44mm offset, GRIP - 100mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM GX Eagle 12-Speed
Cassette
SRAM XG-1275 10-52t
Crank
SRAM Descendant 7k Eagle DUB 32t
Chain
SRAM GX Eagle 12-Speed
Wheels
Rims
DT Swiss X1900 w/ DT Swiss 370 hub, 25mm - 29"
15x110 F/12x148 R
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Brakes
Brakes
SRAM Level TL 4-piston
Disk Rotors
SRAM Centerline 6-bolt - 160mm
SRAM Centerline 6-bolt - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Race Volt (Narrow Width)
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.42 mm | 1.35 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 665 mm | 682 mm | 711 mm | 729 mm | 761 mm |
| Rake | 44 mm | 44 mm | 48 mm | 44 mm | 44 mm |
| Trail | 104 mm | 100 mm | 96 mm | 100 mm | 100 mm |
| Stack | 600 mm | 607 mm | 607 mm | 626 mm | 644 mm |
| Reach | 406 mm | 426 mm | 451 mm | 466 mm | 491 mm |
| Top Tube Length | 571 mm | 598 mm | 626 mm | 644 mm | 674 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 355 mm | 395 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1092 mm | 1109 mm | 1138 mm | 1156 mm | 1189 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 630 mm | 644 mm | 663 mm | 677 mm | 677 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
LES SL Ride GX/X01 belongs to the Pivot Les model. Pivot released 126 bikes variations of this model so far. Take a sneak peek at all Pivot Les bikes models from 2022, by clicking here.
Model range prices
Pivot LES 27.5 Ride SLX/XT 2022 is the most affordable bike of this model and has a price of 4199$. On the other hand, Pivot LES SL Team XX1 AXS 2022, is the most expensive and costs 10033$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5679$. If we compare this with the average Crosscountry bike cost we notice that the price is 198.11% more expensive.
LES SL Ride GX/X01 components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Pivot LES SL Ride GX/X01 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot LES SL Ride GX/X01 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
