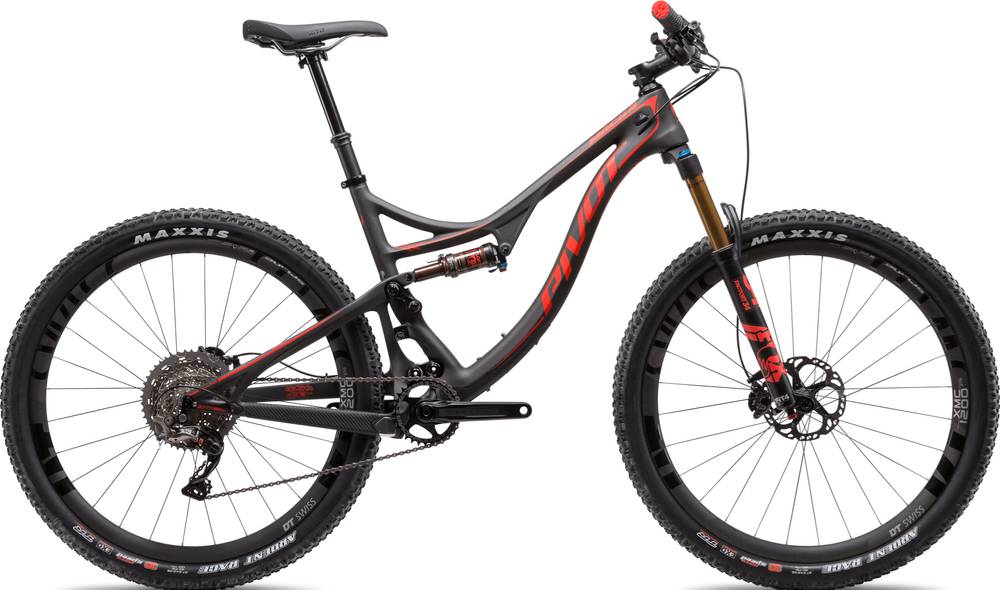

Pivot Mach 4 Carbon Pro XT/XTR 2019
2019 Mountain
Estimate price |
5,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 162cm
SM
162cm - 172cm
MD
172cm - 180cm
LG
180cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 Carbon
Suspension Fork
Fox Factory 34 27.5", 44mm offset, FIT4 - 130mm
Rear Shock
Fox Factory Float DPS
Drivetrain
Rear Derailleur
Shimano XTR GS 11-Speed
Shift Levers
Shimano XT M8000 11-Speed
Cassette
Shimano XT M-8000 11-46t
Crank
Race Face Aeffect SL 30t
Chain
Shimano HG700 11-Speed
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub, 25mm - 27.5"
Tires
Maxxis Ardent Race 27.5" x 2.35" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ardent Race 27.5" x 2.35" TR, 3C, EXO, MAXXSPEED
Brakes
Brakes
Shimano XT M-8000
Disk Rotors
Shimano XT CenterLock - 160mmShimano XT CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail - 75mm
Handlebar
Phoenix Team Low Rise Carbon - 740mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro Volt
Seatpost
KS LEV 100mm (XS, SM), Fox Transfer 125mm (MD, LG, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | LL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.35 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 552 mm | 571 mm | 577 mm | 589 mm | 599 mm |
| Reach | 394 mm | 408 mm | 426 mm | 441 mm | 466 mm |
| Top Tube Length | 557 mm | 585 mm | 605 mm | 624 mm | 647 mm |
| Seat Tube Angle | 73.8 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.6 ° |
| Seat Tube Length | 368 mm | 406 mm | 445 mm | 483 mm | mm |
| Head Tube Angle | 68.5 ° | 69.2 ° | 69.2 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 85 mm | 102 mm | 108 mm | 120 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1074 mm | 1087 mm | 1107 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 664 mm | 669 mm | 671 mm | 688 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 162 cm | 172 cm | 180 cm | cm |
| Rider Max Height | 162 cm | 172 cm | 180 cm | 188 cm | cm |
About this model
Mach 4 Carbon Pro XT/XTR belongs to the Pivot Mach 4 model. 180 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Pivot Mach 4 Carbon Race XT 2019 is the most economical model, with a starting price of 4799$. Pivot Mach 4 Carbon Team XX1 2019 on the other hand costs 8599$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5799$. If we compare this with the average Trail bike cost we notice that the price is 109.96% more expensive.
Mach 4 Carbon Pro XT/XTR components
Fork
The Mach 4 Carbon Pro XT/XTR comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Mach 4 Carbon Pro XT/XTR model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 4 Carbon Pro XT/XTR is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
