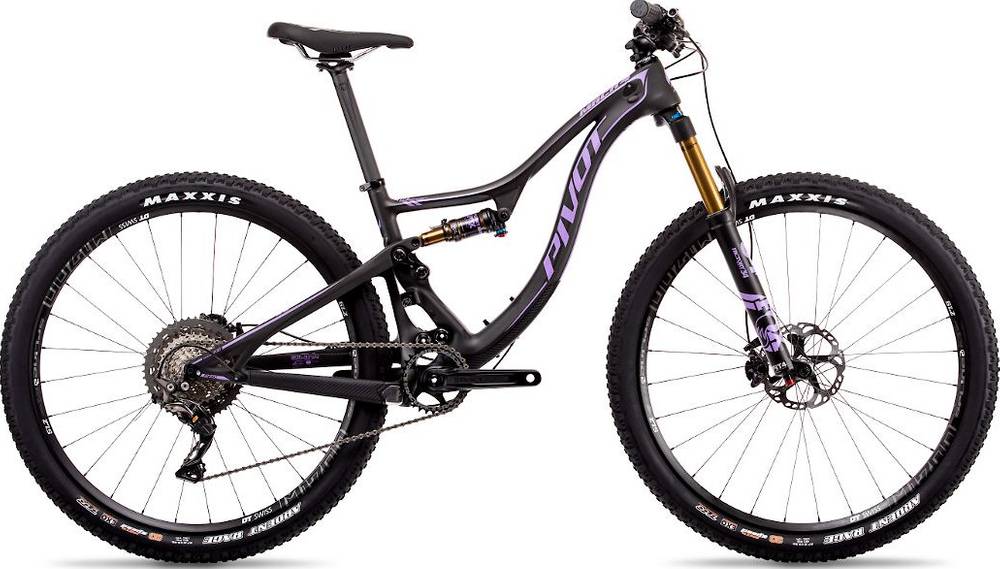

Pivot Mach 4 Carbon RACE XT 1x 2018
2018 Mountain
Estimate price |
4,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 115mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Performance, Boost
Rear Shock
FOX Float Factory DPS, Kashima
Drivetrain
Rear Derailleur
Shimano XT, 11-speed GS
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano SLX M7000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Sun Ringle Charger Comp, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
Sun Ringle Charger Comp, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
Sun Ringle Charger Comp
Spokes
Sun Ringle Charger Comp
Tires
Front: Maxxis High Roller II, 2.3” TR EXO 3C MaxxTerra, Rear: Maxxis Ardent Race, 2.35" TR 3C EXO MaxxSpeed 120 TPI
Brakes
Brakes
Shimano SLX M7000
Brake Levers
Shimano SLX M7000
Cockpit
Stem
Phoenix Team XC, 35mm clamp, 60mm length (XS, S), 75mm length (M, L, L/Long)
Handlebar
Phoenix Race, aluminum, 35mm clamp, 750mm width
Grips
Phoenix Team Padloc
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Race
Seatpost
Phoenix Race, aluminum (FOX Transfer upgrade available)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.35 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 325.1 mm | 325.1 mm | 325.1 mm | 325.1 mm | 325.1 mm |
| Stack | 552.2 mm | 571.3 mm | 577.4 mm | 589.3 mm | 599.2 mm |
| Reach | 394.2 mm | 408.2 mm | 426.2 mm | 441.2 mm | 466.4 mm |
| Top Tube Length | 557.3 mm | 585.2 mm | 605.6 mm | 624.6 mm | 647.5 mm |
| Seat Tube Angle | 73.8 ° | 73 ° | 73 ° | 73 ° | 73.4 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 444.5 mm | 482.6 mm | 508 mm |
| Head Tube Angle | 68.5 ° | 69.2 ° | 69.2 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 85.1 mm | 101.6 mm | 107.9 mm | 119.9 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1074 mm | 1087 mm | 1107 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 664 mm | 669 mm | 671 mm | 688 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm | 188 cm |
Model Overview
Mach 4 Carbon RACE XT 1x belongs to the Pivot Mach 4 model. Pivot launched 180 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Pivot Mach 4 Carbon RACE XT 1x 2018 has a starting price of 4599$. Pivot Mach 4 Carbon TEAM XTR Di2 2x 2018 on the other hand is the most expensive at 9499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Pivot Mach 4 Carbon RACE XT 1x price was 4599$. Comparing this to the average Crosscountry bike price, we see that the price is 141.42% higher.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the FOX Float Factory DPS model, with a travel of 115mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Mach 4 Carbon RACE XT 1x bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 4 Carbon RACE XT 1x has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
