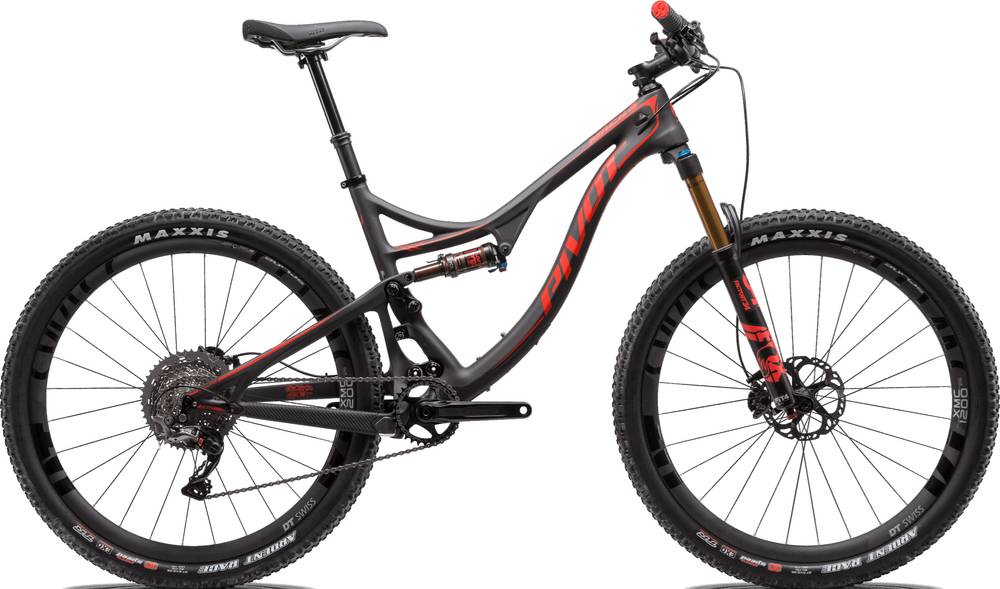

Pivot Mach 4 Carbon Race XT 2020
2020 Mountain
Estimate price |
4,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 162cm
SM
162cm - 172cm
MD
172cm - 180cm
LG
180cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 Carbon
Suspension Fork
Fox Performance 34 27.5", 44mm offset, GRIP - 130mm
Rear Shock
Fox Factory Float DPS
Drivetrain
Rear Derailleur
Shimano XT SGS 12-Speed
Shift Levers
Shimano SLX M7100 12-Speed
Cassette
Shimano SLX M7100 10-51t
Crank
Race Face Ride 32t
Chain
Shimano CN-M7100 12-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 25mm -27.5”
Tires
Maxxis Ardent Race 27.5" x 2.35" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ardent Race 27.5" x 2.35" TR, 3C, EXO, MAXXSPEED
Brakes
Brakes
Shimano SLX M7100 2-piston
Disk Rotors
Shimano SLX 6-bolt - 160mmShimano SLX 6-bolt - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Race Low Rise Aluminum
Grips
Phoenix Factory Lock-On
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Race Volt
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | LL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.35 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 552 mm | 571 mm | 577 mm | 589 mm | 599 mm |
| Reach | 394 mm | 408 mm | 426 mm | 441 mm | 466 mm |
| Top Tube Length | 557 mm | 585 mm | 605 mm | 624 mm | 647 mm |
| Seat Tube Angle | 73.8 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.6 ° |
| Seat Tube Length | 368 mm | 406 mm | 445 mm | 483 mm | mm |
| Head Tube Angle | 68.5 ° | 69.2 ° | 69.2 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 85 mm | 102 mm | 108 mm | 120 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1074 mm | 1087 mm | 1107 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 664 mm | 669 mm | 671 mm | 688 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 162 cm | 172 cm | 180 cm | cm |
| Rider Max Height | 162 cm | 172 cm | 180 cm | 188 cm | cm |
About this model
Mach 4 Carbon Race XT belongs to the Pivot Mach 4 model. Pivot released 180 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Pivot Mach 4 Carbon Race XT 2020 is the cheapest bike model and costs 4899$. Pivot Mach 4 SL Team XX1 AXS w/ 120mm Fork & Fox Live Valve 2020 is the most expensive one and costs 11999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Pivot Mach 4 Carbon Race XT price was 4899$. If we compare this with the average Trail bike cost we notice that the price is 77.37% higher.
Mach 4 Carbon Race XT components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Mach 4 Carbon Race XT are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 4 Carbon Race XT is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
