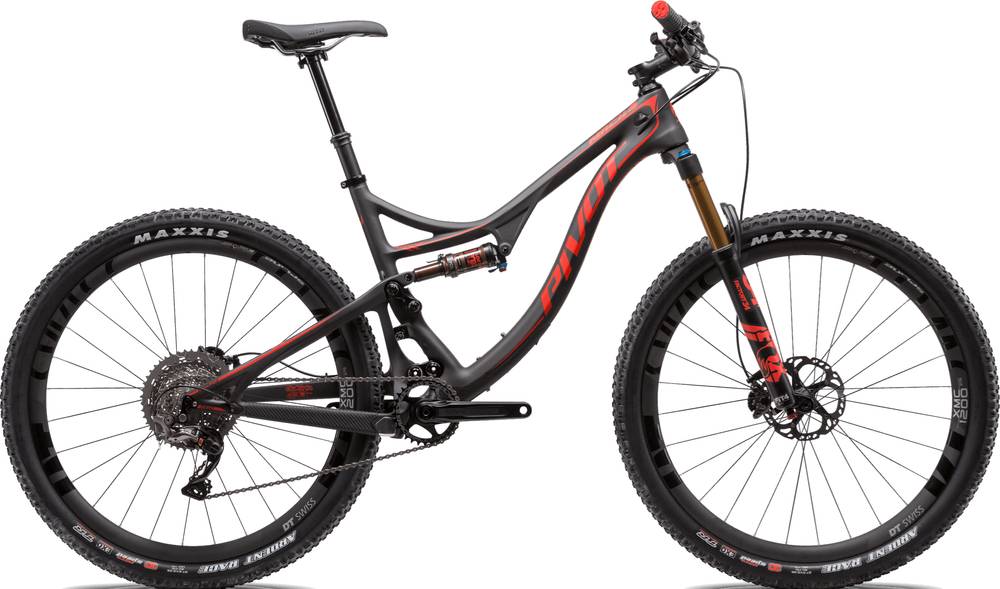

Pivot Mach 4 Carbon Team Frame Kit 2019
2019 Mountain
Estimate price |
4,499$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Fork Fox Factory Float 34 -
Suspension Full
Sizing
Recommended size guide.
XS
147cm - 162cm
SM
162cm - 172cm
MD
172cm - 180cm
LG
180cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 Carbon
Suspension Fork
Fox Factory 34 27.5", 44mm offset, FIT4 - 130mm
Rear Shock
Fox Factory Float DPS
Cockpit
Headset
Pivot Precision Sealed Cartridge - Race
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | LL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.35 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 552 mm | 571 mm | 577 mm | 589 mm | 599 mm |
| Reach | 394 mm | 408 mm | 426 mm | 441 mm | 466 mm |
| Top Tube Length | 557 mm | 585 mm | 605 mm | 624 mm | 647 mm |
| Seat Tube Angle | 73.8 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.6 ° |
| Seat Tube Length | 368 mm | 406 mm | 445 mm | 483 mm | mm |
| Head Tube Angle | 68.5 ° | 69.2 ° | 69.2 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 85 mm | 102 mm | 108 mm | 120 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1074 mm | 1087 mm | 1107 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 664 mm | 669 mm | 671 mm | 688 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 162 cm | 172 cm | 180 cm | cm |
| Rider Max Height | 162 cm | 172 cm | 180 cm | 188 cm | cm |
About this model
Mach 4 Carbon Team Frame Kit is a Pivot Mach 4 model. Pivot released 180 frames variations of this model so far. Take a sneak peek at all Pivot Mach 4 frames models from 2019, by clicking here.
Model range prices
Pivot Mach 4 Carbon Team Frame 2019 is the most economical model, with a starting price of 3399$. Pivot Mach 4 Carbon Frame Kit 2019 on the other hand costs 4499$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry frames
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4499$. Doing a quick comparison, we notice that Mach 4 Carbon Team Frame Kit price is 166.37% higher than the average cost of a Crosscountry frame.
Overview of components
Fork
This frame has the Fox Factory Float 34 fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
