Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 100mm -
Suspension Full
Sizing
Recommended size guide.
XS
147cm - 164cm
XS
147cm - 164cm
SM
161cm - 174cm
SM
161cm - 174cm
MD
171cm - 182cm
MD
171cm - 182cm
LG
179cm - 189cm
LG
179cm - 189cm
XL
187cm - 200cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Rear Shock
Fox Factory DPS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.49 mm | 1.41 mm | 1.48 mm | 1.36 mm | 1.42 mm | 1.33 mm | 1.39 mm | 1.3 mm | 1.35 mm |
| Bottom Bracket Height | 325 mm | 334 mm | 325 mm | 334 mm | 325 mm | 334 mm | 325 mm | 334 mm | 325 mm | 334 mm |
| Stack | 587 mm | 596 mm | 597 mm | 606 mm | 609 mm | 618 mm | 619 mm | 629 mm | 638 mm | 648 mm |
| Reach | 412 mm | 399 mm | 422 mm | 409 mm | 447 mm | 434 mm | 467 mm | 454 mm | 492 mm | 479 mm |
| Top Tube Length | 578 mm | 582 mm | 591 mm | 595 mm | 620 mm | 623 mm | 643 mm | 647 mm | 673 mm | 678 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 74.5 ° | 73.5 ° | 74.5 ° | 73.5 ° | 74.5 ° | 73.5 ° | 74.5 ° | 73.5 ° |
| Seat Tube Length | 356 mm | 356 mm | 394 mm | 394 mm | 419 mm | 419 mm | 457 mm | 457 mm | 502 mm | 502 mm |
| Head Tube Angle | 68.5 ° | 67.5 ° | 68.5 ° | 67.5 ° | 68.5 ° | 67.5 ° | 68.5 ° | 67.5 ° | 68.5 ° | 67.5 ° |
| Head Tube Length | 85 mm | 85 mm | 95 mm | 95 mm | 108 mm | 108 mm | 119 mm | 119 mm | 140 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1100 mm | 1110 mm | 1113 mm | 1123 mm | 1143 mm | 1153 mm | 1167 mm | 1177 mm | 1200 mm | 1210 mm |
| Bottom Bracket Drop | 49 mm | 40 mm | 49 mm | 40 mm | 49 mm | 40 mm | 49 mm | 40 mm | 49 mm | 40 mm |
| Standover Height | 620 mm | 630 mm | 659 mm | 671 mm | 691 mm | 703 mm | 694 mm | 706 mm | 718 mm | 729 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 189 cm | 200 cm | 200 cm |
Model Overview

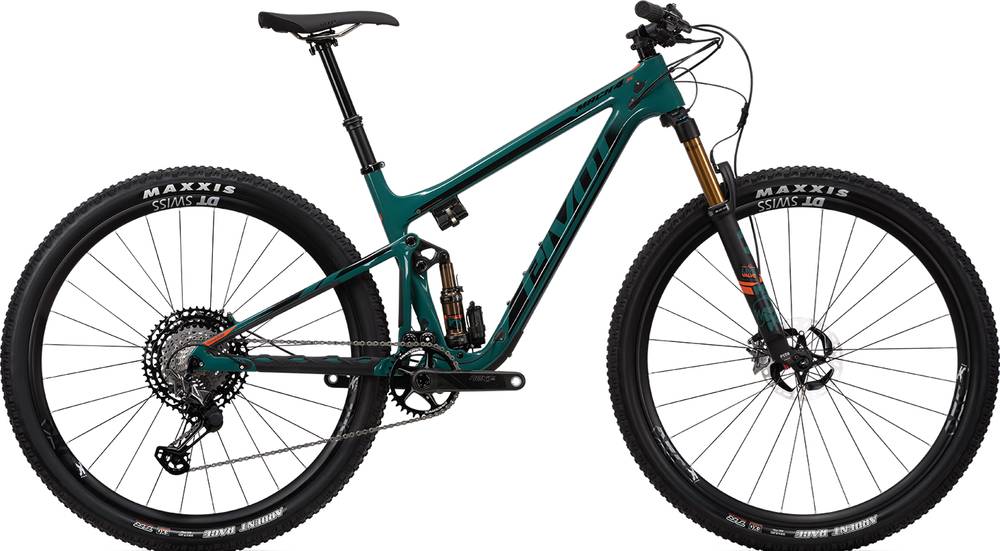

Mach 4 SL Frame belongs to the Pivot Mach 4 model. Pivot released 180 frames variations of this model so far. You can easily view all of the Pivot Mach 4 frames models from 2021, here.
Model range prices
Pivot Mach 4 SL Frame 2021 is the most economical model, with a starting price of 3899$. Pivot Mach 4 SL Frame Kit w/ Fox Live Valve 2021 on the other hand costs 7299$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry frames
If you want an acceptable Crosscountry frame you should know that the average price is 1689$. However, you could also get a good Crosscountry frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3899$. Doing a quick comparison, we notice that Mach 4 SL Frame price is 130.85% higher than the average cost of a Crosscountry frame.
Mach 4 SL Frame components
Rear Shock
The shock that’s installed on this frame is Fox Factory DPS, with a travel distance of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
This frame is available in 10 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
