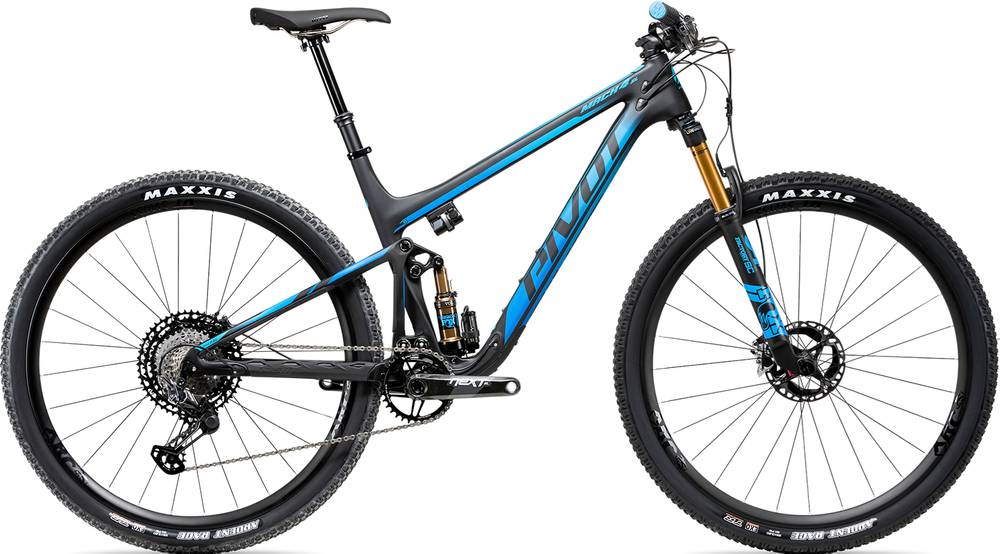

Pivot Mach 4 SL Frame Kit 2020
2020 Mountain
Estimate price |
4,599$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Fork Fox Factory Float 34 -
Suspension Full
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast 34 29" w/ Remote, 44mm offset - 120mm
Rear Shock
Fox Factory DPS w/ Remote
Cockpit
Headset
Pivot Precision Sealed Integrated Cartridge
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.48 mm | 1.42 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Stack | 596 mm | 606 mm | 618 mm | 629 mm | 648 mm |
| Reach | 399 mm | 409 mm | 434 mm | 454 mm | 479 mm |
| Top Tube Length | 582 mm | 595 mm | 623 mm | 647 mm | 678 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1110 mm | 1123 mm | 1153 mm | 1177 mm | 1210 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 630 mm | 671 mm | 703 mm | 706 mm | 729 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 4 SL Frame Kit is a Pivot Mach 4 model. Pivot launched 180 frames of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Pivot Mach 4 Carbon Frame 2020 is the most affordable frame of this model and has a price of 3399$. On the other hand, Pivot Mach 4 SL Frame Kit w/ Fox Live Valve 2020, is the most expensive and costs 6599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry frames average price
According to our calculations, the average cost of a Crosscountry frame that is reliable is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 4599$. If we compare this with the average Crosscountry frame cost we notice that the price is 172.29% higher.
Mach 4 SL Frame Kit components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Sizes
Pivot Mach 4 SL Frame Kit frame has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
