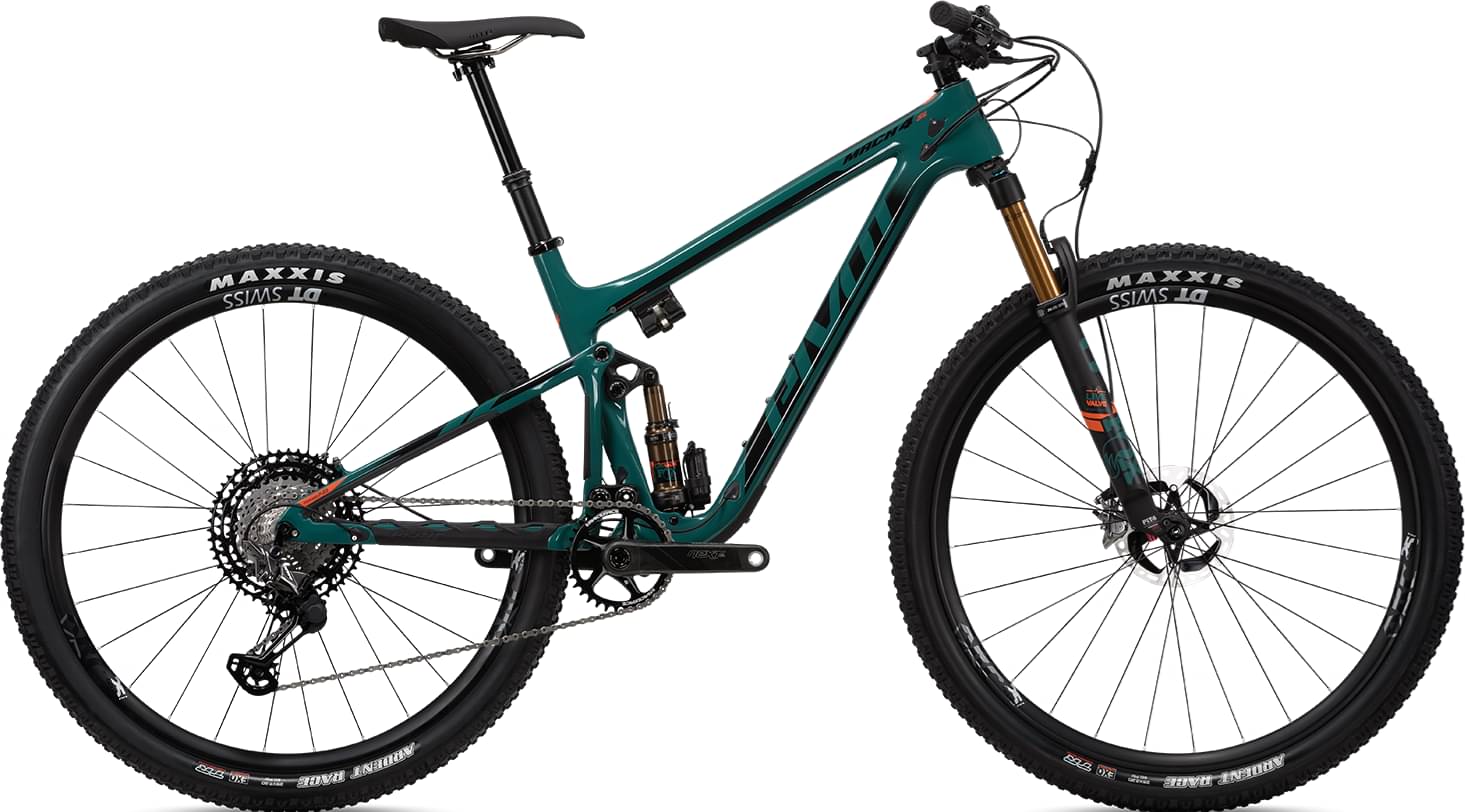

Pivot Mach 4 SL Pro X01 w/ 120mm Fork & Fox Live Valve 2022
2022 Mountain
Estimate price |
12,214$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast Live 34 29”, 44mm offset, FIT LIVE - 120mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 10-52t
Crank
SRAM X01 Eagle DUB 34t
Chain
SRAM X01 Eagle 12-Speed
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub & 36t Star Ratchet 25mm - 29" 15x110 F/12x148 R
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPIMaxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Brakes
Brakes
SRAM Level TLM 2-piston
Disk Rotors
SRAM Centerline CenterLock - 160mmSRAM Centerline CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Pro Volt (Narrow Width)
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM-LG), 150mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.48 mm | 1.42 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Stack | 596 mm | 606 mm | 618 mm | 629 mm | 648 mm |
| Reach | 399 mm | 409 mm | 434 mm | 454 mm | 479 mm |
| Top Tube Length | 582 mm | 595 mm | 623 mm | 647 mm | 678 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1110 mm | 1123 mm | 1153 mm | 1177 mm | 1210 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 630 mm | 671 mm | 703 mm | 706 mm | 729 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 4 SL Pro X01 w/ 120mm Fork & Fox Live Valve is part of the Pivot Mach 4 model. Pivot released 180 bikes variations of this model so far. You can easily view all of the Pivot Mach 4 bikes models from 2022, here.
Model range prices
Pivot Mach 4 SL Race XT 2022 is the most affordable bike of this model and has a price of 6370$. On the other hand, Pivot Mach 4 SL Team XX1 AXS w/ 120mm Fork & Fox Live Valve 2022, is the most expensive and costs 14492$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Pivot released this model in 2022, its price was 11307$. In conclusion, this bike price is 493.54% higher than the price of the average Crosscountry bike.
Overview of components
Fork
The Mach 4 SL Pro X01 w/ 120mm Fork & Fox Live Valve comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Pivot Mach 4 SL Pro X01 w/ 120mm Fork & Fox Live Valve bike has the Fox Factory Live Valve model installed, and has a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Mach 4 SL Pro X01 w/ 120mm Fork & Fox Live Valve bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Mach 4 SL Pro X01 w/ 120mm Fork & Fox Live Valve. Therefore, climbing or descending will be a breeze.
