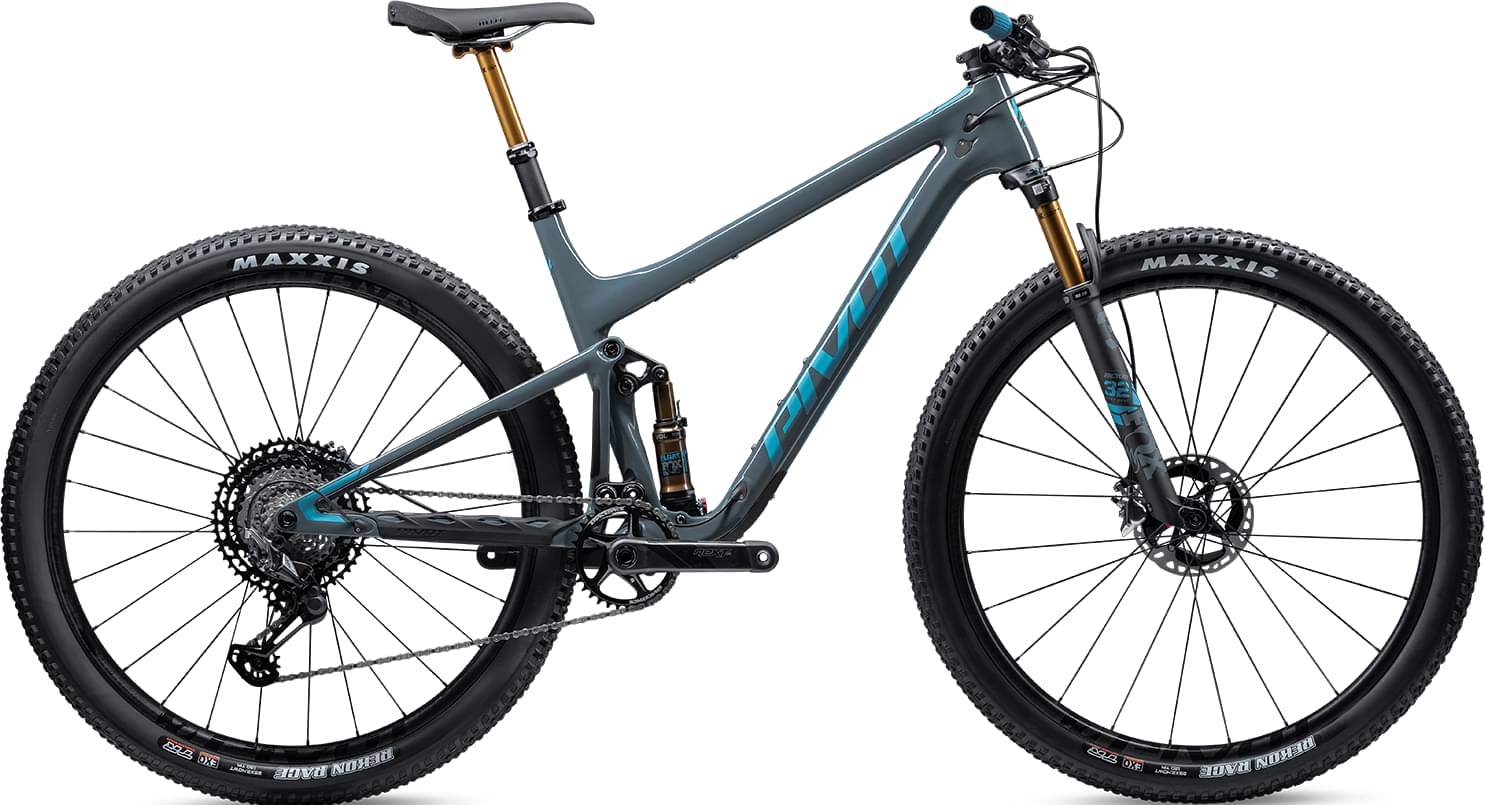

Pivot Mach 4 SL Team XTR 2022
2022 Mountain
Estimate price |
11,468$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast 32 29" w/ Remote, 44mm offset, FIT4 - 100mm
Rear Shock
Fox Factory DPS
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XTR M9100 ISPEC EV 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next SL 34t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29"
15x110 F/12x148 R
Tires
Maxxis Rekon Race 29" x 2.4" TR, EXO, 120 TPI
Maxxis Rekon Race 29" x 2.4" TR, EXO, 120 TPI
Brakes
Brakes
Shimano XTR M9100 2-piston
Disk Rotors
Shimano XTR CenterLock - 160mm
Shimano XTR CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Team Volt (Narrow Width)
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM-LG), 150mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.41 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 587 mm | 597 mm | 609 mm | 619 mm | 638 mm |
| Reach | 412 mm | 422 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 578 mm | 591 mm | 620 mm | 643 mm | 673 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1100 mm | 1113 mm | 1143 mm | 1167 mm | 1200 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Standover Height | 620 mm | 659 mm | 691 mm | 694 mm | 718 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 4 SL Team XTR belongs to the Pivot Mach 4 model. There are 180 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Pivot Mach 4 SL Race XT 2022 is the cheapest bike model and costs 6370$. Pivot Mach 4 SL Team XX1 AXS w/ 120mm Fork & Fox Live Valve 2022 is the most expensive one and costs 14492$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 10617$. Doing a quick comparison, we notice that Mach 4 SL Team XTR price is 457.32% higher than the average cost of a Crosscountry bike.
Overview of components
Fork
The Mach 4 SL Team XTR comes factory-installed with the Fox Factory Float 32 fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Factory DPS rear shock model, which has a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Pivot Mach 4 SL Team XTR 2022, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mach 4 SL Team XTR has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Pivot Mach 4 SL Team XTR comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
