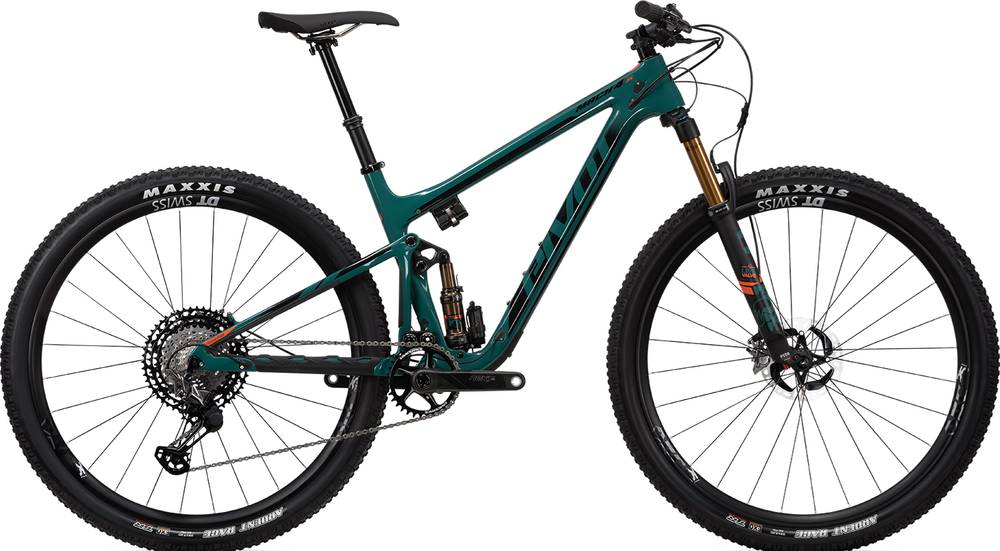

Pivot Mach 4 SL Team XTR w/ 120mm Fork 2021
2021 Mountain
Estimate price |
9,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast 34 29" w/ Remote, 44mm offset, FIT4 - 120mm
Rear Shock
Fox Factory DPS
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XTR M9100 ISPEC EV 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next SL 34t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x148 R
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPIMaxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Brakes
Brakes
Shimano XTR M9100 2-piston
Disk Rotors
Shimano XTR CenterLock - 160mmShimano XTR CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Team Volt (Narrow Width)
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM-LG), 150mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.48 mm | 1.42 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Stack | 596 mm | 606 mm | 618 mm | 629 mm | 648 mm |
| Reach | 399 mm | 409 mm | 434 mm | 454 mm | 479 mm |
| Top Tube Length | 582 mm | 595 mm | 623 mm | 647 mm | 678 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1110 mm | 1123 mm | 1153 mm | 1177 mm | 1210 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 630 mm | 671 mm | 703 mm | 706 mm | 729 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 4 SL Team XTR w/ 120mm Fork is part of the Pivot Mach 4 model. Pivot launched 180 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Pivot Mach 4 SL Race XT 2021 is the most affordable bike of this model and has a price of 5599$. On the other hand, Pivot Mach 4 SL Team XX1 AXS w/ 120mm Fork & Fox Live Valve 2021, is the most expensive and costs 12899$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 9199$. Comparing this to the average Crosscountry bike price, we see that the price is 382.89% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the Fox Factory DPS model, with a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Mach 4 SL Team XTR w/ 120mm Fork model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mach 4 SL Team XTR w/ 120mm Fork has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Mach 4 SL Team XTR w/ 120mm Fork. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
