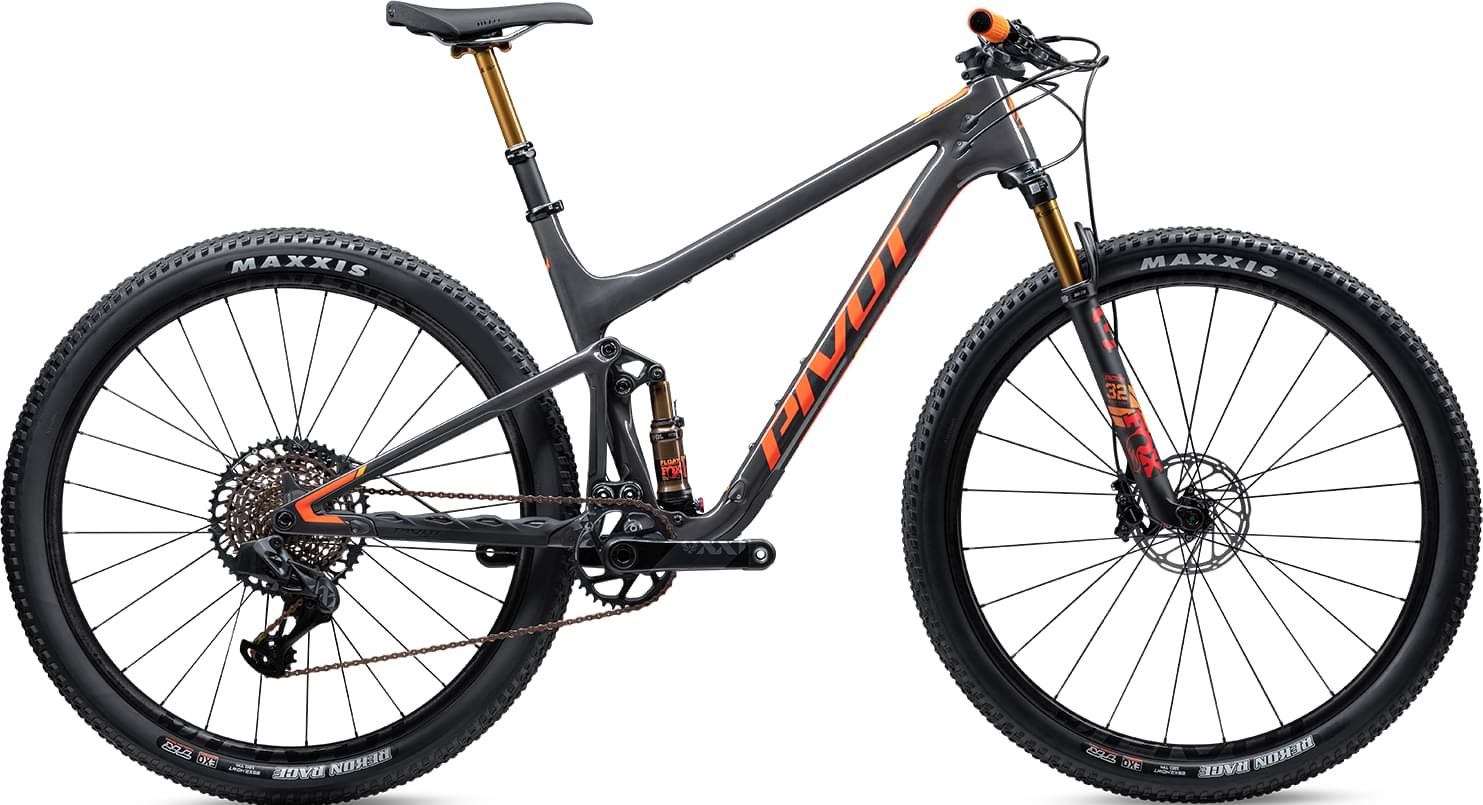

Pivot Mach 4 SL Team XX1 AXS 2022
2022 Mountain
Estimate price |
13,648$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast 32 29" w/ Remote, 44mm offset, FIT4 - 100mm
Rear Shock
Fox Factory DPS
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-52t
Crank
SRAM XX1 Eagle DUB SL 34t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29"
15x110 F/12x148 R
Tires
Maxxis Rekon Race 29" x 2.4" TR, EXO, 120 TPI
Maxxis Rekon Race 29" x 2.4" TR, EXO, 120 TPI
Brakes
Brakes
SRAM Level Ultimate 2-piston
Disk Rotors
SRAM Centerline CenterLock - 160mm
SRAM Centerline CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Team Volt (Narrow Width)
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM-LG), 150mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.41 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 587 mm | 597 mm | 609 mm | 619 mm | 638 mm |
| Reach | 412 mm | 422 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 578 mm | 591 mm | 620 mm | 643 mm | 673 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1100 mm | 1113 mm | 1143 mm | 1167 mm | 1200 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Standover Height | 620 mm | 659 mm | 691 mm | 694 mm | 718 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 4 SL Team XX1 AXS completes the Pivot Mach 4 model. 180 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Pivot Mach 4 SL Race XT 2022 is the cheapest bike model and costs 6370$. Pivot Mach 4 SL Team XX1 AXS w/ 120mm Fork & Fox Live Valve 2022 is the most expensive one and costs 14492$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 12634$. If we compare this with the average Crosscountry bike cost we notice that the price is 563.2% more expensive.
Mach 4 SL Team XX1 AXS components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the Fox Factory DPS model, with a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Mach 4 SL Team XX1 AXS 2022 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 4 SL Team XX1 AXS comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Pivot Mach 4 SL Team XX1 AXS bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
