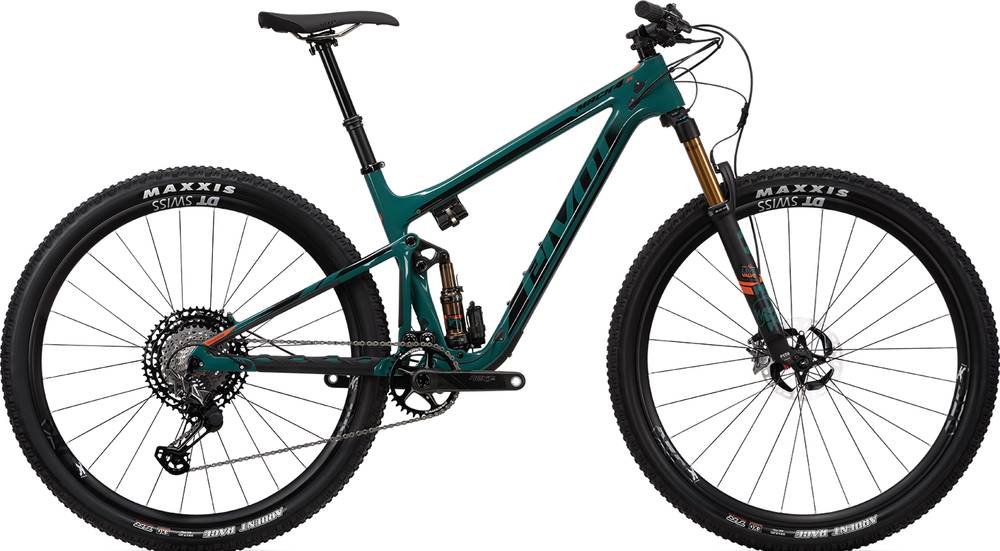

Pivot Mach 4 SL Team XX1 AXS w/ 100mm Fork & Fox Live Valve 2021
2021 Mountain
Estimate price |
12,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast Live 32 29", 44mm offset, FIT LIVE - 100mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-52t
Crank
SRAM XX1 Eagle DUB SL 34t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x148 R
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPIMaxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Brakes
Brakes
SRAM Level Ultimate 2-piston
Disk Rotors
SRAM Centerline CenterLock - 160mmSRAM Centerline CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Team Volt (Narrow Width)
Seatpost
Rock Shox Reverb AXS 100mm (XS), 125mm (SM-LG), 150mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.41 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 587 mm | 597 mm | 609 mm | 619 mm | 638 mm |
| Reach | 412 mm | 422 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 578 mm | 591 mm | 620 mm | 643 mm | 673 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1100 mm | 1113 mm | 1143 mm | 1167 mm | 1200 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Standover Height | 620 mm | 659 mm | 691 mm | 694 mm | 718 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 4 SL Team XX1 AXS w/ 100mm Fork & Fox Live Valve belongs to the Pivot Mach 4 model. There are 180 bikes that carry this model name. Take a sneak peek at all Pivot Mach 4 bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Pivot Mach 4 SL Race XT 2021 has a starting price of 5599$. Pivot Mach 4 SL Team XX1 AXS w/ 120mm Fork & Fox Live Valve 2021 on the other hand is the most expensive at 12899$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2021 and its price was 12899$. Doing a quick comparison, we notice that Mach 4 SL Team XX1 AXS w/ 100mm Fork & Fox Live Valve price is 577.11% higher than the average cost of a Crosscountry bike.
Overview of components
Fork
The Fox Factory Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Pivot Mach 4 SL Team XX1 AXS w/ 100mm Fork & Fox Live Valve bike has the Fox Factory Live Valve model installed, and has a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Mach 4 SL Team XX1 AXS w/ 100mm Fork & Fox Live Valve model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 4 SL Team XX1 AXS w/ 100mm Fork & Fox Live Valve has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Mach 4 SL Team XX1 AXS w/ 100mm Fork & Fox Live Valve comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Pivot model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
