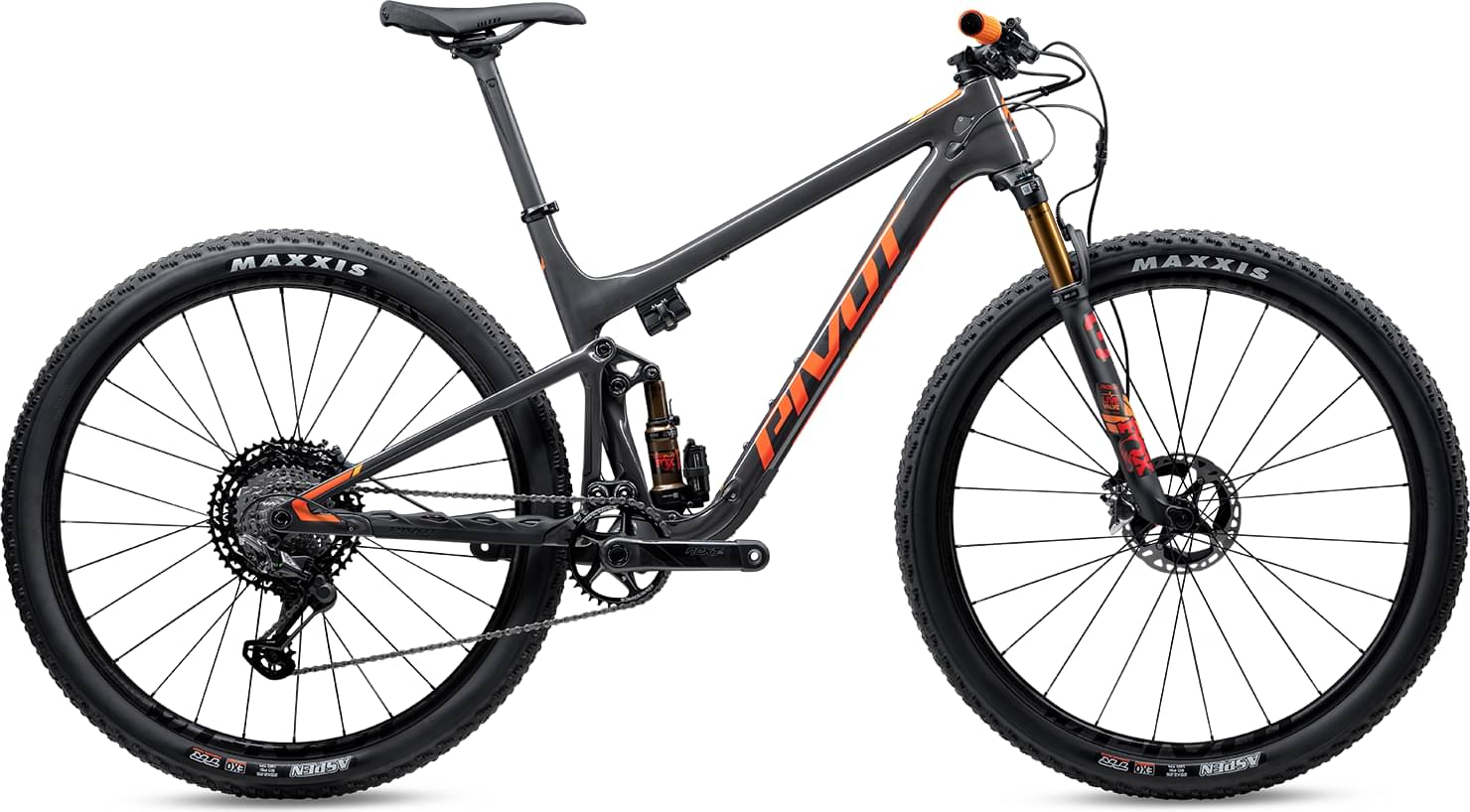

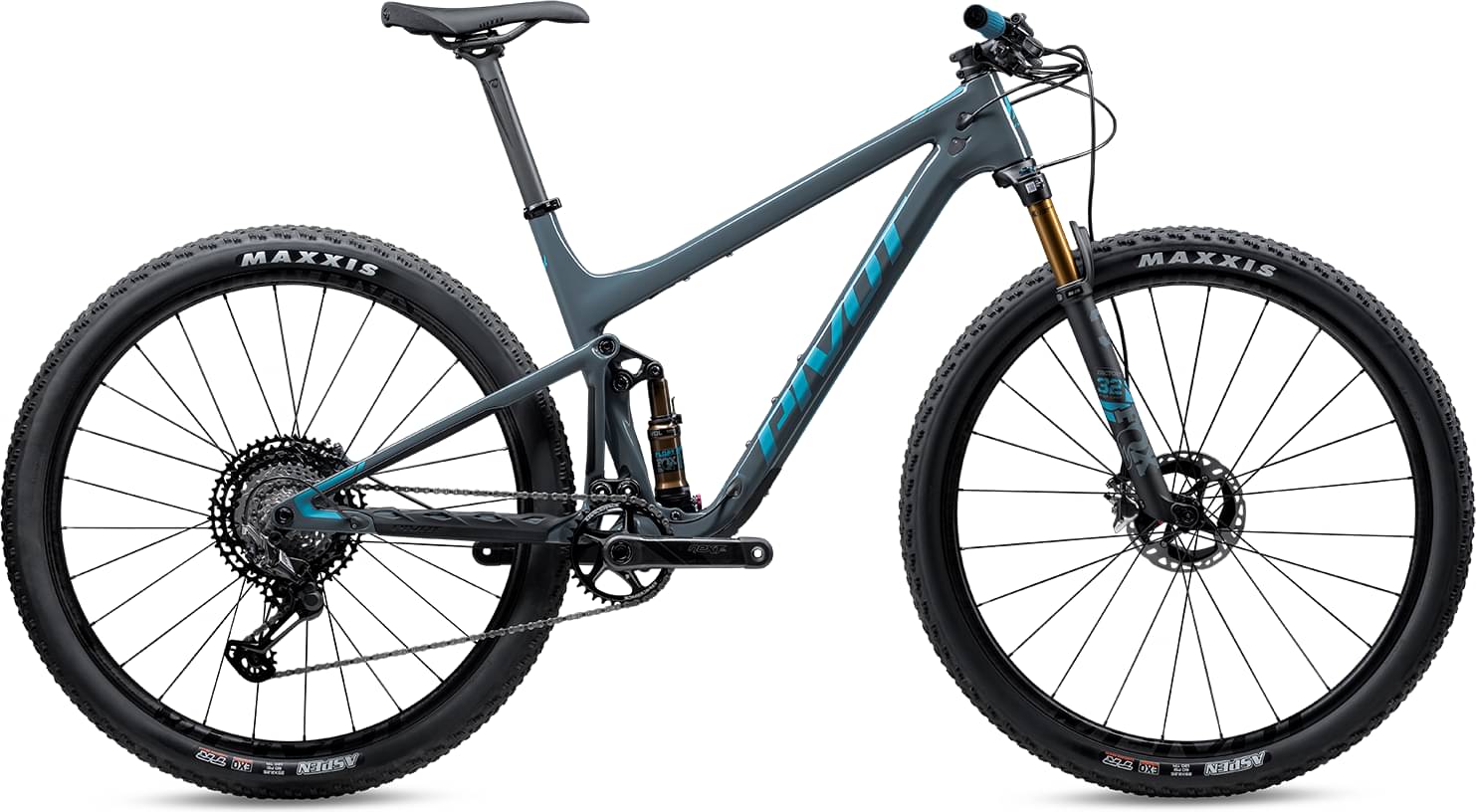

Pivot Mach 4 SL World Cup XTR 2023
2023 Mountain
Estimate price |
9,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XTR, Race Face -
Suspension Full, Electronic -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast 32 29" w/ Remote, 44mm offset, FIT4 - 100mm
Rear Shock
Fox Factory DPS
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XTR M9100 ISPEC EV 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next SL 34t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29"
15x110 F/12x148 R
Tires
Maxxis Aspen 29" x 2.25" TR, EXO, 120 TPI
Maxxis Aspen 29" x 2.25" TR, EXO, 120 TPI
Brakes
Brakes
Shimano XTR M9100 2-piston
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB World Cup Volt (Narrow Width) - carbon rails
Seatpost
Phoenix Team Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.41 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 587 mm | 597 mm | 609 mm | 619 mm | 638 mm |
| Reach | 412 mm | 422 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 578 mm | 591 mm | 620 mm | 643 mm | 673 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1100 mm | 1113 mm | 1143 mm | 1167 mm | 1200 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Standover Height | 620 mm | 659 mm | 691 mm | 694 mm | 718 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 4 SL World Cup XTR belongs to the Pivot Mach 4 model. Pivot released 180 bikes variations of this model so far. Take a sneak peek at all Pivot Mach 4 bikes models from 2023, by clicking here.
Model range prices
Pivot Mach 4 SL RIDE LIKE A PRO 2023 is the most economical model, with a starting price of 5599$. Pivot Mach 4 SL2 Team XX Eagle Transmission 2023 on the other hand costs 11599$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9499$. Doing a quick comparison, we notice that Mach 4 SL World Cup XTR price is 398.64% higher than the average cost of a Crosscountry bike.
Mach 4 SL World Cup XTR components
Fork
The Fox Factory Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Mach 4 SL World Cup XTR 2023 bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 4 SL World Cup XTR comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
