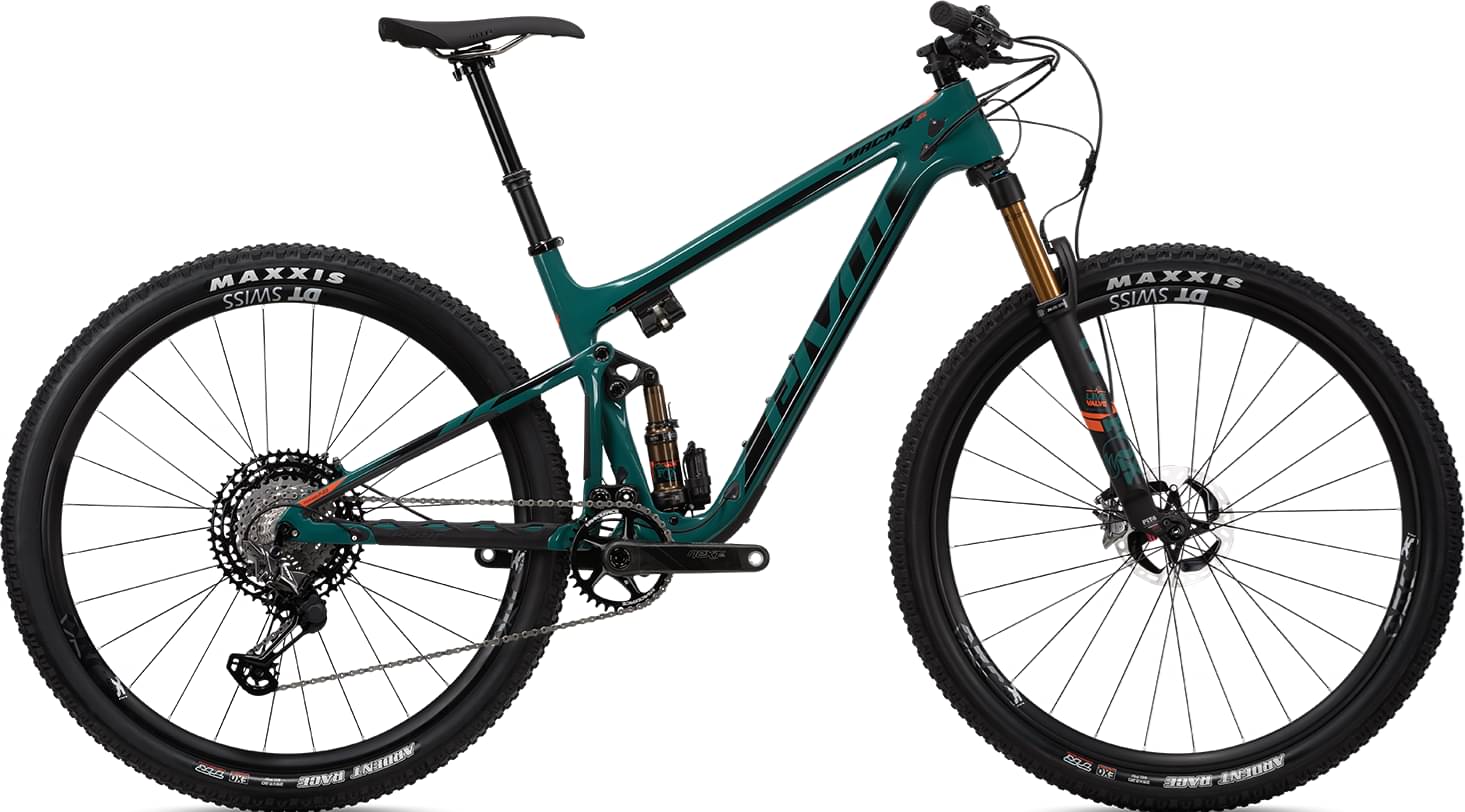

Pivot Mach 4 SL World Cup XX1 AXS w/ Fox Live Valve 2022
2022 Mountain
Estimate price |
15,425$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast Live 32 29", 44mm offset, FIT LIVE - 100mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-52t
Crank
SRAM XX1 Eagle DUB SL 34t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x148 R
Tires
Maxxis Aspen 29" x 2.25" TR, EXO, 120 TPIMaxxis Aspen 29" x 2.25" TR, EXO, 120 TPI
Brakes
Brakes
SRAM Level Ultimate 2-piston
Disk Rotors
SRAM Centerline CenterLock - 160mmSRAM Centerline CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB World Cup Volt (Narrow Width) - carbon rails
Seatpost
Phoenix Team Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.41 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 587 mm | 597 mm | 609 mm | 619 mm | 638 mm |
| Reach | 412 mm | 422 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 578 mm | 591 mm | 620 mm | 643 mm | 673 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1100 mm | 1113 mm | 1143 mm | 1167 mm | 1200 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Standover Height | 620 mm | 659 mm | 691 mm | 694 mm | 718 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 4 SL World Cup XX1 AXS w/ Fox Live Valve is part of the Pivot Mach 4 model. Pivot launched 180 bikes of this model so far. You can easily view all of the Pivot Mach 4 bikes models from 2022, here.
Model range prices
The most economical model, the Pivot Mach 4 SL Race XT 2022 has a starting price of 6370$. Pivot Mach 4 SL Team XX1 AXS w/ 120mm Fork & Fox Live Valve 2022 on the other hand is the most expensive at 14492$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Pivot released this model in 2022, its price was 14280$. In conclusion, this bike price is 649.61% more expensive than the price of the average Crosscountry bike.
Overview of components
Fork
The Mach 4 SL World Cup XX1 AXS w/ Fox Live Valve comes factory-installed with the Fox Factory Float 32 fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Factory Live Valve rear shock model, which has a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Mach 4 SL World Cup XX1 AXS w/ Fox Live Valve are the 29″ carbon type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mach 4 SL World Cup XX1 AXS w/ Fox Live Valve has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Pivot Mach 4 SL World Cup XX1 AXS w/ Fox Live Valve bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
