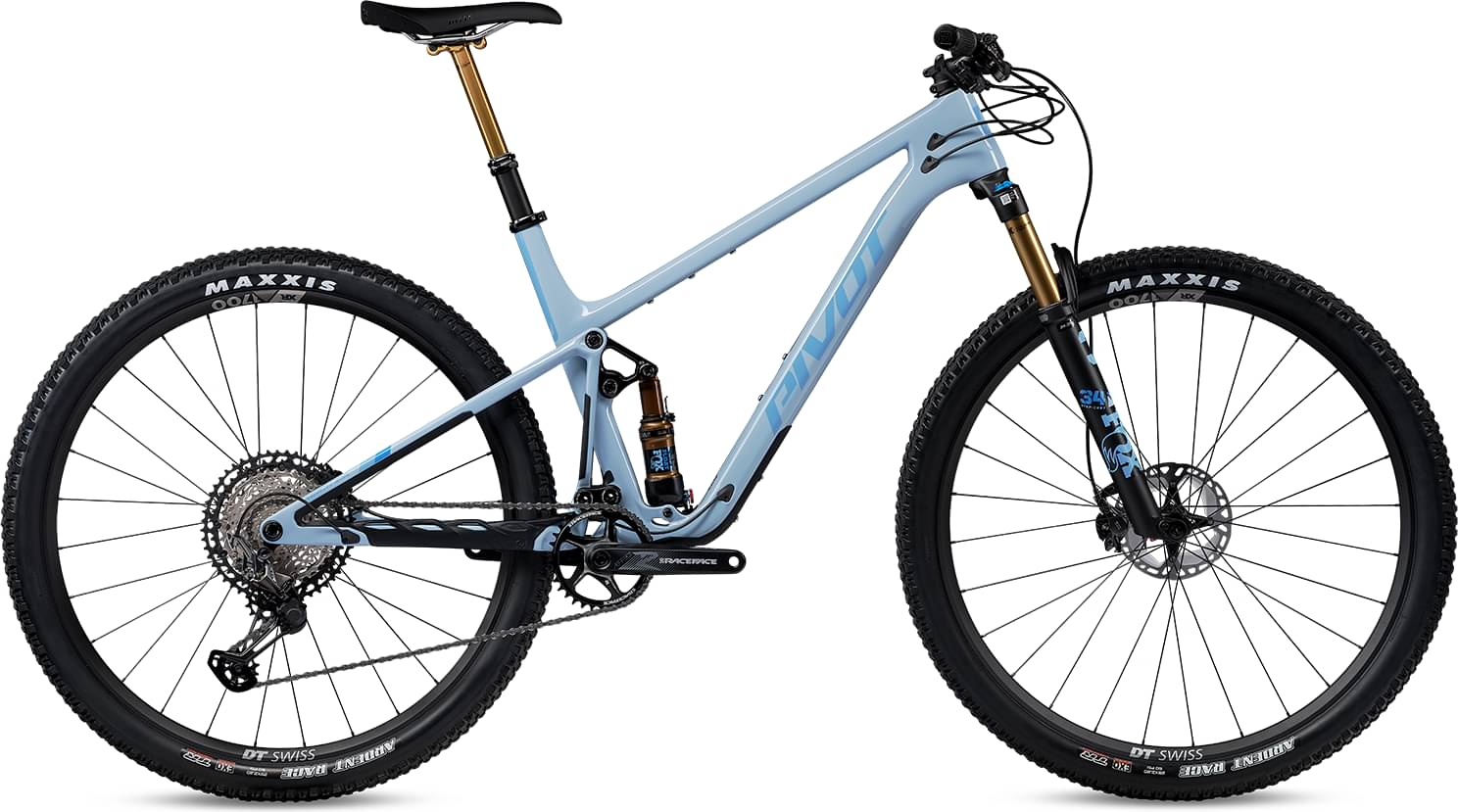

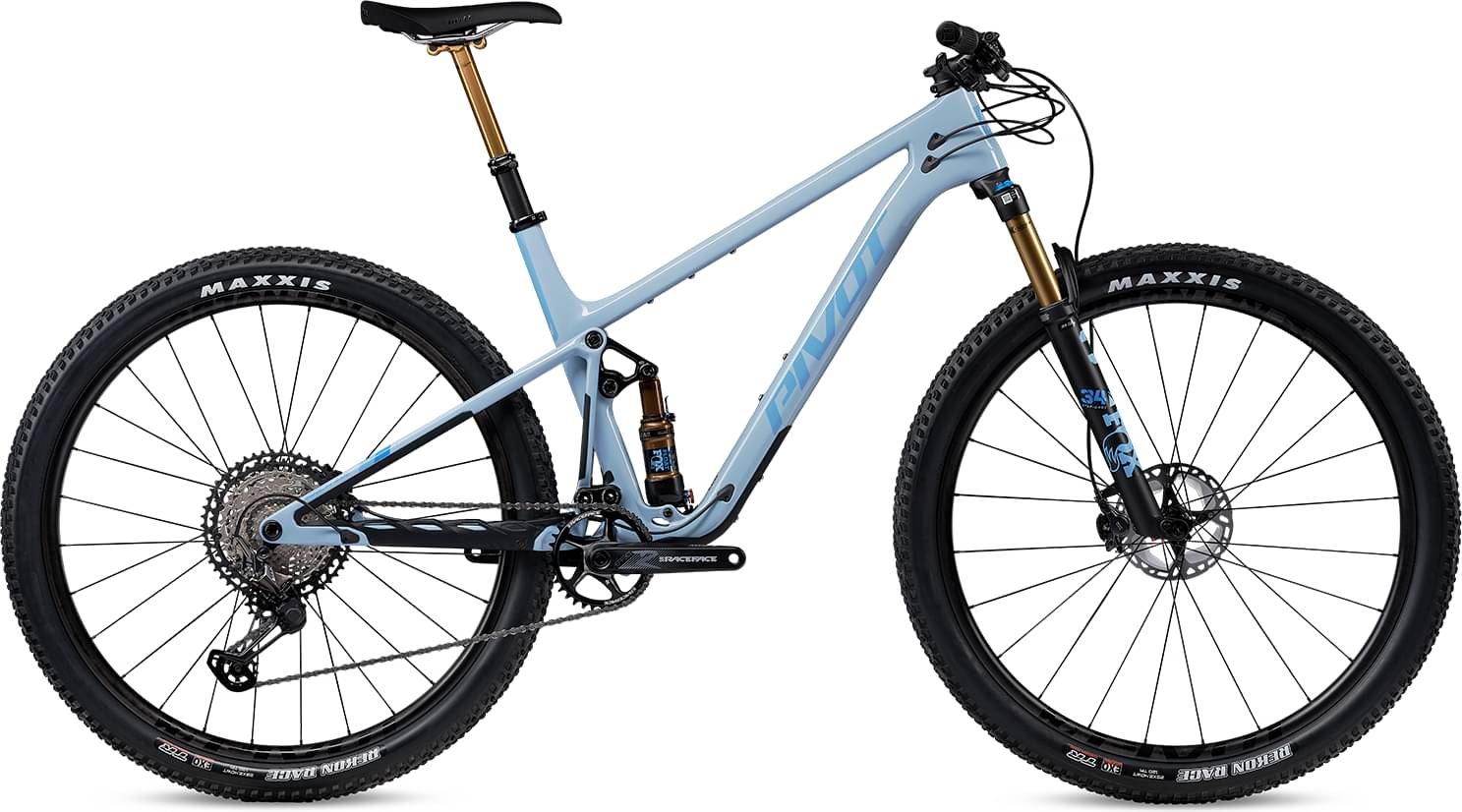

Pivot Mach 4 SL2 Pro XT/XTR 2023
2023 Mountain
Estimate price |
7,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 95mm -
Fork Fox Factory Float 34
-
Groupset XTR, XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast 34 29", 44mm offset, FIT4 - 120mm
Rear Shock
Fox Factory Float
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XT M8100 ISPEC EV 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Race Face Æffect R 34t
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
DT Swiss XR1700 w/ DT Swiss 350 hub & 36t Star Ratchet 25mm - 29"
15x110 F/12x148 R
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Brakes
Brakes
Shimano XT M8100 2-piston
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
SRAM TwistLoc Grips
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Pro Volt (Narrow Width)
Seatpost
Fox Transfer Factory Series 125mm (XS-SM), 150mm (MD-LG), 175mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 682 mm | 698 mm | 729 mm | 759 mm | 785 mm |
| Rake | 44 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 113 mm | 114 mm | 114 mm | 114 mm | 116 mm |
| Stack | 592 mm | 595 mm | 609 mm | 623 mm | 637 mm |
| Reach | 403 mm | 418 mm | 443 mm | 468 mm | 488 mm |
| Top Tube Length | 574 mm | 590 mm | 619 mm | 648 mm | 671 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 355 mm | 394 mm | 419 mm | 460 mm | 505 mm |
| Head Tube Angle | 66.7 ° | 66.7 ° | 66.7 ° | 66.7 ° | 66.7 ° |
| Head Tube Length | 85 mm | 90 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1117 mm | 1134 mm | 1165 mm | 1195 mm | 1221 mm |
| Bottom Bracket Drop | 38 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 652 mm | 662 mm | 690 mm | 685 mm | 715 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 4 SL2 Pro XT/XTR belongs to the Pivot Mach 4 model. Pivot released 180 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Pivot Mach 4 SL RIDE LIKE A PRO 2023 is the most affordable bike of this model and has a price of 5599$. On the other hand, Pivot Mach 4 SL2 Team XX Eagle Transmission 2023, is the most expensive and costs 11599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7599$. If we compare this with the average Crosscountry bike cost we notice that the price is 298.9% higher.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Fox Factory Float, with a travel distance of 95mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Mach 4 SL2 Pro XT/XTR 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mach 4 SL2 Pro XT/XTR has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
