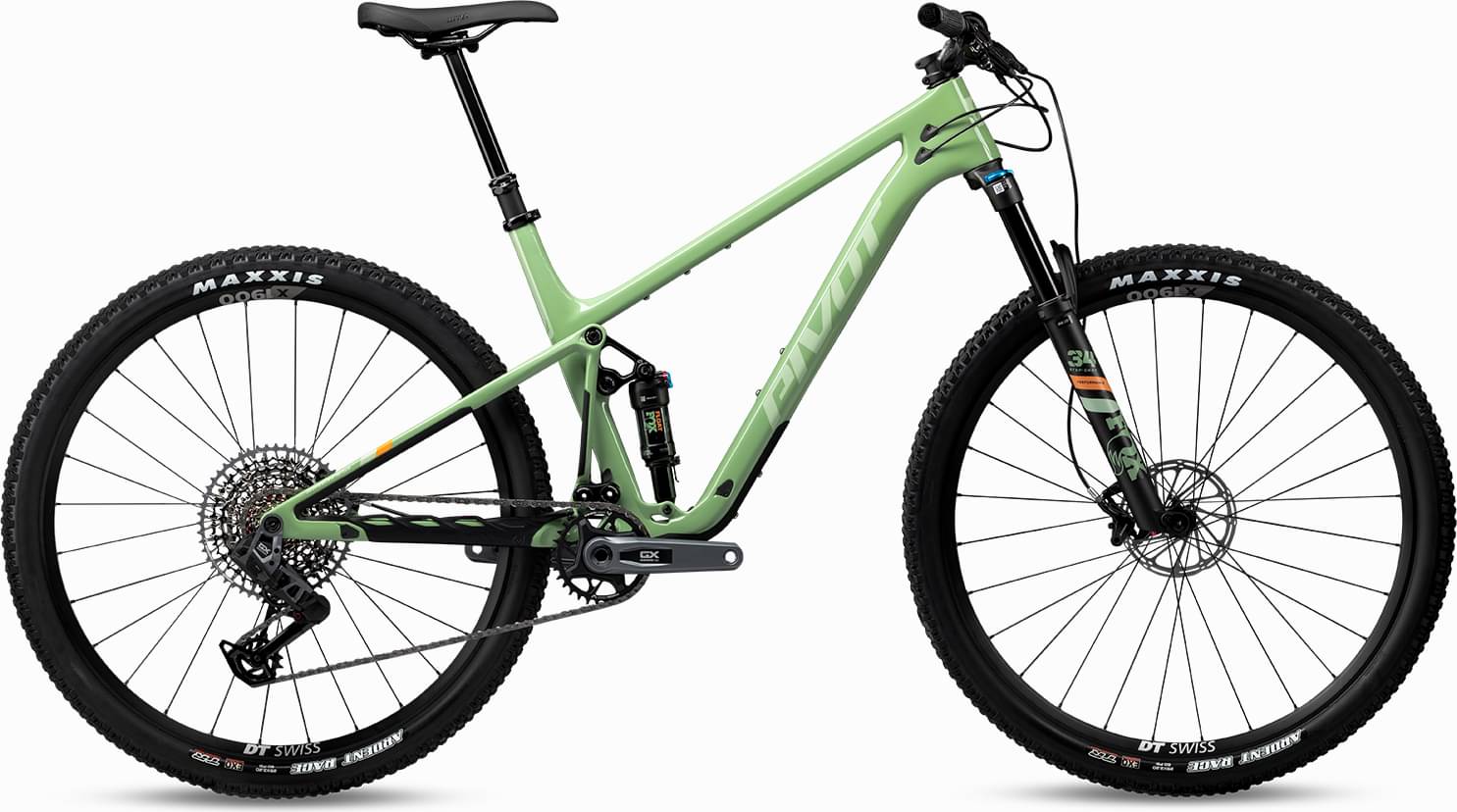

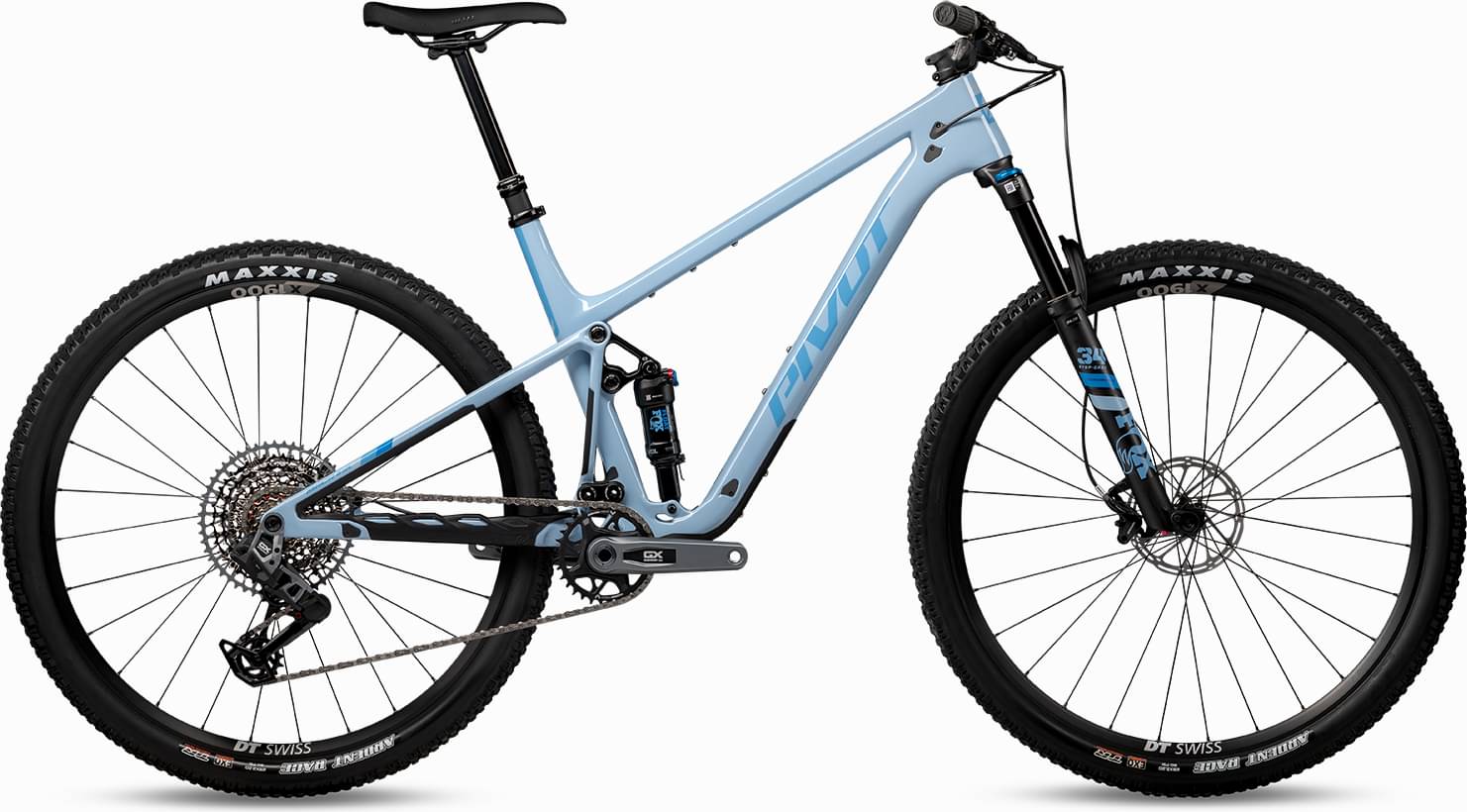

Pivot Mach 4 SL2 Ride GX Eagle Transmission 2023
2023 Mountain
Estimate price |
6,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 95mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Performance Stepcast 34 29", 44mm offset, GRIP - 120mm
Rear Shock
Fox Performance Float
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission 12-Speed
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM GX 1275 Eagle Transmission 10-52t
Crank
SRAM GX Eagle DUB 32t
Chain
SRAM GX Eagle Transmission Flattop 12-Speed
Wheels
Rims
DT Swiss X1900 w/ DT Swiss 370 hub, 25mm - 29"
15x110 F/12x148 R
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Brakes
Brakes
SRAM Level TL 2-piston
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Race Volt (Narrow Width)
Seatpost
Fox Transfer Performance Elite 125mm (XS-SM), SDG TELLIS 150mm (MD-LG), Fox Transfer Performance Elite 175mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 682 mm | 698 mm | 729 mm | 759 mm | 785 mm |
| Rake | 44 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 113 mm | 114 mm | 114 mm | 114 mm | 116 mm |
| Stack | 592 mm | 595 mm | 609 mm | 623 mm | 637 mm |
| Reach | 403 mm | 418 mm | 443 mm | 468 mm | 488 mm |
| Top Tube Length | 574 mm | 590 mm | 619 mm | 648 mm | 671 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 355 mm | 394 mm | 419 mm | 460 mm | 505 mm |
| Head Tube Angle | 66.7 ° | 66.7 ° | 66.7 ° | 66.7 ° | 66.7 ° |
| Head Tube Length | 85 mm | 90 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1117 mm | 1134 mm | 1165 mm | 1195 mm | 1221 mm |
| Bottom Bracket Drop | 38 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 652 mm | 662 mm | 690 mm | 685 mm | 715 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 4 SL2 Ride GX Eagle Transmission belongs to the Pivot Mach 4 model. Pivot launched 180 bikes of this model so far. Take a sneak peek at all Pivot Mach 4 bikes models from 2023, by clicking here.
Model range prices
Pivot Mach 4 SL RIDE LIKE A PRO 2023 is the cheapest bike model and costs 5599$. Pivot Mach 4 SL2 Team XX Eagle Transmission 2023 is the most expensive one and costs 11599$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Pivot released this model in 2023, its price was 6999$. If we compare this with the average Crosscountry bike cost we notice that the price is 267.4% more expensive.
Overview of components
Fork
The Mach 4 SL2 Ride GX Eagle Transmission comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Pivot Mach 4 SL2 Ride GX Eagle Transmission bike has the Fox Performance Float model installed, and has a travel of 95mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Mach 4 SL2 Ride GX Eagle Transmission 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 4 SL2 Ride GX Eagle Transmission has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Pivot Mach 4 SL2 Ride GX Eagle Transmission includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
