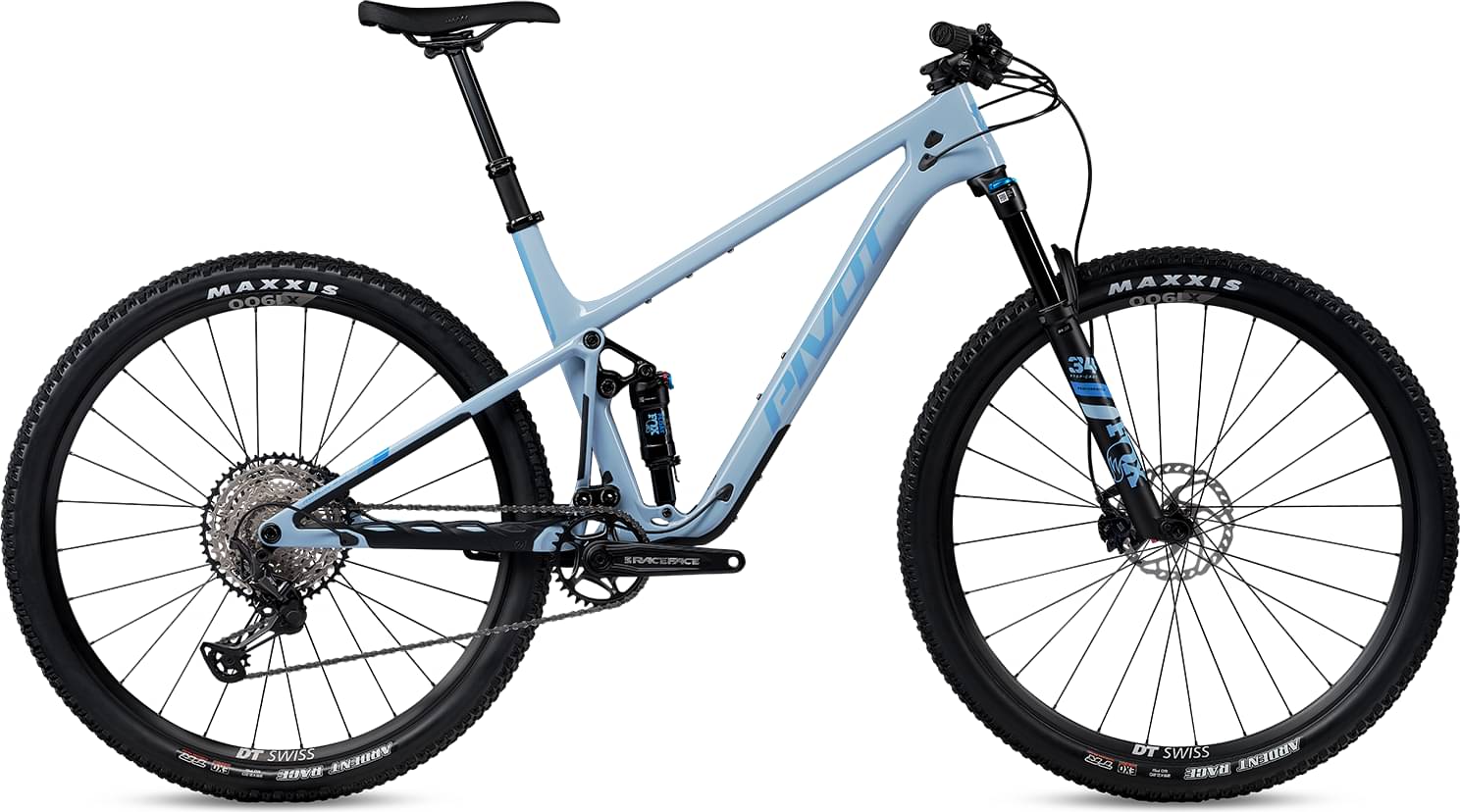

Pivot Mach 4 SL2 Ride SLX/XT 2023
2023 Mountain
Estimate price |
6,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 95mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Performance Stepcast 34 29", 44mm offset, GRIP - 120mm
Rear Shock
Fox Performance Float
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS 12-Speed
Shift Levers
Shimano SLX M7100 ISPEC EV 12-Speed
Cassette
Shimano SLX M7100 10-51t
Crank
Race Face Ride 32t
Chain
Shimano CN-M7100 12-Speed
Wheels
Rims
DT Swiss X1900 w/ DT Swiss 370 hub, 25mm - 29"
15x110 F/12x148 R
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Brakes
Brakes
Shimano SLX M7100 2-piston
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Race Volt (Narrow Width)
Seatpost
Fox Transfer Performance Elite 125mm (XS-SM), SDG TELLIS 150mm (MD-LG), Fox Transfer Performance Elite 175mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 682 mm | 698 mm | 729 mm | 759 mm | 785 mm |
| Rake | 44 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 113 mm | 114 mm | 114 mm | 114 mm | 116 mm |
| Stack | 592 mm | 595 mm | 609 mm | 623 mm | 637 mm |
| Reach | 403 mm | 418 mm | 443 mm | 468 mm | 488 mm |
| Top Tube Length | 574 mm | 590 mm | 619 mm | 648 mm | 671 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 355 mm | 394 mm | 419 mm | 460 mm | 505 mm |
| Head Tube Angle | 66.7 ° | 66.7 ° | 66.7 ° | 66.7 ° | 66.7 ° |
| Head Tube Length | 85 mm | 90 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1117 mm | 1134 mm | 1165 mm | 1195 mm | 1221 mm |
| Bottom Bracket Drop | 38 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 652 mm | 662 mm | 690 mm | 685 mm | 715 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 4 SL2 Ride SLX/XT belongs to the Pivot Mach 4 model. Pivot launched 180 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Pivot Mach 4 SL RIDE LIKE A PRO 2023 is the most economical model, with a starting price of 5599$. Pivot Mach 4 SL2 Team XX Eagle Transmission 2023 on the other hand costs 11599$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 6199$. Comparing the average cost of a Crosscountry bike to this one, you will see that Mach 4 SL2 Ride SLX/XT price is 225.41% higher.
Overview of components
Fork
Pivot Mach 4 SL2 Ride SLX/XT 2023 bike is equipped with the Fox Performance Float 34 fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Performance Float rear shock model, which has a travel of 95mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Mach 4 SL2 Ride SLX/XT 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 4 SL2 Ride SLX/XT comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
The Pivot model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
