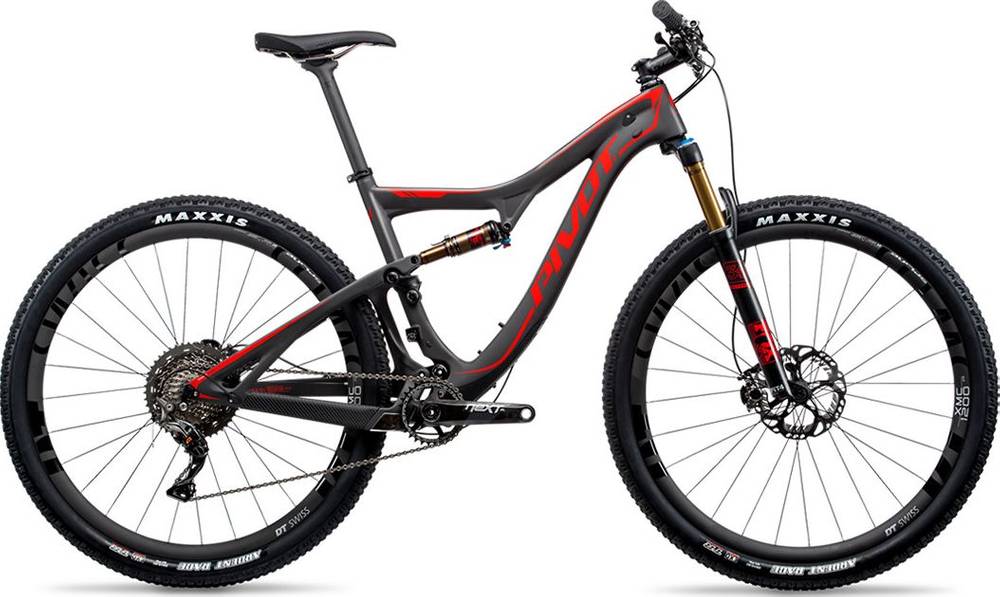

Pivot Mach 429 Carbon SL Team XTR 1x 2018
2018 Mountain
Estimate price |
7,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Factory Kashima
Rear Shock
FOX Float DPS Kashima
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed GS
Front Derailleur
N/A
Shift Levers
Shimano XTR, 11-speed
Cassette
Shimano XTR M9000, 11-46 tooth, 11-speed
Crank
Race Face Next SL
Bottom Bracket
PF92
Chain
Shimano
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss XMC 1200
Rear Hub
DT Swiss XMC 1200
Rims
DT Swiss XMC 1200 Carbon
Spokes
DT Swiss
Tires
Maxxis Ardent Race, 29"x 2.2" front and rear
Brakes
Brakes
Shimano XTR M9020 Trail
Brake Levers
Shimano XTR M9020 Trail
Cockpit
Stem
Phoenix Team XC, 35mm diamteter, 75mm length (S), 90mm length (M,L), 100mm (XL)
Handlebar
Phoenix Team Carbon, 35mm diameter, 740mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Bearing, 44mm zero stack top, 56mm zero stack bottom
Seat
Saddle
Pivot WTB Volt Team
Seatpost
Phoenix Team Carbon (dropper options available)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.46 mm | 1.47 mm | 1.49 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 599 mm | 599 mm | 624 mm | 653 mm |
| Reach | 385 mm | 411 mm | 425 mm | 437 mm |
| Top Tube Length | 582 mm | 608 mm | 627 mm | 648 mm |
| Seat Tube Angle | 71.9 ° | 71.9 ° | 71.9 ° | 71.9 ° |
| Seat Tube Length | 432 mm | 470 mm | 508 mm | 559 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° |
| Head Tube Length | 102 mm | 102 mm | 119 mm | 150 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1094 mm | 1120 mm | 1140 mm | 1163 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 709 mm | 750 mm | 750 mm | 779 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 429 Carbon SL Team XTR 1x is part of the Pivot Mach model. Pivot launched 24 bikes of this model so far. You can easily view all of the Pivot Mach bikes models from 2018, here.
Model range prices
Pivot Mach 429 Trail RACE XT 1x 2018 is the cheapest bike model and costs 4199$. Pivot Mach 429 SL Carbon TEAM XTR Di2 2x 2018 is the most expensive one and costs 9599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2018 and its price was 7899$. If we compare this with the average Crosscountry bike cost we notice that the price is 314.65% more expensive.
Overview of components
Fork
The Mach 429 Carbon SL Team XTR 1x comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Float DPS Kashima rear shock model, which has a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Mach 429 Carbon SL Team XTR 1x model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 429 Carbon SL Team XTR 1x is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Pivot Mach 429 Carbon SL Team XTR 1x includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
