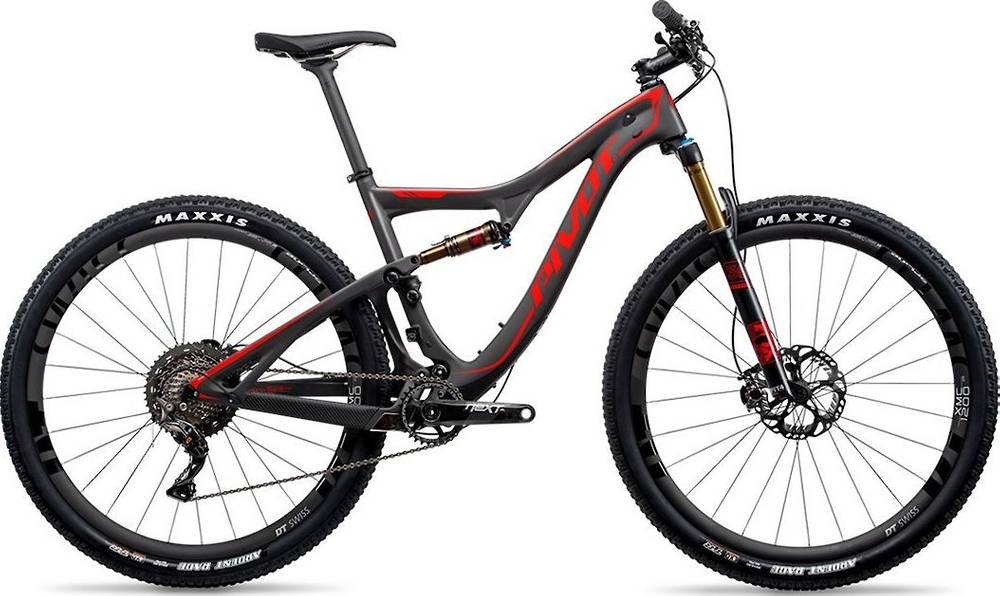

Pivot Mach 429 SL Carbon PRO XT/XTR 2x 2018
2018 Mountain
Estimate price |
5,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Factory, Boost
Rear Shock
FOX Float DPS Kashima
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed GS
Front Derailleur
Shimano XT, side-swing E-Type
Shift Levers
Shimano XT, 11-speed
Cassette
Shimano XT M8000, 11-42 tooth, 11-speed
Crank
Shimano XT M8000
Bottom Bracket
PF92
Chain
Shimano 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
DT Swiss M1700 with 36 tooth star ratchet upgrade, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
DT Swiss M1700 with 36 tooth star ratchet upgrade, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
DT Swiss M1700, 25mm
Spokes
DT Swiss
Tires
Maxxis Ardent Race, 2.2" EXO TR
Brakes
Brakes
Shimano XT M8000
Brake Levers
Shimano XT M8000
Cockpit
Stem
Phoenix Team XC, 35mm diamteter, 75mm length (S), 90mm length (M,L), 100mm (XL)
Handlebar
Phoenix Team, carbon, 35mm diameter, 740mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Bearing, 44mm zero stack top, 56mm zero stack bottom
Seat
Saddle
Pivot WTB Volt Team
Seatpost
Phoenix Race, carbon (dropper options available)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.42 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 323.8 mm | 323.8 mm | 323.8 mm | 323.8 mm |
| Stack | 599.5 mm | 599.5 mm | 616.8 mm | 645.2 mm |
| Reach | 395.3 mm | 421.2 mm | 434.7 mm | 447.4 mm |
| Top Tube Length | 582 mm | 607.4 mm | 626.5 mm | 648 mm |
| Seat Tube Angle | 72.9 ° | 72.9 ° | 72.9 ° | 72.9 ° |
| Seat Tube Length | 431.8 mm | 469.9 mm | 508 mm | 558.8 mm |
| Head Tube Angle | 70.3 ° | 70.3 ° | 70.3 ° | 70.3 ° |
| Head Tube Length | 101.6 mm | 101.6 mm | 119.4 mm | 149.9 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1087 mm | 1112 mm | 1132 mm | 1155 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm |
| Standover Height | 701 mm | 742 mm | 742 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 429 SL Carbon PRO XT/XTR 2x completes the Pivot Mach model. 24 bikes variations carry this model name so far. You can easily view all of the Pivot Mach bikes models from 2018, here.
Model range prices
Pivot Mach 429 Trail RACE XT 1x 2018 is the most affordable bike of this model and has a price of 4199$. On the other hand, Pivot Mach 429 SL Carbon TEAM XTR Di2 2x 2018, is the most expensive and costs 9599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Pivot released this model in 2018, its price was 5999$. Comparing this to the average Crosscountry bike price, we see that the price is 214.91% higher.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Pivot Mach 429 SL Carbon PRO XT/XTR 2x bike has the FOX Float DPS Kashima model installed, and has a travel of 100mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Mach 429 SL Carbon PRO XT/XTR 2x model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 429 SL Carbon PRO XT/XTR 2x is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Pivot Mach 429 SL Carbon PRO XT/XTR 2x comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
