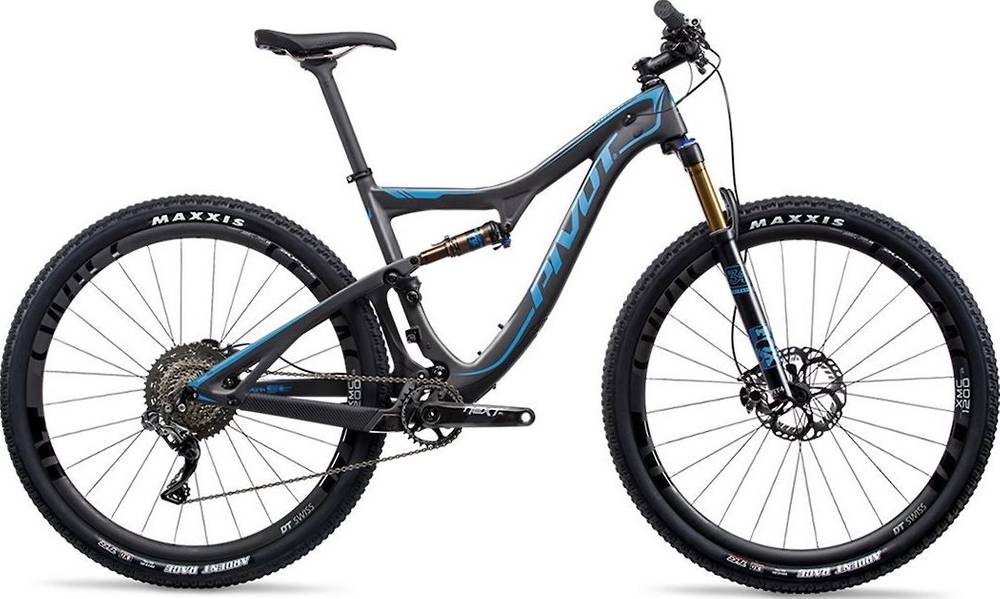

Pivot Mach 429 SL Carbon TEAM XTR 2x 2018
2018 Mountain
Estimate price |
8,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Factory, Boost
Rear Shock
FOX Float DPS Kashima
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed GS
Front Derailleur
Shimano XTR, side-swing E-Type
Shift Levers
Shimano XTR, 11-speed
Cassette
Shimano XTR M9000, 11-40 tooth, 11-speed
Crank
Race Face Next SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm, Optional updgrades: 27.5+ wheel options
Rear Hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm, Optional updgrades: 27.5+ wheel options
Rims
DT Swiss XMC 1200 Carbon
Spokes
DT Swiss
Tires
Maxxis Ardent Race, 2.2" EXO TR
Brakes
Brakes
Shimano XTR M9020 Trail
Brake Levers
Shimano XTR M9020 Trail
Cockpit
Stem
Phoenix Team XC, 35mm diamteter, 75mm length (S), 90mm length (M,L), 100mm (XL)
Handlebar
Phoenix Team, carbon, 35mm diameter, 740mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Bearing, 44mm zero stack top, 56mm zero stack bottom
Seat
Saddle
Pivot WTB Volt Team
Seatpost
Phoenix Team Carbon (dropper options available)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.42 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 323.8 mm | 323.8 mm | 323.8 mm | 323.8 mm |
| Stack | 599.5 mm | 599.5 mm | 616.8 mm | 645.2 mm |
| Reach | 395.3 mm | 421.2 mm | 434.7 mm | 447.4 mm |
| Top Tube Length | 582 mm | 607.4 mm | 626.5 mm | 648 mm |
| Seat Tube Angle | 72.9 ° | 72.9 ° | 72.9 ° | 72.9 ° |
| Seat Tube Length | 431.8 mm | 469.9 mm | 508 mm | 558.8 mm |
| Head Tube Angle | 70.3 ° | 70.3 ° | 70.3 ° | 70.3 ° |
| Head Tube Length | 101.6 mm | 101.6 mm | 119.4 mm | 149.9 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1087 mm | 1112 mm | 1132 mm | 1155 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm |
| Standover Height | 701 mm | 742 mm | 742 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 429 SL Carbon TEAM XTR 2x is a Pivot Mach model. 24 bikes variations carry this model name so far. You can easily view all of the Pivot Mach bikes models from 2018, here.
Model range prices
Pivot Mach 429 Trail RACE XT 1x 2018 is the most economical model, with a starting price of 4199$. Pivot Mach 429 SL Carbon TEAM XTR Di2 2x 2018 on the other hand costs 9599$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Pivot released this model in 2018, its price was 8399$. Doing a quick comparison, we notice that Mach 429 SL Carbon TEAM XTR 2x price is 340.89% higher than the average cost of a Crosscountry bike.
Mach 429 SL Carbon TEAM XTR 2x components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Pivot Mach 429 SL Carbon TEAM XTR 2x bike has the FOX Float DPS Kashima model installed, and has a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Mach 429 SL Carbon TEAM XTR 2x bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 429 SL Carbon TEAM XTR 2x is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
