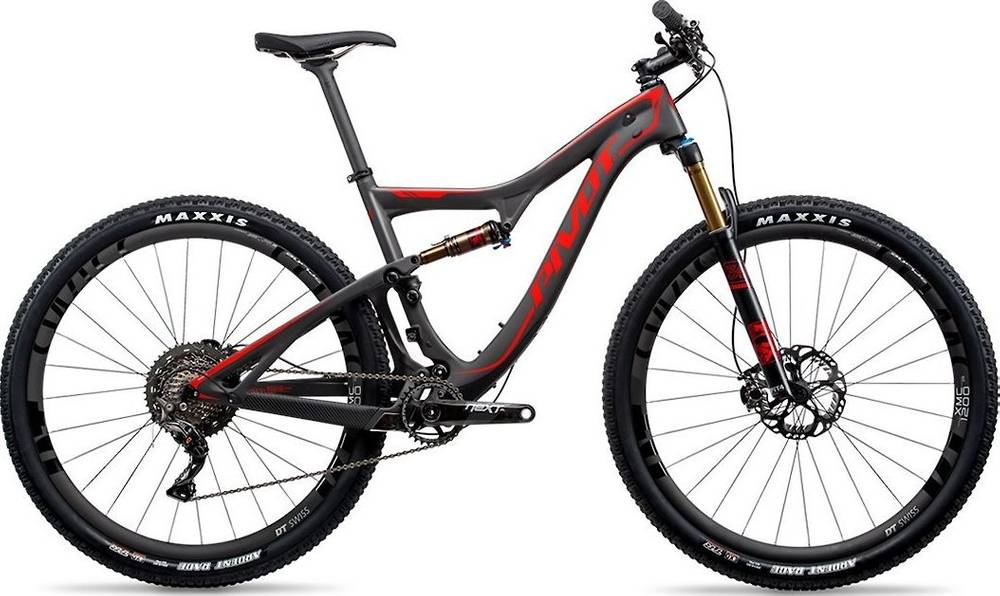

Pivot Mach 429 SL Carbon TEAM XX1 Eagle 2018
2018 Mountain
Estimate price |
8,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Factory, Boost
Rear Shock
FOX Float DPS Kashima
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XX1 Eagle, 10-50 tooth, 12-speed
Crank
SRAM XX1 Eagle
Bottom Bracket
PF92
Chain
SRAM 12-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
DT Swiss XMC 1200 Carbon
Spokes
DT Swiss
Tires
Maxxis Ardent Race, 2.2" EXO TR
Brakes
Brakes
SRAM Guide Ultimate
Brake Levers
SRAM Guide Ultimate
Cockpit
Stem
Phoenix Team XC, 35mm diamteter, 75mm length (S), 90mm length (M,L), 100mm (XL)
Handlebar
Phoenix Team, carbon, 35mm diameter, 740mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Bearing, 44mm zero stack top, 56mm zero stack bottom
Seat
Saddle
Pivot WTB Volt Team
Seatpost
Phoenix Team Carbon (dropper options available)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.42 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 323.8 mm | 323.8 mm | 323.8 mm | 323.8 mm |
| Stack | 599.5 mm | 599.5 mm | 616.8 mm | 645.2 mm |
| Reach | 395.3 mm | 421.2 mm | 434.7 mm | 447.4 mm |
| Top Tube Length | 582 mm | 607.4 mm | 626.5 mm | 648 mm |
| Seat Tube Angle | 72.9 ° | 72.9 ° | 72.9 ° | 72.9 ° |
| Seat Tube Length | 431.8 mm | 469.9 mm | 508 mm | 558.8 mm |
| Head Tube Angle | 70.3 ° | 70.3 ° | 70.3 ° | 70.3 ° |
| Head Tube Length | 101.6 mm | 101.6 mm | 119.4 mm | 149.9 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1087 mm | 1112 mm | 1132 mm | 1155 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm |
| Standover Height | 701 mm | 742 mm | 742 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 429 SL Carbon TEAM XX1 Eagle is a Pivot Mach model. There are 24 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Pivot Mach 429 Trail RACE XT 1x 2018 has a starting price of 4199$. Pivot Mach 429 SL Carbon TEAM XTR Di2 2x 2018 on the other hand is the most expensive at 9599$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 8499$. Comparing this to the average Crosscountry bike price, we see that the price is 346.14% more expensive.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Pivot Mach 429 SL Carbon TEAM XX1 Eagle bike has the FOX Float DPS Kashima model installed, and has a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Mach 429 SL Carbon TEAM XX1 Eagle model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 429 SL Carbon TEAM XX1 Eagle comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Pivot Mach 429 SL Carbon TEAM XX1 Eagle bike has 4 sizes, in the range of 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Pivot model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
