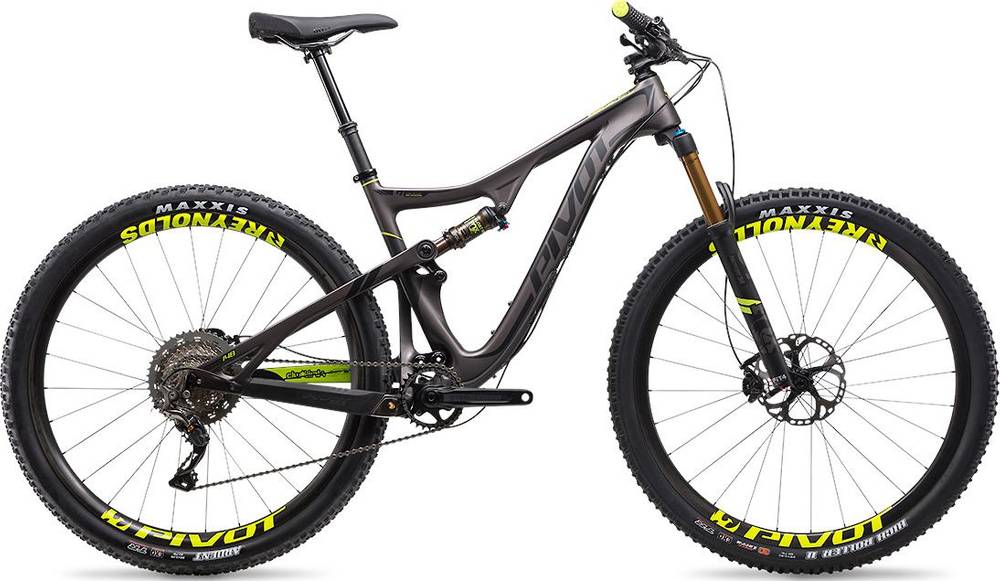

Pivot Mach 429 Trail PRO X01 Eagle 2018
2018 Mountain
Estimate price |
6,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 116mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Factory, Kashima, Boost
Rear Shock
FOX Float DPS, Kashima
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM X01 Eagle, 10-50 tooth, 12-speed
Crank
SRAM X01 Eagle
Bottom Bracket
PF92
Chain
SRAM Eagle, 12-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
DT Swiss M1700 with 36 tooth star ratchet upgrade, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
DT Swiss M1700 with 36 tooth star ratchet upgrade, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
DT Swiss M1700, 25mm width
Spokes
DT Swiss
Tires
Front: Maxxis High Roller II, 2.3" TR 3C EXO MaxxTerra, Rear: Maxxis Ardent, 2.25" TR EXO
Brakes
Brakes
Shimano XT M8000
Brake Levers
Shimano XT M8000
Cockpit
Stem
Phoenix Team Trail, 35mm clamp, 45mm length (S), 65mm length (M-XL)
Handlebar
Phoenix Team, carbon, 35mm diameter, 760mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Bearing
Seat
Saddle
Pivot WTB Vigo Race
Seatpost
FOX Transfer, 125mm or 150mm drop (KS LEV Integra option for S)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.48 mm | 1.47 mm | 1.49 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 613.7 mm | 614.2 mm | 631 mm | 659.4 mm |
| Reach | 389.9 mm | 415.6 mm | 429.6 mm | 441.8 mm |
| Top Tube Length | 586.8 mm | 613.5 mm | 635.1 mm | 656.6 mm |
| Seat Tube Angle | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 406.4 mm | 444.5 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 101.6 mm | 101.6 mm | 119.4 mm | 149.9 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1116 mm | 1141 mm | 1161 mm | 1186 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 731 mm | 742 mm | 750 mm | 769 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 429 Trail PRO X01 Eagle belongs to the Pivot Mach model. 24 bikes variations carry this model name so far. You can easily view all of the Pivot Mach bikes models from 2018, here.
Model range prices
Pivot Mach 429 Trail RACE XT 1x 2018 is the most economical model, with a starting price of 4199$. Pivot Mach 429 SL Carbon TEAM XTR Di2 2x 2018 on the other hand costs 9599$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2018 for 6499$. Comparing the average cost of a Crosscountry bike to this one, you will see that Mach 429 Trail PRO X01 Eagle price is 241.15% more expensive.
Overview of components
Fork
The Mach 429 Trail PRO X01 Eagle comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX Float DPS rear shock model, which has a travel of 116mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Mach 429 Trail PRO X01 Eagle are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Mach 429 Trail PRO X01 Eagle comes in 4 sizes, that range from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Pivot model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
