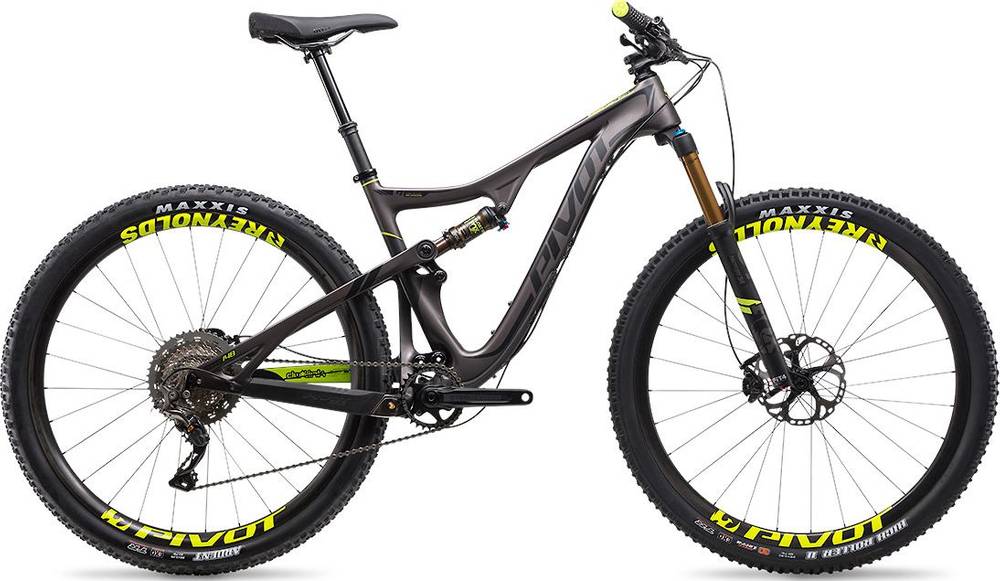

Pivot Mach 429 Trail TEAM XTR 1x 2018
2018 Mountain
Estimate price |
7,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 116mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Factory, Kashima, Boost
Rear Shock
FOX Float DPS, Kashima
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed GS
Front Derailleur
N/A
Shift Levers
Shimano XTR, 11-speed
Cassette
Shimano XT M8000, 11-46 tooth, 11-speed
Crank
Race Face Next SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
Reynolds Enduro Carbon
Spokes
Reynolds Enduro
Tires
Front: Maxxis High Roller II, 2.3" TR 3C EXO MaxxTerra, Rear: Maxxis Ardent, 2.25" TR EXO
Brakes
Brakes
Shimano XTR M9020 Trail
Brake Levers
Shimano XTR M9020 Trail
Cockpit
Stem
Phoenix Team Trail, 35mm clamp, 45mm length (S), 65mm length (M-XL)
Handlebar
Phoenix Team, carbon, 35mm diameter, 760mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Bearing
Seat
Saddle
Pivot WTB Vigo Team
Seatpost
FOX Transfer, 125mm or 150mm drop (KS LEV Integra option for S)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.48 mm | 1.47 mm | 1.49 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 613.7 mm | 614.2 mm | 631 mm | 659.4 mm |
| Reach | 389.9 mm | 415.6 mm | 429.6 mm | 441.8 mm |
| Top Tube Length | 586.8 mm | 613.5 mm | 635.1 mm | 656.6 mm |
| Seat Tube Angle | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 406.4 mm | 444.5 mm | 482.6 mm | 520.7 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 101.6 mm | 101.6 mm | 119.4 mm | 149.9 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1116 mm | 1141 mm | 1161 mm | 1186 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 731 mm | 742 mm | 750 mm | 769 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 429 Trail TEAM XTR 1x belongs to the Pivot Mach model. Pivot launched 24 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Pivot Mach 429 Trail RACE XT 1x 2018 has a starting price of 4199$. Pivot Mach 429 SL Carbon TEAM XTR Di2 2x 2018 on the other hand is the most expensive at 9599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2018 and its price was 7599$. Comparing the average cost of a Crosscountry bike to this one, you will see that Mach 429 Trail TEAM XTR 1x price is 298.9% higher.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Mach 429 Trail TEAM XTR 1x has a rear shock with a travel of 116mm. The model FOX Float DPS is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Mach 429 Trail TEAM XTR 1x model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 429 Trail TEAM XTR 1x comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
