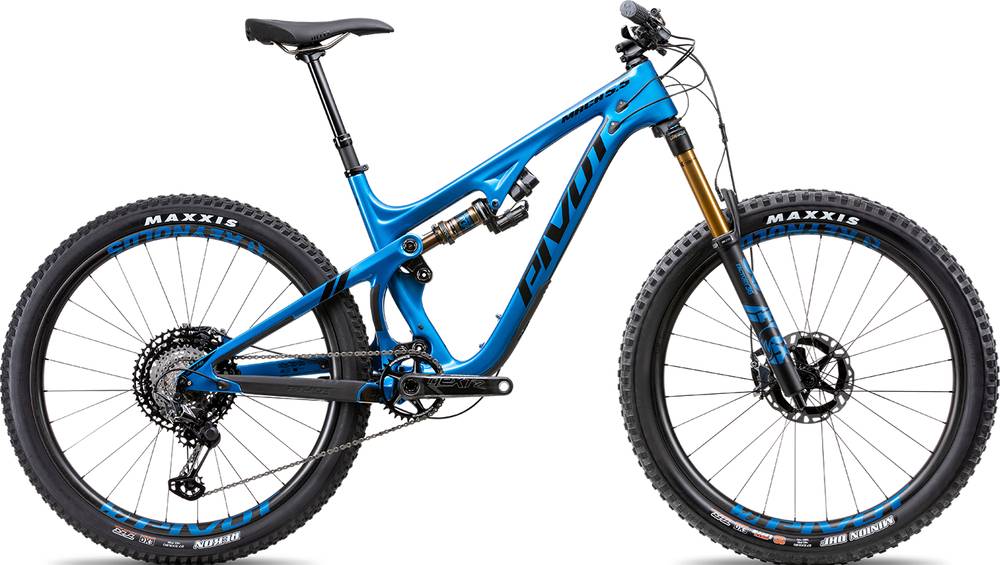

Pivot Mach 5.5 Carbon 27.5″ Team XTR 2019
2019 Mountain
Estimate price |
8,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 5.5 Carbon
Suspension Fork
Fox Factory 36 27.5", 44mm offset, FIT4 - 160mm
Rear Shock
Fox Factory Float DPX2
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XTR M9100 ISPEC 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next R 32t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro w/ DT Swiss hub, 34mm - 27.5"
Tires
Maxxis Minion 27.5" x 2.6" TR, EXOMaxxis Rekon 27.5" x 2.6" TR, EXO
Brakes
Brakes
Shimano XTR M9120
Disk Rotors
Shimano XTR CenterLock - 180mmShimano XTR CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail - 45mm (XS, SM), 55mm (MD-XL)
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Team Vigo
Seatpost
KS LEV 100mm (XS), KS LEV 125mm (SM), KS Rage-i 150mm(MD), Fox Transfer 150mm (LG,XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 589 mm | 603 mm | 613 mm | 622 mm | 631 mm |
| Reach | 397 mm | 417 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 565 mm | 591 mm | 624 mm | 646 mm | 674 mm |
| Seat Tube Angle | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 356 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1123 mm | 1150 mm | 1184 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 693 mm | 697 mm | 698 mm | 699 mm | 718 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 5.5 Carbon 27.5″ Team XTR is part of the Pivot Mach 55 model. Pivot released 77 bikes variations of this model so far. You can easily view all of the Pivot Mach 55 bikes models from 2019, here.
Model range prices
The most economical model, the Pivot Mach 5.5 Carbon Race XT 2019 has a starting price of 5399$. Pivot Mach 5.5 Carbon Team XX1 AXS w/ Fox Live Valve 2019 on the other hand is the most expensive at 12099$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 8899$. In conclusion, this bike price is 147.26% more expensive than the price of the average Enduro bike.
Mach 5.5 Carbon 27.5″ Team XTR components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The Mach 5.5 Carbon 27.5″ Team XTR 2019 bike is equipped with 27.5″ carbon wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Mach 5.5 Carbon 27.5″ Team XTR comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Pivot Mach 5.5 Carbon 27.5″ Team XTR comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
