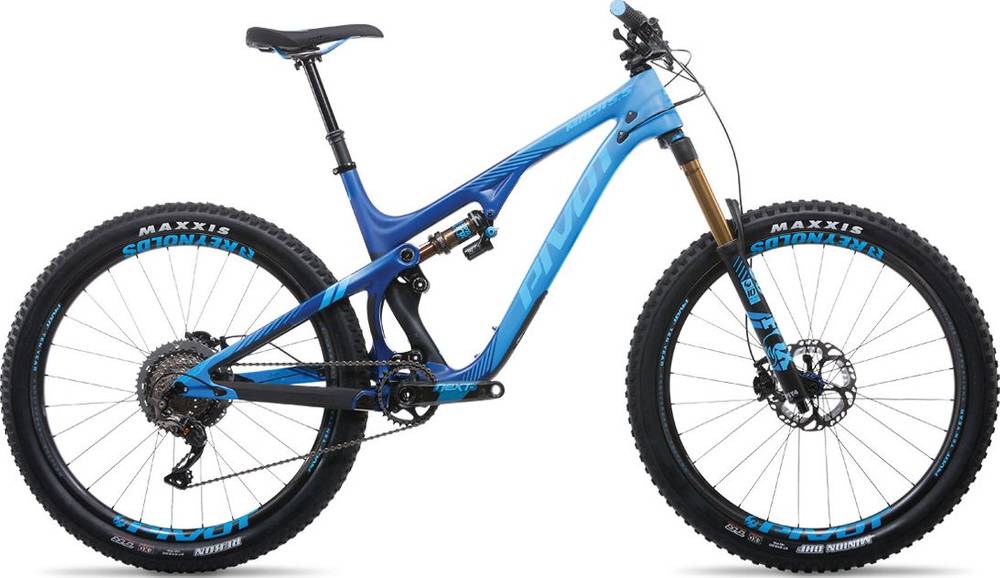

Pivot Mach 5.5 Carbon Anniversary Edition 2018
2018 Mountain
Estimate price |
8,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, Kashima with PIVOT 10 year anniversary graphics
Rear Shock
FOX Float Factory DPX2 EVOL
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano XT, 11-speed
Cassette
Shimano XT M8000, 11-46 tooth, 11-speed
Crank
Race Face Next SL, 175mm with custom graphics
Bottom Bracket
PF92
Chain
Shimano
Chain Guide
none
Pedals
none
Wheels
Front Hub
Industry Nine Pivot 10-year anniversary blue anodized
Rear Hub
Industry Nine Pivot 10-year anniversary blue anodized
Rims
Reynolds Carbon, 36mm
Spokes
Industry Nine
Tires
Front: Maxxis Minion DHF WT 27.5" x 2.6", Rear: Maxxis Rekon WT 27.5" x 2.6"
Brakes
Brakes
Shimano XT M8000, 180mm RT99 Freeza ICE TECH rotors front and rear
Brake Levers
Shimano XT M8000
Cockpit
Stem
Phoenix Team Enduro, 35mm diameter clamp
Handlebar
Phoenix Team Carbon, 35mm diameter, 760mm width
Grips
Phoenix Team Padloc
Headset
Pivot precision sealed cartridge, zero stack 44mm top, 56mm bottom
Seat
Saddle
WTB Volt, 142mm width with Pivot 10-year anniversary graphics
Seatpost
(XS) KS Lev Integra, (S,M) FOX Transfer 125mm, (L,XL) FOX Transfer 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 589 mm | 603 mm | 613 mm | 622 mm | 631 mm |
| Reach | 397 mm | 417 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 565 mm | 591 mm | 624 mm | 646 mm | 674 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 356 mm | 394 mm | 425 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1123 mm | 1149 mm | 1183 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 693 mm | 697 mm | 698 mm | 699 mm | 718 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 5.5 Carbon Anniversary Edition is part of the Pivot Mach 55 model. Pivot launched 77 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Pivot Mach 5.5 Carbon Race XT 1X 2018 is the most economical model, with a starting price of 4899$. Pivot Mach 5.5 Carbon Team XTR Di2 2X 2018 on the other hand costs 10199$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Pivot released this model in 2018, its price was 8199$. In conclusion, this bike price is 196.85% more expensive than the price of the average Trail bike.
Mach 5.5 Carbon Anniversary Edition components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX Float Factory DPX2 EVOL model, with a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Mach 5.5 Carbon Anniversary Edition are the 27.5″ carbon type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mach 5.5 Carbon Anniversary Edition has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Pivot Mach 5.5 Carbon Anniversary Edition includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
