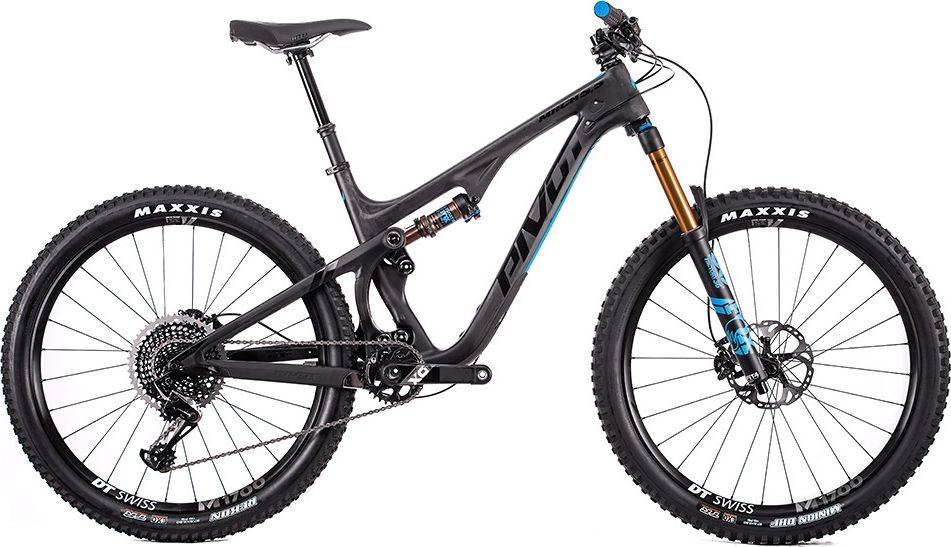

Pivot Mach 5.5 Carbon Pro X01 Eagle 2018
2018 Mountain
Estimate price |
7,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, 110mm quick release
Rear Shock
FOX Float Factory DPS EVOL
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM X01 Eagle, 10-50 tooth, 12-speed
Crank
SRAM X01 Eagle, 175mm
Bottom Bracket
PF92
Chain
SRAM
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700 27.5" x 35mm wheels, Upgrade optidon: Reynolds 27.5" x 36mm Carbon wheels with Industry Nine hubs
Rear Hub
DT Swiss M1700 27.5" x 35mm wheels, Upgrade optidon: Reynolds 27.5" x 36mm Carbon wheels with Industry Nine hubs
Rims
DT Swiss M1700 27.5" x 35mm wheels
Spokes
DT Swiss M1700 27.5" x 35mm wheels
Tires
Maxxis Minion DHF WT 27.5" x 2.6" front, Maxxis Rekon WT 27.5" x 2.6" rear
Brakes
Brakes
Shimano XT M8000
Brake Levers
Shimano XT
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Carbon, 35mm x 760mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Vigo Pro
Seatpost
FOX Transfer: 125mm (S/M), 150mm (L/XL), LEV Integra: XS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340.4 mm | 340.4 mm | 340.4 mm | 340.4 mm | 340.4 mm |
| Stack | 589 mm | 603 mm | 612.1 mm | 621.5 mm | 630.9 mm |
| Reach | 396.5 mm | 416.6 mm | 446.5 mm | 466.6 mm | 491.5 mm |
| Top Tube Length | 564.4 mm | 590.5 mm | 623.3 mm | 645.9 mm | 673.6 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355.6 mm | 393.7 mm | 425.5 mm | 457.2 mm | 495.3 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 89.9 mm | 104.9 mm | 115.1 mm | 125 mm | 134.9 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1122 mm | 1149 mm | 1183 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 692 mm | 697 mm | 697 mm | 698 mm | 717 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 5.5 Carbon Pro X01 Eagle is part of the Pivot Mach 55 model. Pivot launched 77 bikes of this model so far. Take a sneak peek at all Pivot Mach 55 bikes models from 2018, by clicking here.
Model range prices
Pivot Mach 5.5 Carbon Race XT 1X 2018 is the cheapest bike model and costs 4899$. Pivot Mach 5.5 Carbon Team XTR Di2 2X 2018 is the most expensive one and costs 10199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 7099$. If we compare this with the average Trail bike cost we notice that the price is 157.02% more expensive.
Mach 5.5 Carbon Pro X01 Eagle components
Fork
Pivot Mach 5.5 Carbon Pro X01 Eagle 2018 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Mach 5.5 Carbon Pro X01 Eagle has a rear shock with a travel of 140mm. The model FOX Float Factory DPS EVOL is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Pivot Mach 5.5 Carbon Pro X01 Eagle 2018, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 5.5 Carbon Pro X01 Eagle has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Pivot Mach 5.5 Carbon Pro X01 Eagle bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Pivot model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
