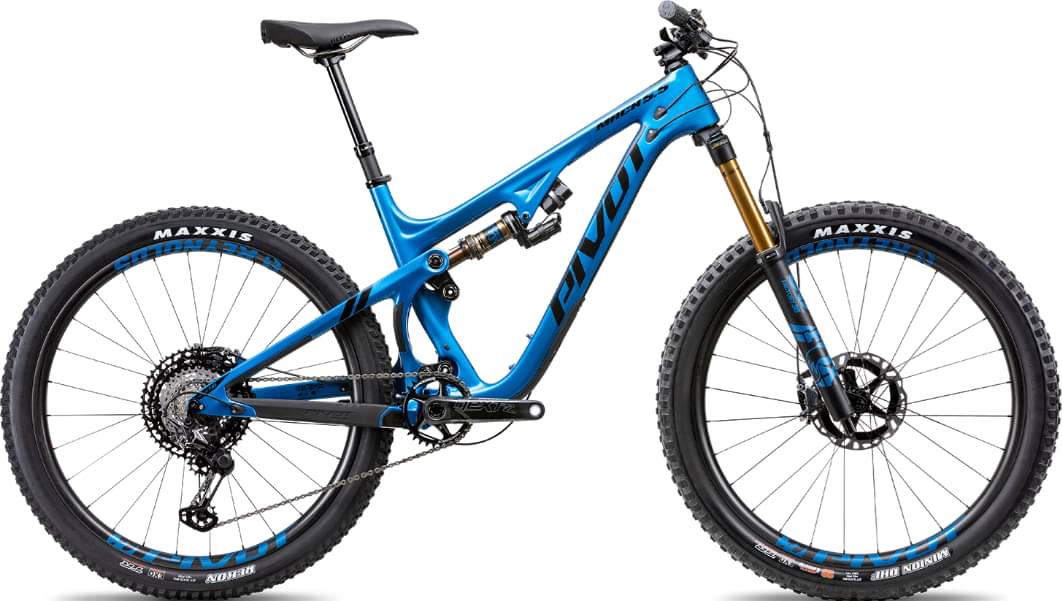

Pivot Mach 5.5 Carbon Pro XT/XTR 2022
2022 Mountain
Estimate price |
9,060$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 5.5
Suspension Fork
Fox Factory 36 27.5", 44mm offset, FIT4 - 160mm
Rear Shock
Fox Factory Float DPS
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XT M8100 ISPEC EV 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Race Face Æffect R 32t
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 27.5" 15x110 F/12x148 R
Tires
Maxxis Minion DHF 27.5" x 2.5" TR, EXO+Maxxis Dissector 27.5" x 2.4" TR, EXO
Brakes
Brakes
Shimano XT M8120 4-piston
Disk Rotors
Shimano XT CenterLock - 180mmShimano XT CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Pro Vigo (MD-XL)
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM), 150mm (MD-LG), 175mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 589 mm | 603 mm | 613 mm | 622 mm | 631 mm |
| Reach | 397 mm | 417 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 565 mm | 591 mm | 624 mm | 646 mm | 674 mm |
| Seat Tube Angle | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 356 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1123 mm | 1150 mm | 1184 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 693 mm | 697 mm | 698 mm | 699 mm | 718 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 5.5 Carbon Pro XT/XTR completes the Pivot Mach 55 model. There are 77 bikes that carry this model name. Take a sneak peek at all Pivot Mach 55 bikes models from 2022, by clicking here.
Model range prices
Pivot Mach 5.5 Carbon Race XT 2022 is the cheapest bike model and costs 6901$. Pivot Mach 5.5 Carbon Team XX1 AXS w/ Fox Live Valve 2022 is the most expensive one and costs 15448$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 8387$. Comparing the average cost of a Trail bike to this one, you will see that Mach 5.5 Carbon Pro XT/XTR price is 203.66% higher.
Overview of components
Fork
Pivot Mach 5.5 Carbon Pro XT/XTR 2022 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Fox Factory Float DPS, with a travel distance of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Mach 5.5 Carbon Pro XT/XTR model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 5.5 Carbon Pro XT/XTR is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Pivot Mach 5.5 Carbon Pro XT/XTR bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Pivot Mach 5.5 Carbon Pro XT/XTR comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
