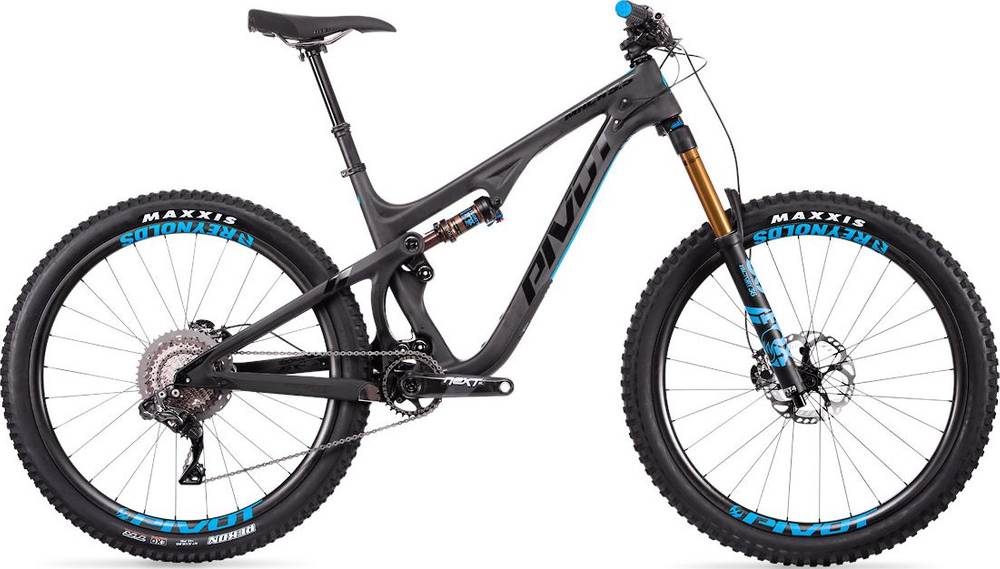

Pivot Mach 5.5 Carbon RACE X01 2018
2018 Mountain
Estimate price |
5,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset X01 Eagle, GX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Performance, Boost
Rear Shock
FOX Float Performance DPS EVOL
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM GX1 Eagle, 12-speed
Cassette
SRAM GX1 Eagle, 10-50 tooth, 12-Speed
Crank
SRAM X1 Eagle
Bottom Bracket
PF92
Chain
12-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Sun Ringle Duroc 40
Rear Hub
Sun Ringle Duroc 40
Rims
Sun Ringle Duroc 40
Spokes
Sun Ringle Duroc 40
Tires
Front: Maxxis Minion DHF, 2.6" WT TR EXO, Rear: Maxxis Rekon, 2.6" WT TR EXO
Brakes
Brakes
Shimano SLX M7000
Brake Levers
Shimano SLX M7000
Cockpit
Stem
Phoenix Team Enduro, 35mm clamp, Length: XS, SM - 45mm, M, L, XL - 55mm
Handlebar
Phoenix Race, aluminum, 750mm width, 35mm diameter
Grips
Phoenix Team Padloc
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Vigo Race
Seatpost
FOX Transfer 125mm or 150mm drop, LEV Integra 100mm drop for XS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340.4 mm | 340.4 mm | 340.4 mm | 340.4 mm | 340.4 mm |
| Stack | 589 mm | 603 mm | 612.1 mm | 621.5 mm | 630.9 mm |
| Reach | 396.5 mm | 416.6 mm | 446.5 mm | 466.6 mm | 491.5 mm |
| Top Tube Length | 564.4 mm | 590.5 mm | 623.3 mm | 645.9 mm | 673.6 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355.6 mm | 393.7 mm | 425.5 mm | 457.2 mm | 495.3 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 89.9 mm | 104.9 mm | 115.1 mm | 125 mm | 134.9 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1122 mm | 1149 mm | 1183 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 692 mm | 697 mm | 697 mm | 698 mm | 717 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 5.5 Carbon RACE X01 is part of the Pivot Mach 55 model. Pivot released 77 bikes variations of this model so far. You can easily view all of the Pivot Mach 55 bikes models from 2018, here.
Model range prices
The most economical model, the Pivot Mach 5.5 Carbon Race XT 1X 2018 has a starting price of 4899$. Pivot Mach 5.5 Carbon Team XTR Di2 2X 2018 on the other hand is the most expensive at 10199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2018 and its price was 5499$. In conclusion, this bike price is 99.09% higher than the price of the average Trail bike.
Overview of components
Fork
Pivot Mach 5.5 Carbon RACE X01 2018 bike is equipped with the Fox Performance Float 36 fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float Performance DPS EVOL, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Mach 5.5 Carbon RACE X01 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 5.5 Carbon RACE X01 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Mach 5.5 Carbon RACE X01. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
