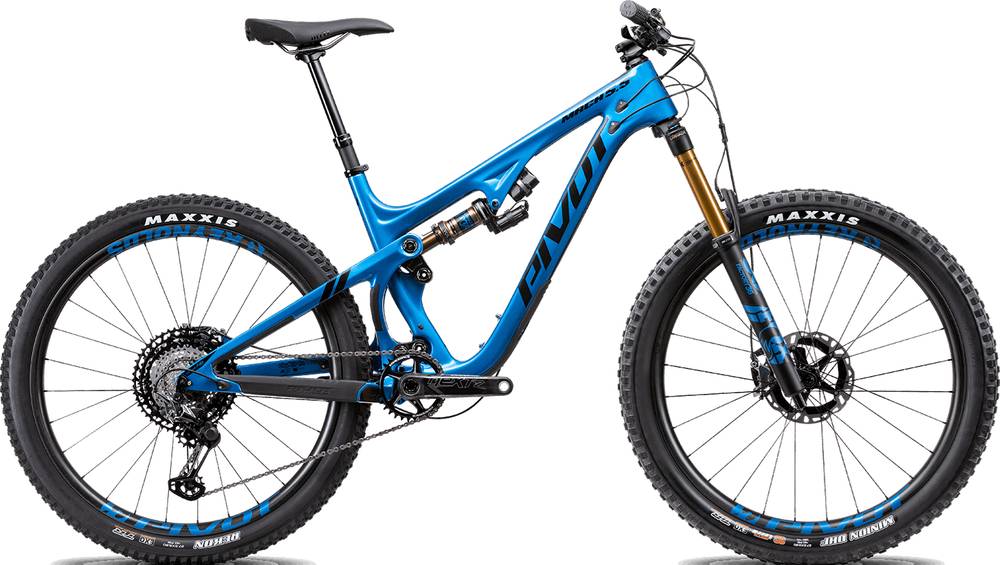

Pivot Mach 5.5 Carbon Race XT 2020
2020 Mountain
Estimate price |
5,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 5.5
Suspension Fork
Fox Performance 36 27.5", 44mm offset, GRIP - 160mm
Rear Shock
Fox Performance Float DPS
Drivetrain
Rear Derailleur
Shimano XT SGS 12-Speed
Shift Levers
Shimano SLX M7100 12-Speed
Cassette
Shimano SLX M7100 10-51t
Crank
Race Face Ride 32t
Chain
Shimano CN-M7100 12-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm -27.5”
Tires
Maxxis Minion DHF 27.5" x 2.6" TR, EXOMaxxis Rekon 27.5" x 2.6" TR, EXO
Brakes
Brakes
Shimano SLX M7120 4-piston
Disk Rotors
Shimano SLX 6-bolt - 180mmShimano SLX 6-bolt - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Race Low Rise Aluminum
Grips
Phoenix Factory Lock-On
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Race High Tail Trail (XS, SM), Phoenix WTB Race Vigo (MD-XL)
Seatpost
KS Rage-i 100mm (XS), 125mm (SM), 150mm (MD), Fox Transfer Performance Series 150mm (LG, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 589 mm | 603 mm | 613 mm | 622 mm | 631 mm |
| Reach | 397 mm | 417 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 565 mm | 591 mm | 624 mm | 646 mm | 674 mm |
| Seat Tube Angle | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 356 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1123 mm | 1150 mm | 1184 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 693 mm | 697 mm | 698 mm | 699 mm | 718 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 5.5 Carbon Race XT belongs to the Pivot Mach 55 model. 77 bikes variations carry this model name so far. Take a sneak peek at all Pivot Mach 55 bikes models from 2020, by clicking here.
Model range prices
Pivot Mach 5.5 Carbon Race XT 2020 is the cheapest bike model and costs 5499$. Pivot Mach 5.5 Carbon Team XX1 AXS w/ Fox Live Valve 2020 is the most expensive one and costs 12199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Pivot released this model in 2020, its price was 5499$. Doing a quick comparison, we notice that Mach 5.5 Carbon Race XT price is 52.79% more expensive than the average cost of an Enduro bike.
Mach 5.5 Carbon Race XT components
Fork
This bike has the Fox Performance Float 36 fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Mach 5.5 Carbon Race XT 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 5.5 Carbon Race XT is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Pivot Mach 5.5 Carbon Race XT bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
