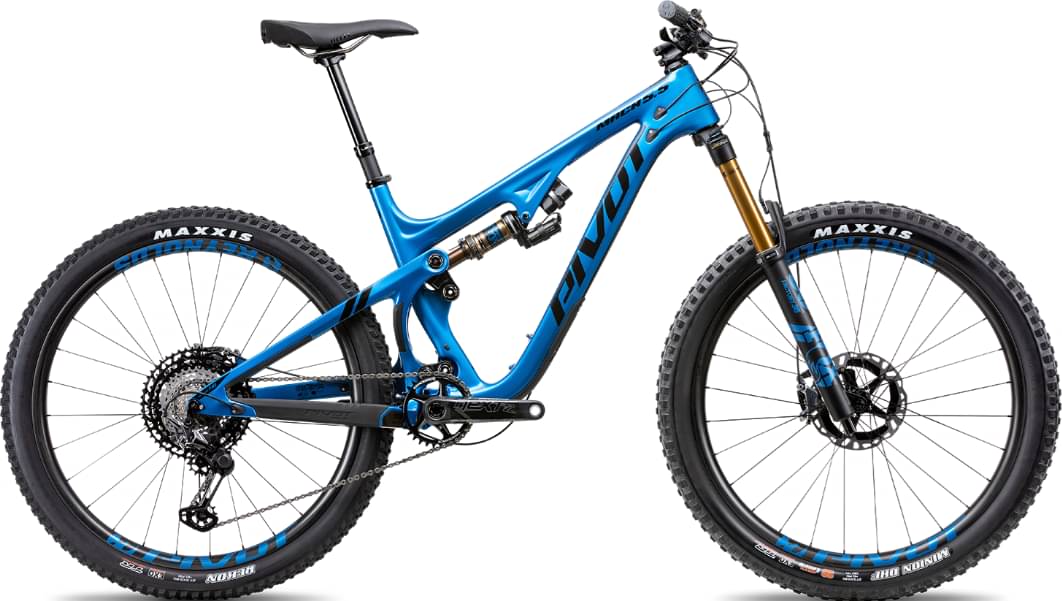

Pivot Mach 5.5 Carbon Team XX1 AXS 2022
2022 Mountain
Estimate price |
13,762$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 5.5
Suspension Fork
Fox Factory 36 27.5", 44mm offset, FIT4 - 160mm
Rear Shock
Fox Factory Float DPS
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-52t
Crank
SRAM XX1 Eagle DUB SL 32t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 27.5" 15x110 F/12x148 R
Tires
Maxxis Minion DHF 27.5" x 2.5" TR, EXO+Maxxis Dissector 27.5" x 2.4" TR, EXO
Brakes
Brakes
SRAM G2 Ultimate 4-piston
Disk Rotors
SRAM Centerline CenterLock - 180mmSRAM Centerline CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Team High Tail Trail (XS, SM), Phoenix WTB Team Vigo (MD-XL)
Seatpost
Rock Shox Reverb AXS 100mm (XS), 125mm (SM), 150mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 589 mm | 603 mm | 613 mm | 622 mm | 631 mm |
| Reach | 397 mm | 417 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 565 mm | 591 mm | 624 mm | 646 mm | 674 mm |
| Seat Tube Angle | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 356 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1123 mm | 1150 mm | 1184 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 693 mm | 697 mm | 698 mm | 699 mm | 718 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 5.5 Carbon Team XX1 AXS is a Pivot Mach 55 model. Pivot released 77 bikes variations of this model so far. You can easily view all of the Pivot Mach 55 bikes models from 2022, here.
Model range prices
The most economical model, the Pivot Mach 5.5 Carbon Race XT 2022 has a starting price of 6901$. Pivot Mach 5.5 Carbon Team XX1 AXS w/ Fox Live Valve 2022 on the other hand is the most expensive at 15448$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 12740$. Doing a quick comparison, we notice that Mach 5.5 Carbon Team XX1 AXS price is 361.26% more expensive than the average cost of a Trail bike.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Mach 5.5 Carbon Team XX1 AXS has a rear shock with a travel of 140mm. The model Fox Factory Float DPS is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Mach 5.5 Carbon Team XX1 AXS 2022 bike is equipped with 27.5″ carbon wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 5.5 Carbon Team XX1 AXS comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Mach 5.5 Carbon Team XX1 AXS comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Pivot Mach 5.5 Carbon Team XX1 AXS comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
