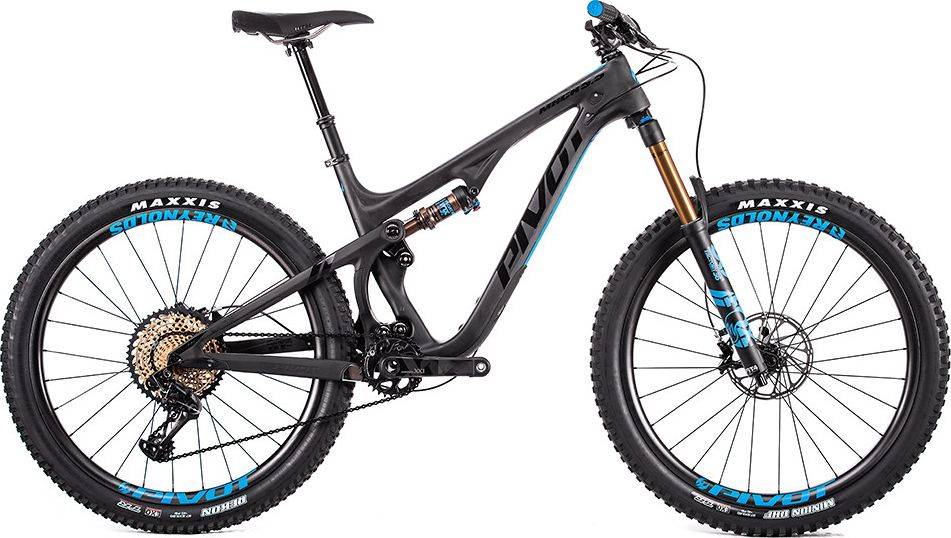

Pivot Mach 5.5 Carbon Team XX1 Eagle 2018
2018 Mountain
Estimate price |
8,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, 110mm quick release
Rear Shock
FOX Float Factory DPS EVOL
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XX1 Eagle, 10-50 tooth, 12-speed
Crank
SRAM XX1 Eagle, 175mm
Bottom Bracket
PF92
Chain
SRAM
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Reynolds 27.5" x 36mm Carbon wheels with Industry Nine hubs
Rear Hub
Reynolds 27.5" x 36mm Carbon wheels with Industry Nine hubs
Rims
Reynolds 27.5" x 36mm Carbon wheels
Spokes
Reynolds 27.5" x 36mm Carbon wheels
Tires
Maxxis Minion DHF WT 27.5" x 2.6" front, Maxxis Rekon WT 27.5" x 2.6" rear
Brakes
Brakes
SRAM XX1 Guide Ultimate
Brake Levers
SRAM XX1
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Carbon, 35mm x 760mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Vigo Team
Seatpost
FOX Transfer: 125mm (S/M), 150mm (L/XL), LEV Integra: XS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340.4 mm | 340.4 mm | 340.4 mm | 340.4 mm | 340.4 mm |
| Stack | 589 mm | 603 mm | 612.1 mm | 621.5 mm | 630.9 mm |
| Reach | 396.5 mm | 416.6 mm | 446.5 mm | 466.6 mm | 491.5 mm |
| Top Tube Length | 564.4 mm | 590.5 mm | 623.3 mm | 645.9 mm | 673.6 mm |
| Seat Tube Angle | 73.8 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355.6 mm | 393.7 mm | 425.5 mm | 457.2 mm | 495.3 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 89.9 mm | 104.9 mm | 115.1 mm | 125 mm | 134.9 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1122 mm | 1149 mm | 1183 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 692 mm | 697 mm | 697 mm | 698 mm | 717 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 5.5 Carbon Team XX1 Eagle belongs to the Pivot Mach 55 model. Pivot launched 77 bikes of this model so far. You can easily view all of the Pivot Mach 55 bikes models from 2018, here.
Model range prices
Pivot Mach 5.5 Carbon Race XT 1X 2018 is the most economical model, with a starting price of 4899$. Pivot Mach 5.5 Carbon Team XTR Di2 2X 2018 on the other hand costs 10199$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 8999$. Comparing this to the average Trail bike price, we see that the price is 225.81% higher.
Mach 5.5 Carbon Team XX1 Eagle components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float Factory DPS EVOL rear shock model, which has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Mach 5.5 Carbon Team XX1 Eagle are the 27.5″ carbon type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 5.5 Carbon Team XX1 Eagle is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
