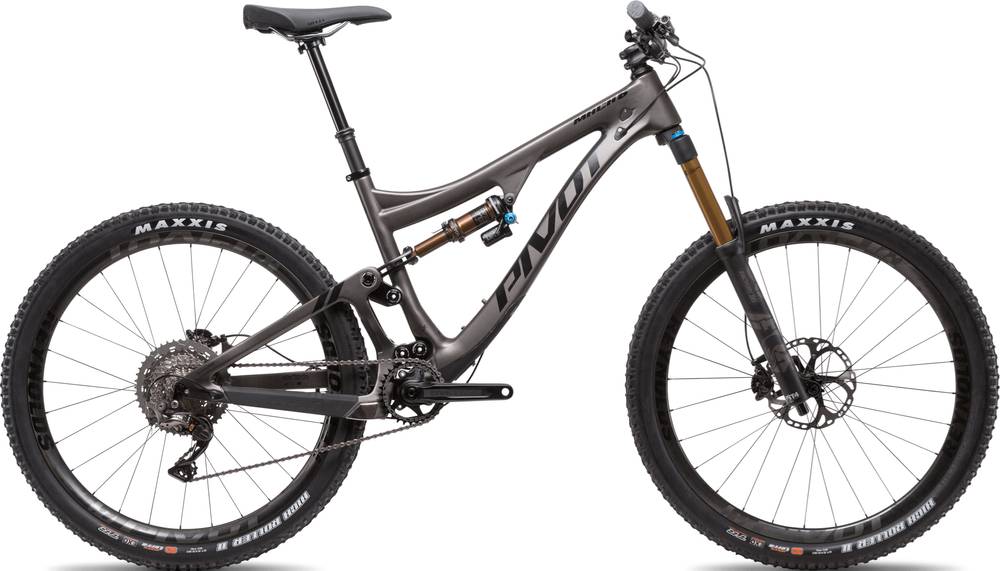

Pivot Mach 6 Carbon Race XT 2019
2019 Mountain
Estimate price |
5,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 6 Carbon
Suspension Fork
Fox Performance 36 27.5", 44mm offset, GRIP - 160mm
Rear Shock
Fox Performance DPS
Drivetrain
Rear Derailleur
Shimano XT GS 11-Speed
Shift Levers
Shimano SLX M7000 11-Speed
Cassette
Shimano SLX M-7000 11-46t
Crank
Race Face Ride 30T
Chain
SRAM PC-1110 11-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 27.5"
Tires
Maxxis Minion DHF 27.5" x 2.5" WT, TR, 3C, EXO, MAXXTERRAMaxxis Minion DHRII 27.5" x 2.4" WT, TR, 3C, EXO
Brakes
Brakes
Shimano SLX M7000
Disk Rotors
Shimano SLX 6-bolt - 180mmShimano SLX 6-bolt - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail - 45mm
Handlebar
Phoenix Race Low Rise Aluminum - 800mm
Grips
Phoenix Team Padloc
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Race Vigo
Seatpost
KS LEV 100mm (XS), KS LEV 125mm (SM), KS Rage-i 150mm(MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.35 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 578 mm | 588 mm | 597 mm | 615 mm | 618 mm |
| Reach | 372 mm | 392 mm | 442 mm | 462 mm | 487 mm |
| Top Tube Length | 547 mm | 570 mm | 613 mm | 636 mm | 664 mm |
| Seat Tube Angle | 73 ° | 73 ° | 74.75 ° | 74.75 ° | 74.75 ° |
| Seat Tube Length | 368 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 90 mm | 102 mm | 108 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1109 mm | 1138 mm | 1182 mm | 1207 mm | 1230 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 708 mm | 720 mm | 728 mm | 745 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 6 Carbon Race XT belongs to the Pivot Mach 6 model. Pivot launched 115 bikes of this model so far. Take a sneak peek at all Pivot Mach 6 bikes models from 2019, by clicking here.
Model range prices
Pivot Mach 6 Aluminum Race XT 2019 is the most affordable bike of this model and has a price of 3099$. On the other hand, Pivot Mach 6 Carbon Team XX1 AXS 2019, is the most expensive and costs 10199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5399$. Comparing the average cost of an Enduro bike to this one, you will see that Mach 6 Carbon Race XT price is 50.01% higher.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Mach 6 Carbon Race XT bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 6 Carbon Race XT is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Pivot model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
