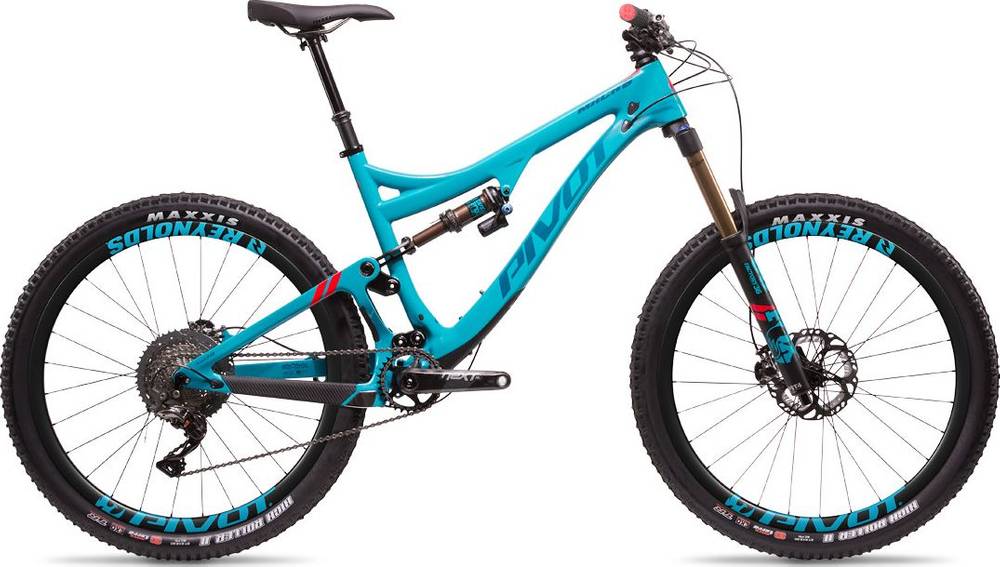

Pivot Mach 6 Carbon TEAM XTR Di2 2x 2018
2018 Mountain
Estimate price |
9,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 155mm -
Fork Fox Factory Float 36
-
Groupset XTR Di2, Race Face -
Suspension Full -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, Kashima
Rear Shock
FOX Float Factory DPX2 EVOL
Drivetrain
Rear Derailleur
Shimano XTR Di2, 11-speed
Front Derailleur
Shimano XTR Di2
Shift Levers
Shimano XTR Di2, L/R, 11-speed
Cassette
Shimano XTR M9000, 11-40 tooth, 11-speed
Crank
Race Face Next SL
Bottom Bracket
PF92
Chain
Shimano
Chain Guide
none
Pedals
none
Wheels
Front Hub
Industry Nine
Rear Hub
Industry Nine
Rims
Reynolds Carbon
Spokes
Industry Nine
Tires
Maxxis High Roller II, TR, 27.5" x 2.3" front and rear
Brakes
Brakes
Shimano XTR M9020, 180mm RT99 Freeza ICE TECH rotors front and rear
Brake Levers
Shimano XTR M9020
Cockpit
Stem
Phoenix Team Enduro, 45mm length, 35mm diameter clamp
Handlebar
Phoenix Team Carbon, 35mm diameter, 800mm width
Grips
Phoenix Team Padloc
Headset
Pivot precision sealed cartridge, zero stack 44mm top, 56mm bottom
Seat
Saddle
WTB Vigo Team
Seatpost
FOX Transfer 125mm, FOX Transfer 150mm, or KS Lev Integra 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.35 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 578 mm | 588 mm | 597 mm | 615 mm | 618 mm |
| Reach | 372 mm | 392 mm | 442 mm | 462 mm | 487 mm |
| Top Tube Length | 547 mm | 570 mm | 613 mm | 636 mm | 664 mm |
| Seat Tube Angle | 73 ° | 73 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 368 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° |
| Head Tube Length | 90 mm | 102 mm | 108 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1109 mm | 1138 mm | 1182 mm | 1207 mm | 1230 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 708 mm | 718 mm | 728 mm | 745 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 6 Carbon TEAM XTR Di2 2x is a Pivot Mach 6 model. Pivot released 115 bikes variations of this model so far. You can easily view all of the Pivot Mach 6 bikes models from 2018, here.
Model range prices
Pivot Mach 6 Aluminum RACE XT 1x 2018 is the most affordable bike of this model and has a price of 3899$. On the other hand, Pivot Mach 6 Carbon TEAM XTR Di2 2x 2018, is the most expensive and costs 9999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 9999$. Doing a quick comparison, we notice that Mach 6 Carbon TEAM XTR Di2 2x price is 177.83% higher than the average cost of an Enduro bike.
Overview of components
Fork
Pivot Mach 6 Carbon TEAM XTR Di2 2x 2018 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Pivot Mach 6 Carbon TEAM XTR Di2 2x bike has the FOX Float Factory DPX2 EVOL model installed, and has a travel of 155mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Mach 6 Carbon TEAM XTR Di2 2x model has 27.5″ carbon wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 6 Carbon TEAM XTR Di2 2x comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Pivot Mach 6 Carbon TEAM XTR Di2 2x comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
