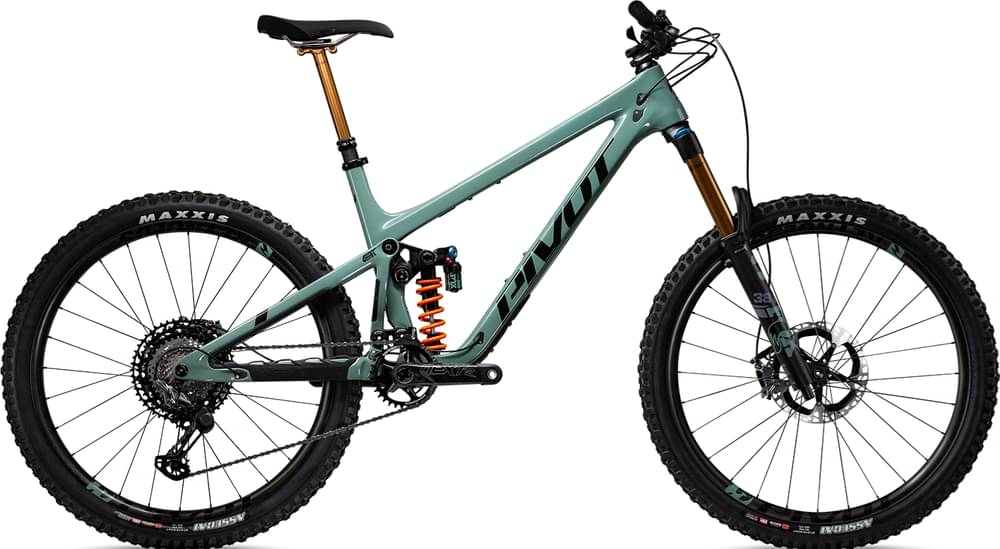

Pivot Mach 6 Pro X01 – Coil 2021
2021 Mountain
Estimate price |
8,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 158mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
147cm - 164cm
XS Low
147cm - 164cm
SM High
161cm - 174cm
SM Low
161cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 188cm
LG Low
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 6
Suspension Fork
Fox Factory 38 27.5", 44mm offset, GRIP2 - 160mm
Rear Shock
Fox Factory DHX2
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 10-52t
Crank
SRAM X01 Eagle DUB 32t
Chain
SRAM X01 Eagle 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 27.5"15x110 F/12x157 R
Tires
Maxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
SRAM CODE RSC 4-piston
Disk Rotors
SRAM Centerline CenterLock - 203mmSRAM Centerline CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM), 800mm (MD-LG)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro (Medium Width)
Seatpost
Fox Transfer Factory 125mm (XS), 150mm (SM), 175mm (MD-LG)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.33 mm | 1.36 mm | 1.26 mm | 1.28 mm | 1 mm | 1.25 mm |
| Bottom Bracket Height | 359 mm | 353 mm | 359 mm | 353 mm | 359 mm | 353 mm | 359 mm | 353 mm |
| Stack | 558 mm | 562 mm | 572 mm | 575 mm | 579 mm | 583 mm | 479 mm | 594 mm |
| Reach | 409 mm | 404 mm | 429 mm | 424 mm | 459 mm | 454 mm | 479 mm | 474 mm |
| Top Tube Length | 556 mm | 556 mm | 580 mm | 580 mm | 612 mm | 612 mm | 635 mm | 635 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 85 mm | 85 mm | 100 mm | 100 mm | 108 mm | 108 mm | 120 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1140 mm | 1142 mm | 1167 mm | 1168 mm | 1200 mm | 1202 mm | 1225 mm | 1227 mm |
| Bottom Bracket Drop | -4 mm | 2 mm | -4 mm | 2 mm | -4 mm | 2 mm | -4 mm | 2 mm |
| Standover Height | 636 mm | 630 mm | 653 mm | 647 mm | 674 mm | 668 mm | 676 mm | 670 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 188 cm | 188 cm |
Model Overview
Mach 6 Pro X01 – Coil is a Pivot Mach 6 model. Pivot released 115 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Pivot Mach 6 Carbon Race XT 2021 is the most economical model, with a starting price of 5499$. Pivot Mach 6 Team XX1 AXS – Live 2021 on the other hand costs 12799$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Pivot released this model in 2021, its price was 8199$. Doing a quick comparison, we notice that Mach 6 Pro X01 – Coil price is 127.81% higher than the average cost of an Enduro bike.
Overview of components
Fork
This bike has the Fox Factory Float 38 fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Factory DHX2, with a travel distance of 158mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Mach 6 Pro X01 – Coil bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 6 Pro X01 – Coil has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Mach 6 Pro X01 – Coil comes in 8 sizes, that range from 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Pivot model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
