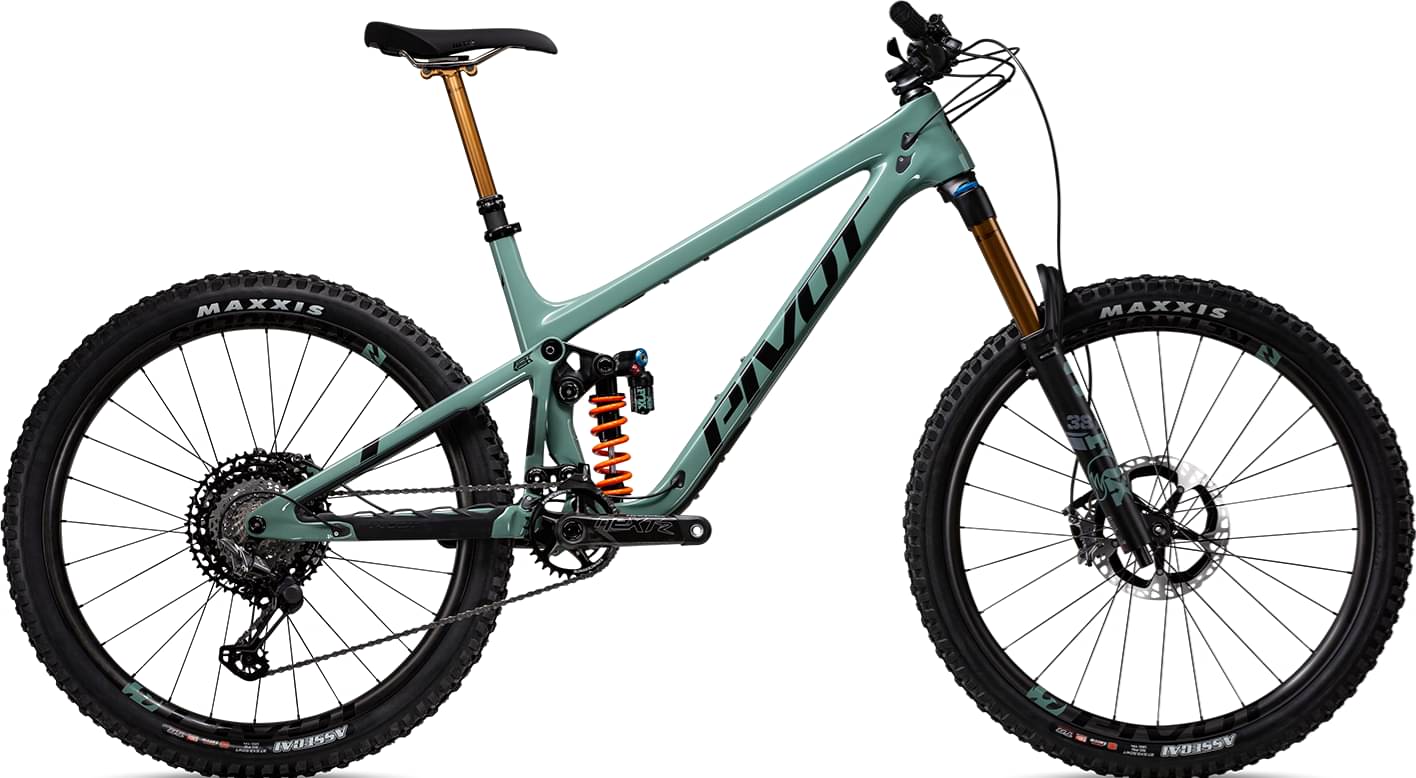

Pivot MACH 6 Pro X01 – Coil 2022
2022 Mountain
Estimate price |
10,895$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 158mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
147cm - 164cm
XS Low
147cm - 164cm
SM High
161cm - 174cm
SM Low
161cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 188cm
LG Low
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 6
Suspension Fork
Fox Factory 38 27.5", 44mm offset, GRIP2 - 160mm
Rear Shock
Fox Factory DHX2
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 10-52t
Crank
SRAM X01 Eagle DUB 32t
Chain
SRAM X01 Eagle 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 27.5"15x110 F/12x157 R
Tires
Maxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
SRAM CODE RSC 4-piston
Disk Rotors
SRAM Centerline CenterLock - 203mmSRAM Centerline CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM), 800mm (MD-LG)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro (Medium Width)
Seatpost
Fox Transfer Factory 125mm (XS), 150mm (SM), 175mm (MD-LG)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.33 mm | 1.36 mm | 1.26 mm | 1.28 mm | 1 mm | 1.25 mm |
| Bottom Bracket Height | 359 mm | 353 mm | 359 mm | 353 mm | 359 mm | 353 mm | 359 mm | 353 mm |
| Stack | 558 mm | 562 mm | 572 mm | 575 mm | 579 mm | 583 mm | 479 mm | 594 mm |
| Reach | 409 mm | 404 mm | 429 mm | 424 mm | 459 mm | 454 mm | 479 mm | 474 mm |
| Top Tube Length | 556 mm | 556 mm | 580 mm | 580 mm | 612 mm | 612 mm | 635 mm | 635 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 85 mm | 85 mm | 100 mm | 100 mm | 108 mm | 108 mm | 120 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1140 mm | 1142 mm | 1167 mm | 1168 mm | 1200 mm | 1202 mm | 1225 mm | 1227 mm |
| Bottom Bracket Drop | -4 mm | 2 mm | -4 mm | 2 mm | -4 mm | 2 mm | -4 mm | 2 mm |
| Standover Height | 636 mm | 630 mm | 653 mm | 647 mm | 674 mm | 668 mm | 676 mm | 670 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 188 cm | 188 cm |
Model Overview
MACH 6 Pro X01 – Coil is part of the Pivot Mach 6 model. Pivot released 115 bikes variations of this model so far. You can easily view all of the Pivot Mach 6 bikes models from 2022, here.
Model range prices
The most economical model, the Pivot MACH 6 Race XT – Coil 2022 has a starting price of 6901$. Pivot MACH 6 Team XX1 AXS – Live 2022 on the other hand is the most expensive at 14598$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 10086$. Comparing the average cost of an Enduro bike to this one, you will see that MACH 6 Pro X01 – Coil price is 180.24% higher.
Overview of components
Fork
This bike has the Fox Factory Float 38 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Pivot MACH 6 Pro X01 – Coil bike has the Fox Factory DHX2 model installed, and has a travel of 158mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the MACH 6 Pro X01 – Coil bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot MACH 6 Pro X01 – Coil has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 8 sizes. They vary from 147 cm – 188 cm (4.82 ft – 6.17 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Pivot MACH 6 Pro X01 – Coil comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
