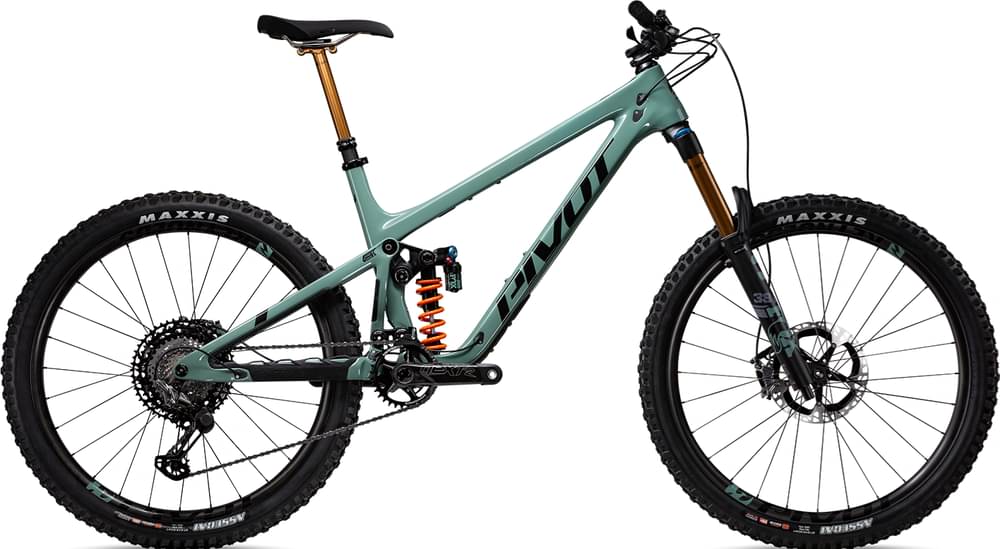

Pivot Mach 6 Pro XT/XTR – Coil 2021
2021 Mountain
Estimate price |
7,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 158mm -
Fork Fox Factory Float 38
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
147cm - 164cm
XS Low
147cm - 164cm
SM High
161cm - 174cm
SM Low
161cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 188cm
LG Low
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 6
Suspension Fork
Fox Factory 38 27.5", 44mm offset, GRIP2 - 160mm
Rear Shock
Fox Factory DHX2
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XT M8100 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Race Face Æffect R 32t
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 27.5"15x110 F/12x157 R
Tires
Maxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
Shimano XT M8120 4-Piston
Disk Rotors
Shimano XT CenterLock - 203mmShimano XT CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM), 800mm (MD-LG)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro (Medium Width)
Seatpost
Fox Transfer Factory 125mm (XS), 150mm (SM), 175mm (MD-LG)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.33 mm | 1.36 mm | 1.26 mm | 1.28 mm | 1 mm | 1.25 mm |
| Bottom Bracket Height | 359 mm | 353 mm | 359 mm | 353 mm | 359 mm | 353 mm | 359 mm | 353 mm |
| Stack | 558 mm | 562 mm | 572 mm | 575 mm | 579 mm | 583 mm | 479 mm | 594 mm |
| Reach | 409 mm | 404 mm | 429 mm | 424 mm | 459 mm | 454 mm | 479 mm | 474 mm |
| Top Tube Length | 556 mm | 556 mm | 580 mm | 580 mm | 612 mm | 612 mm | 635 mm | 635 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 85 mm | 85 mm | 100 mm | 100 mm | 108 mm | 108 mm | 120 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1140 mm | 1142 mm | 1167 mm | 1168 mm | 1200 mm | 1202 mm | 1225 mm | 1227 mm |
| Bottom Bracket Drop | -4 mm | 2 mm | -4 mm | 2 mm | -4 mm | 2 mm | -4 mm | 2 mm |
| Standover Height | 636 mm | 630 mm | 653 mm | 647 mm | 674 mm | 668 mm | 676 mm | 670 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 188 cm | 188 cm |
About this model
Mach 6 Pro XT/XTR – Coil is a Pivot Mach 6 model. There are 115 bikes that carry this model name. You can easily view all of the Pivot Mach 6 bikes models from 2021, here.
Model range prices
Pivot Mach 6 Carbon Race XT 2021 is the most economical model, with a starting price of 5499$. Pivot Mach 6 Team XX1 AXS – Live 2021 on the other hand costs 12799$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 7499$. Doing a quick comparison, we notice that Mach 6 Pro XT/XTR – Coil price is 108.36% more expensive than the average cost of an Enduro bike.
Mach 6 Pro XT/XTR – Coil components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Factory DHX2 rear shock model, which has a travel of 158mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Mach 6 Pro XT/XTR – Coil bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 6 Pro XT/XTR – Coil has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Pivot Mach 6 Pro XT/XTR – Coil bike has 8 sizes, in the range of 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
