Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
147cm - 164cm
XS Low
147cm - 164cm
SM High
161cm - 174cm
SM Low
161cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 188cm
LG Low
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 6
Suspension Fork
Fox Factory 36 27.5", 44mm offset, GRIP2 - 160mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XTR M9100 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next R 32t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub 34mm - 27.5"
15x110 F/12x157 R
Tires
Maxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Maxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
Shimano XTR M9120 4-piston
Disk Rotors
Shimano XTR CenterLock - 203mm
Shimano XTR CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM), 800mm (MD-LG)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Team (Medium Width)
Seatpost
Fox Transfer Factory 125mm (XS), 150mm (SM), 175mm (MD-LG)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.33 mm | 1.36 mm | 1.26 mm | 1.28 mm | 1 mm | 1.25 mm |
| Bottom Bracket Height | 359 mm | 353 mm | 359 mm | 353 mm | 359 mm | 353 mm | 359 mm | 353 mm |
| Stack | 558 mm | 562 mm | 572 mm | 575 mm | 579 mm | 583 mm | 479 mm | 594 mm |
| Reach | 409 mm | 404 mm | 429 mm | 424 mm | 459 mm | 454 mm | 479 mm | 474 mm |
| Top Tube Length | 556 mm | 556 mm | 580 mm | 580 mm | 612 mm | 612 mm | 635 mm | 635 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 85 mm | 85 mm | 100 mm | 100 mm | 108 mm | 108 mm | 120 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1140 mm | 1142 mm | 1167 mm | 1168 mm | 1200 mm | 1202 mm | 1225 mm | 1227 mm |
| Bottom Bracket Drop | -4 mm | 2 mm | -4 mm | 2 mm | -4 mm | 2 mm | -4 mm | 2 mm |
| Standover Height | 636 mm | 630 mm | 653 mm | 647 mm | 674 mm | 668 mm | 676 mm | 670 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 188 cm | 188 cm |
Model Overview

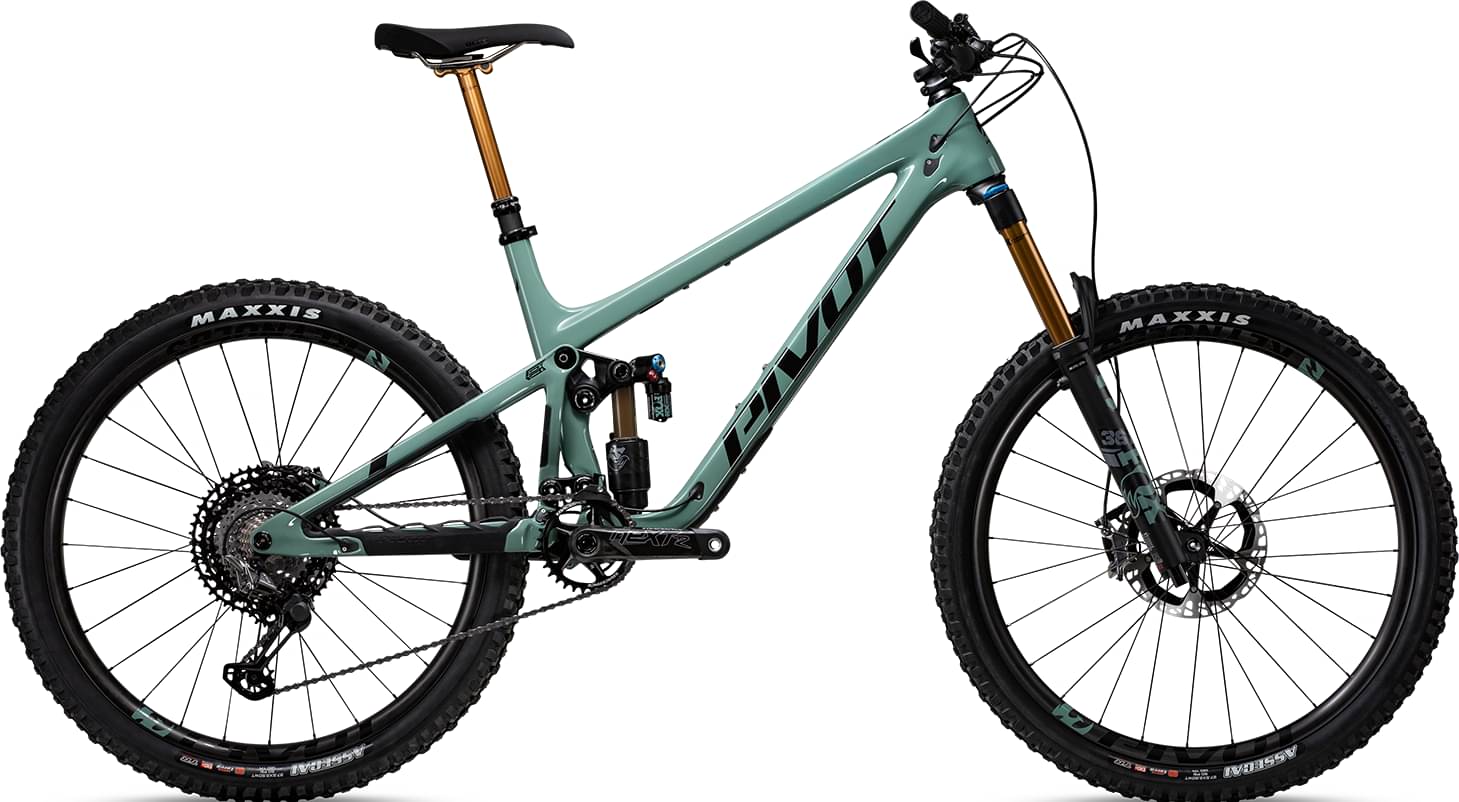

Mach 6 Team XTR is a Pivot Mach 6 model. Pivot released 115 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Pivot MACH 6 Race XT – Coil 2022 is the cheapest bike model and costs 6901$. Pivot MACH 6 Team XX1 AXS – Live 2022 is the most expensive one and costs 14598$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Pivot Mach 6 Team XTR price was 10723$. In conclusion, this bike price is 197.94% higher than the price of the average Enduro bike.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Mach 6 Team XTR are the 27.5″ carbon type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 6 Team XTR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 147 cm – 188 cm (4.82 ft – 6.17 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Pivot Mach 6 Team XTR comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
