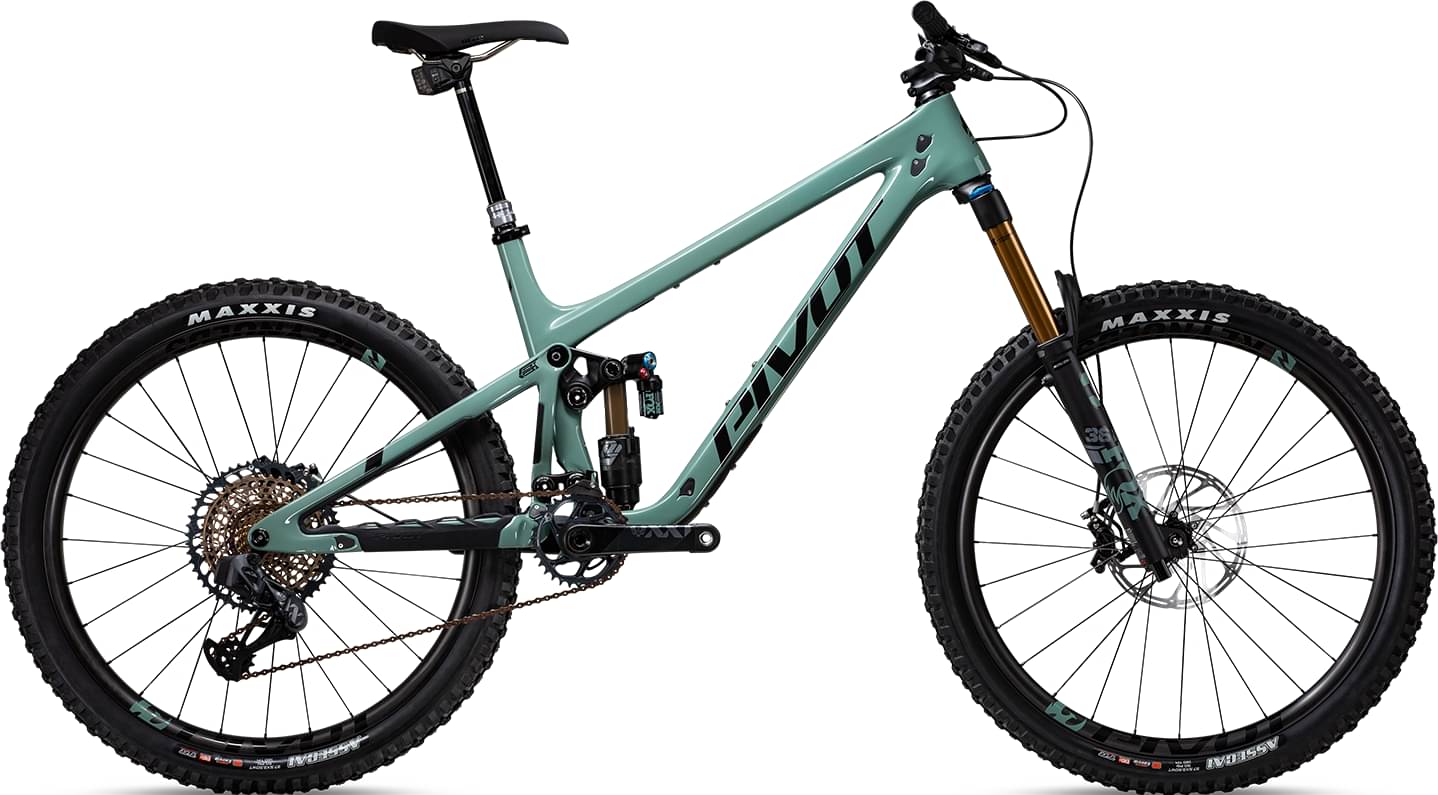

Pivot Mach 6 Team XX1 AXS 2022
2022 Mountain
Estimate price |
14,393$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
147cm - 164cm
XS Low
147cm - 164cm
SM High
161cm - 174cm
SM Low
161cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 188cm
LG Low
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 6
Suspension Fork
Fox Factory 36 27.5", 44mm offset, GRIP2 - 160mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-52t
Crank
SRAM XX1 Eagle DUB SL 32t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub 34mm - 27.5"
15x110 F/12x157 R
Tires
Maxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Maxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
SRAM CODE RSC 4-piston
Disk Rotors
SRAM Centerline CenterLock - 203mm
SRAM Centerline CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM), 800mm (MD-LG)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Team (Medium Width)
Seatpost
Rock Shox Reverb AXS 100mm (XS) 125mm (SM), 150mm (MD), 170mm (LG)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.33 mm | 1.36 mm | 1.26 mm | 1.28 mm | 1 mm | 1.25 mm |
| Bottom Bracket Height | 359 mm | 353 mm | 359 mm | 353 mm | 359 mm | 353 mm | 359 mm | 353 mm |
| Stack | 558 mm | 562 mm | 572 mm | 575 mm | 579 mm | 583 mm | 479 mm | 594 mm |
| Reach | 409 mm | 404 mm | 429 mm | 424 mm | 459 mm | 454 mm | 479 mm | 474 mm |
| Top Tube Length | 556 mm | 556 mm | 580 mm | 580 mm | 612 mm | 612 mm | 635 mm | 635 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 85 mm | 85 mm | 100 mm | 100 mm | 108 mm | 108 mm | 120 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1140 mm | 1142 mm | 1167 mm | 1168 mm | 1200 mm | 1202 mm | 1225 mm | 1227 mm |
| Bottom Bracket Drop | -4 mm | 2 mm | -4 mm | 2 mm | -4 mm | 2 mm | -4 mm | 2 mm |
| Standover Height | 636 mm | 630 mm | 653 mm | 647 mm | 674 mm | 668 mm | 676 mm | 670 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 188 cm | 188 cm |
Model Overview
Mach 6 Team XX1 AXS is part of the Pivot Mach 6 model. Pivot released 115 bikes variations of this model so far. Take a sneak peek at all Pivot Mach 6 bikes models from 2022, by clicking here.
Model range prices
Pivot MACH 6 Race XT – Coil 2022 is the cheapest bike model and costs 6901$. Pivot MACH 6 Team XX1 AXS – Live 2022 is the most expensive one and costs 14598$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 13324$. Comparing this to the average Enduro bike price, we see that the price is 270.21% higher.
Mach 6 Team XX1 AXS components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Mach 6 Team XX1 AXS model has 27.5″ carbon wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 6 Team XX1 AXS has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Pivot Mach 6 Team XX1 AXS bike has 8 sizes, in the range of 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Pivot Mach 6 Team XX1 AXS includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
