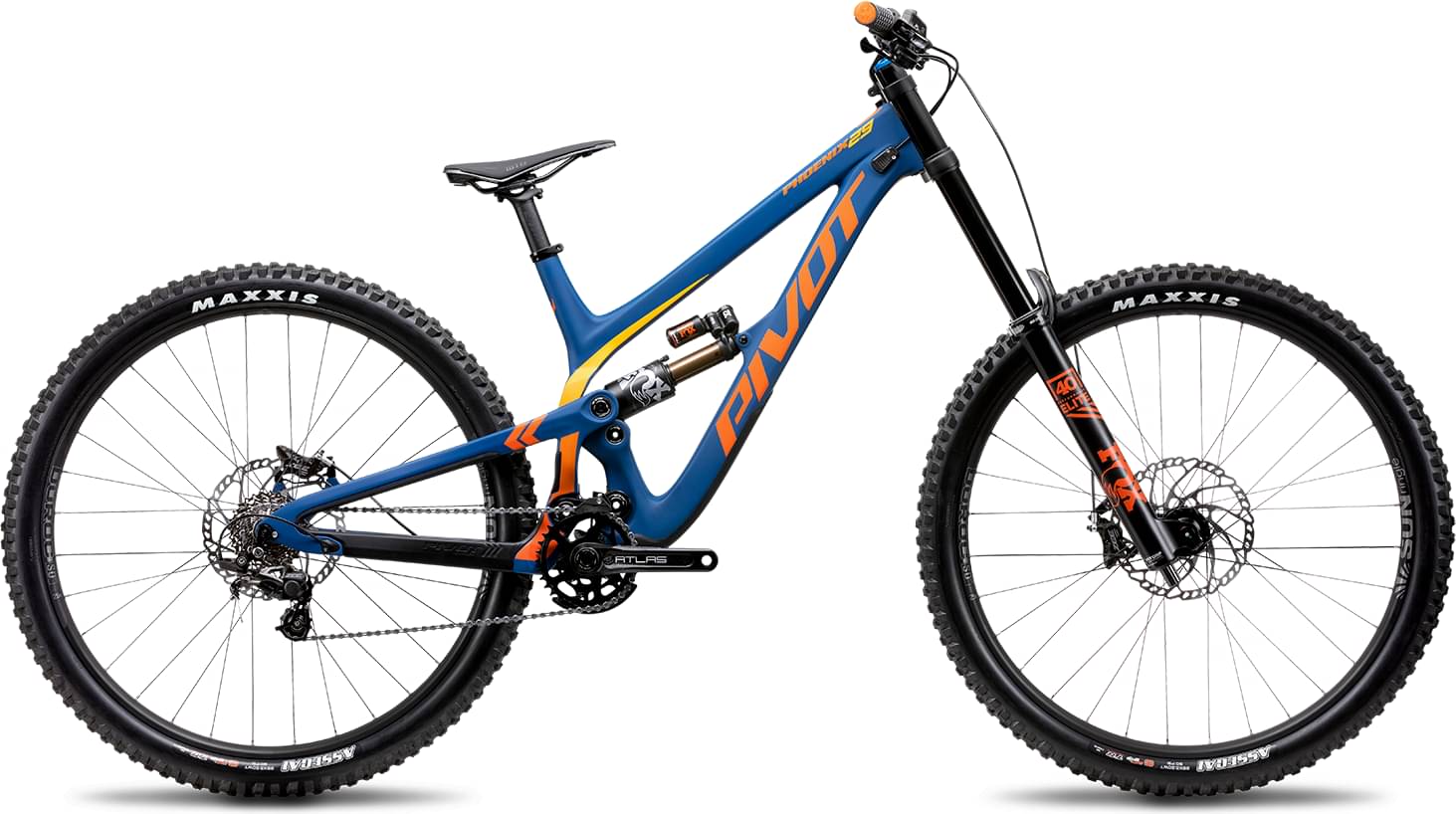

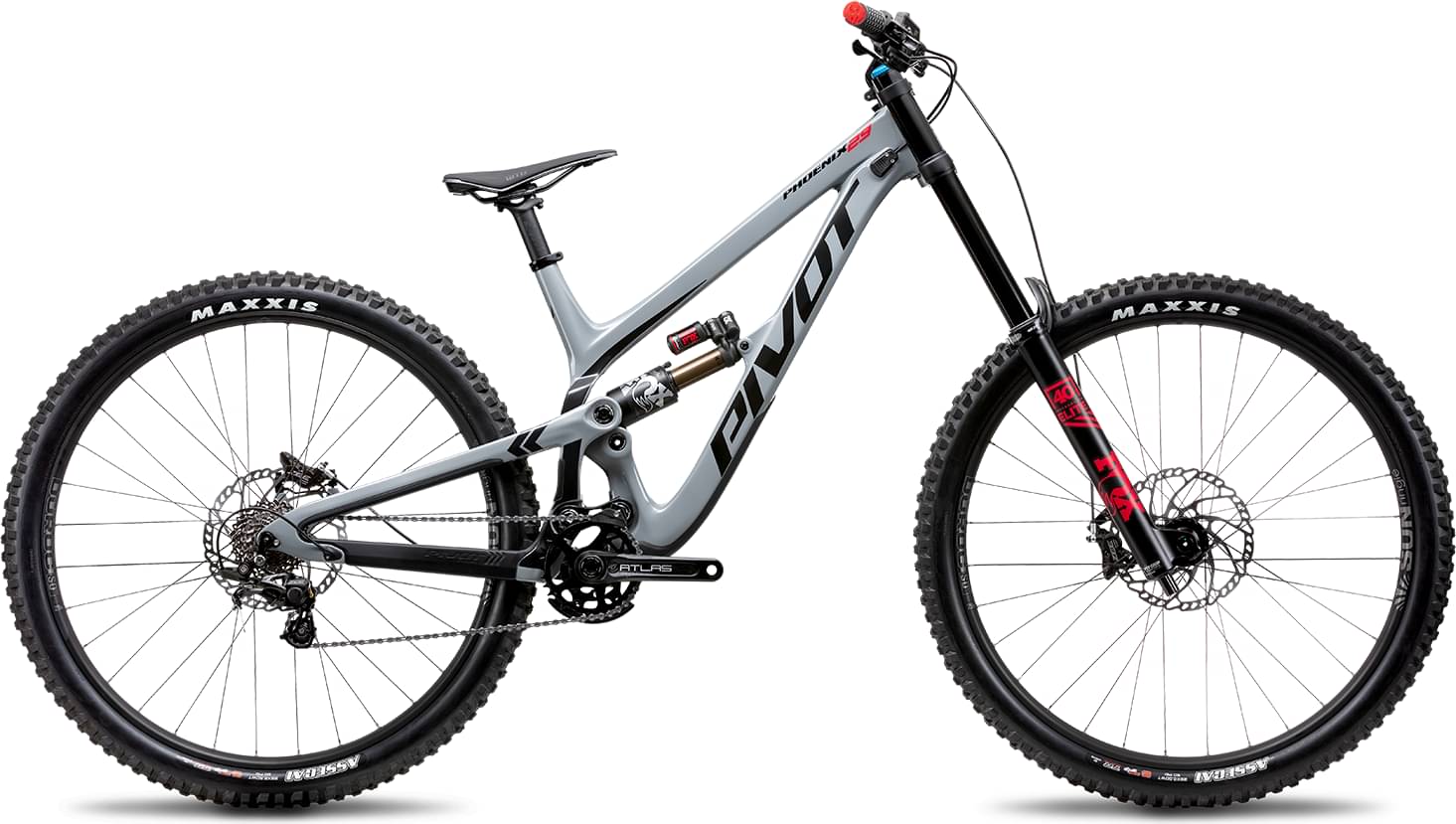

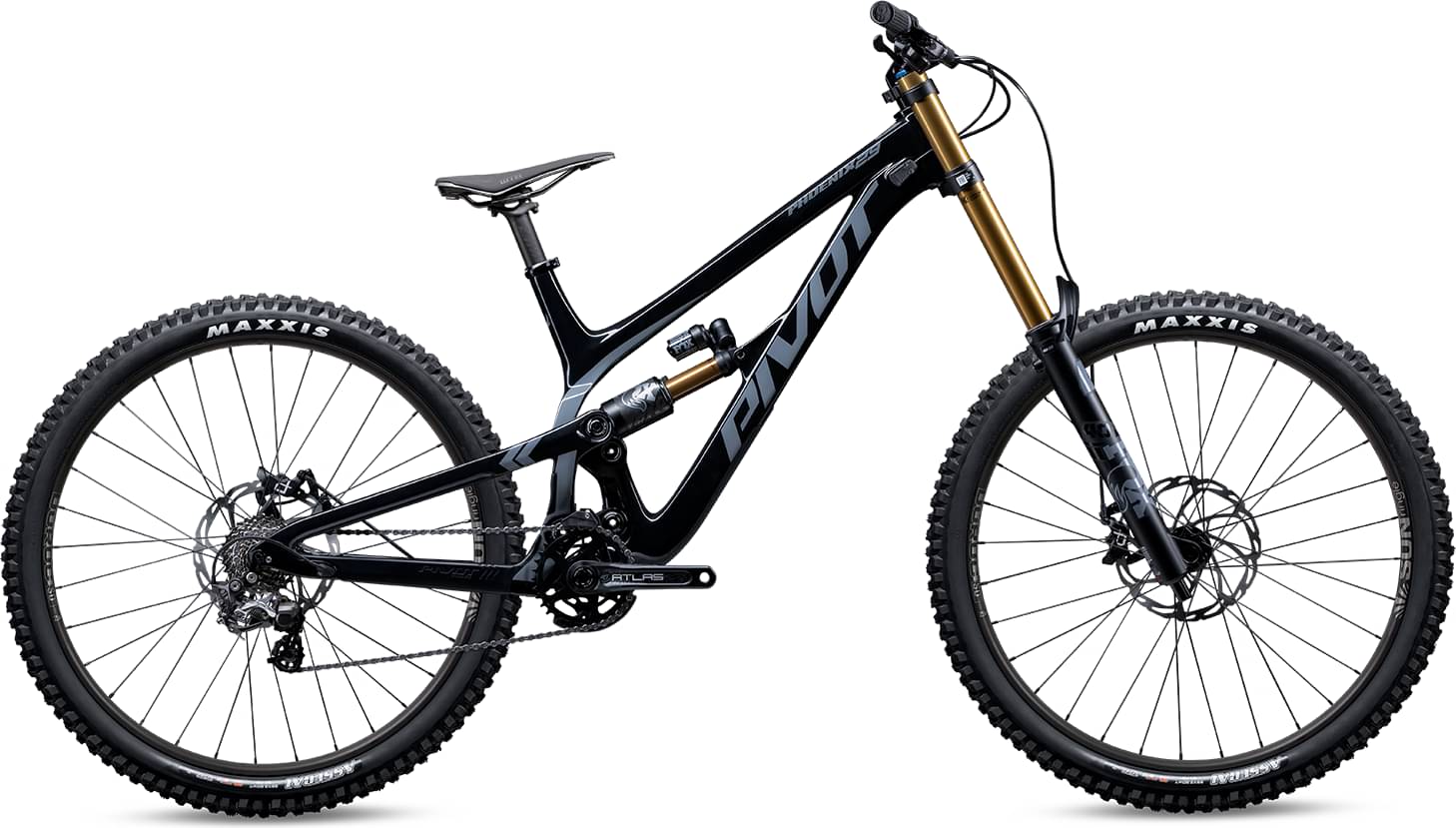

Pivot Phoenix 29 Race Zee 2023
2023 Mountain
Estimate price |
7,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Fork Fox Factory Float 40
-
Groupset Saint, Race Face -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix 29
Suspension Fork
Fox Factory 40 29”, 58mm offset, GRIP2 - 203mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano Saint M820 10-Speed
Shift Levers
Shimano Saint M820 10-Speed
Cassette
Shimano Tiagra CS-HG500 11-25t
Crank
Race Face Atlas 34t w/ chainguide
Chain
Shimano CN-6701 10-Speed
Wheels
Rims
Sun Ringle SD37 - 29"
20x110 F/12x157 R
Tires
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
Brakes
Brakes
Shimano Saint M820 4-piston
Cockpit
Stem
Phoenix Team DH - 45mm
Handlebar
Phoenix Race Low Rise Aluminum - 800mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge - DH
Seat
Saddle
Phoenix WTB Race High Tail Trail
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 638 mm | 638 mm | 638 mm | 638 mm |
| Reach | 408 mm | 428 mm | 458 mm | 483 mm |
| Top Tube Length | 568 mm | 588 mm | 618 mm | 643 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1225 mm | 1245 mm | 1276 mm | 1300 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 672 mm | 672 mm | 672 mm | 672 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Phoenix 29 Race Zee is part of the Pivot Phoenix model. Pivot released 35 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Pivot Phoenix 29 Race Zee 2023 is the cheapest bike model and costs 7599$. Pivot Phoenix 29 Pro Saint 2023 is the most expensive one and costs 8299$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Downhill bikes
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 7599$. Comparing the average cost of a Downhill bike to this one, you will see that Phoenix 29 Race Zee price is 124.09% higher.
Phoenix 29 Race Zee components
Fork
The Phoenix 29 Race Zee comes factory-installed with the Fox Factory Float 40 fork. This has a travel range of 203mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Phoenix 29 Race Zee 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Phoenix 29 Race Zee comes in 4 sizes, that range from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
