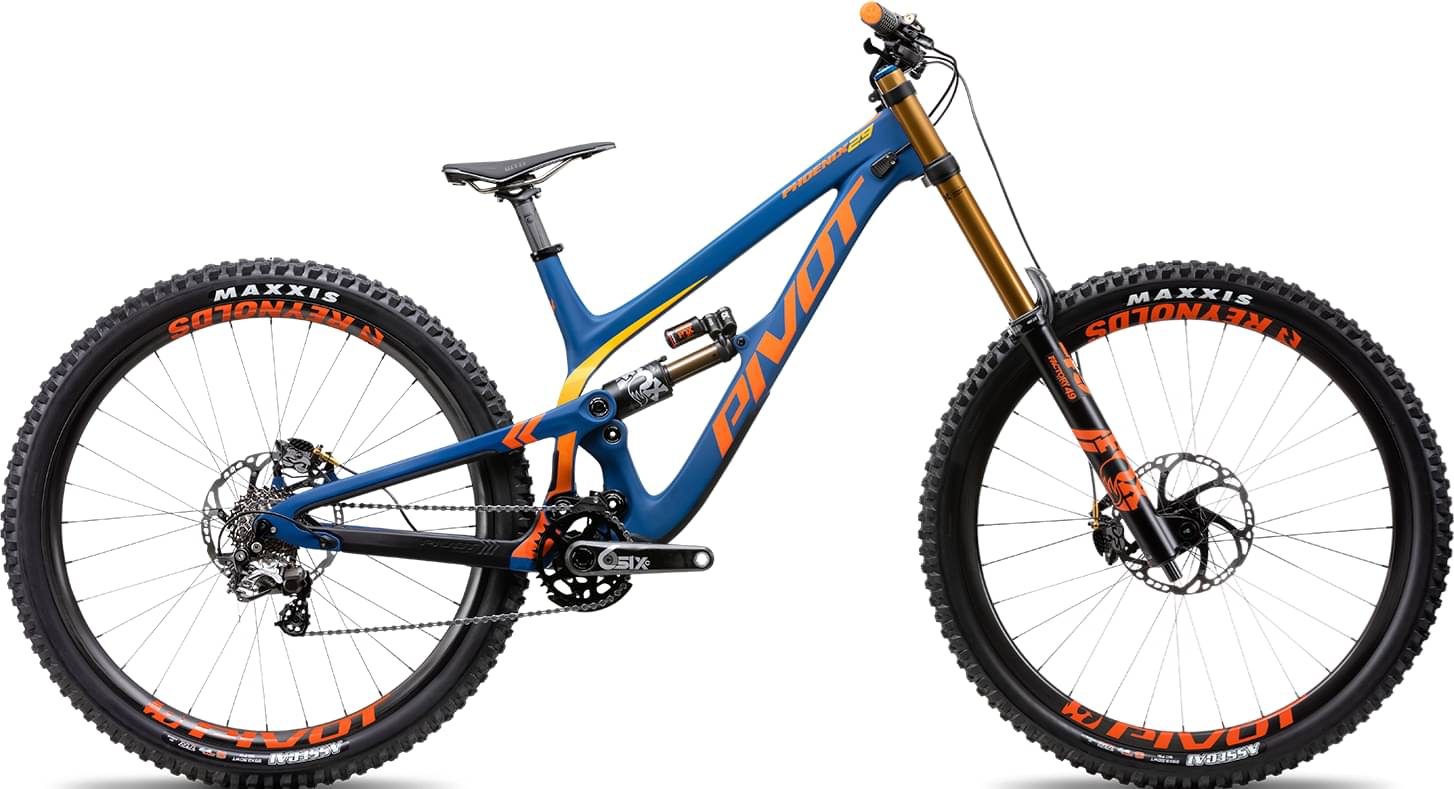

Pivot PHOENIX 29 Race Zee w/ Factory Fork 2022
2022 Mountain
Estimate price |
9,174$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 190mm -
Fork Fox Factory Float 40
-
Groupset Saint, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix 29
Suspension Fork
Fox Factory 40 29”, 58mm offset, GRIP2 - 203mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano Saint M820 10-Speed
Shift Levers
Shimano Saint M820 10-Speed
Cassette
Shimano 105 CS-5700 11-28t
Crank
Race Face Atlas 34t w/ chainguide
Chain
Shimano CN-6701 10-Speed
Wheels
Rims
Sun Ringle SD37 - 29" 20x110 F/12x157 R
Tires
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
Brakes
Brakes
Shimano Saint M820 4-piston
Disk Rotors
Shimano SLX RT66 6-bolt - 203mm Shimano SLX RT66 6-bolt - 203mm
Cockpit
Stem
Phoenix Team DH - 45mm
Handlebar
Phoenix Race Low Rise Aluminum - 800mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge - DH
Seat
Saddle
Phoenix WTB Race High Tail Trail
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 638 mm | 638 mm | 638 mm | 638 mm |
| Reach | 408 mm | 428 mm | 458 mm | 483 mm |
| Top Tube Length | 568 mm | 588 mm | 618 mm | 643 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1225 mm | 1245 mm | 1276 mm | 1300 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 672 mm | 672 mm | 672 mm | 672 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
PHOENIX 29 Race Zee w/ Factory Fork is part of the Pivot Phoenix model. There are 35 bikes that carry this model name. You can easily view all of the Pivot Phoenix bikes models from 2022, here.
Model range prices
Pivot PHOENIX 29 Race Zee w/ Factory Fork 2022 is the most affordable bike of this model and has a price of 8493$. On the other hand, Pivot PHOENIX 29 Pro Saint w/ Carbon Wheels 2022, is the most expensive and costs 11042$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Downhill bikes
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 8493$. In conclusion, this bike price is 150.46% more expensive than the price of the average Downhill bike.
PHOENIX 29 Race Zee w/ Factory Fork components
Fork
This bike has the Fox Factory Float 40 fork installed. The fork’s travel is 203mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Fox Factory Float X2, with a travel distance of 190mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on PHOENIX 29 Race Zee w/ Factory Fork are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot PHOENIX 29 Race Zee w/ Factory Fork has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 162 cm – 200 cm (5.31 ft – 6.56 ft). In short, you can easily find one that suits you.
