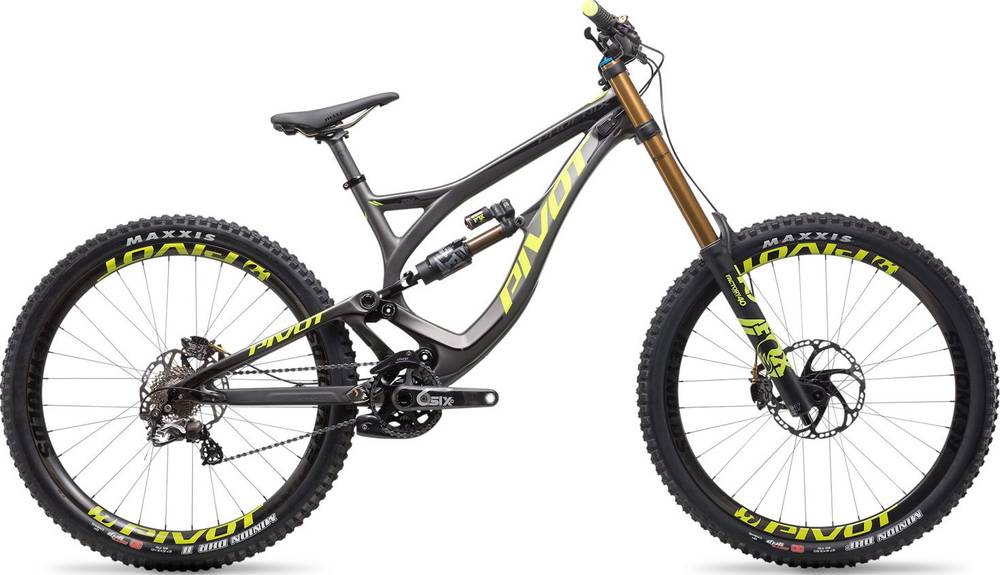

Pivot Phoenix DH Carbon Zee 2018
2018 Mountain
Estimate price |
5,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 204mm -
Fork RockShox BoXXer
-
Groupset Zee -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox BoXXer RC
Rear Shock
FOX Performance Float X2
Drivetrain
Rear Derailleur
Shimano Zee, 10-speed
Front Derailleur
N/A
Shift Levers
Shimano Zee
Cassette
Shimano CS-5700 11-28 tooth, 10-speed
Crank
Shimano Zee, 165mm length
Bottom Bracket
Shimano pressfit
Chain
Shimano 10-speed
Chain Guide
e*thirteen LG1+
Pedals
N/A
Wheels
Front Hub
Hayes 275
Rear Hub
Hayes 275
Rims
ADD Comp
Tires
Front: Maxxis Minion DHF 2.5" 3C DH casing, Maxx Grip, tubeless ready, Rear: Maxxis Minion DHR II 2.4" 3C DH casing, Maxx Grip, tubeless ready
Brakes
Brakes
Shimano Zee, 203mm front / 180mm rear rotors
Brake Levers
Shimano Zee
Cockpit
Stem
Phoenix DH Direct Mount, aluminum, 46mm - 49mm adjustable length, 35mm width
Handlebar
Phoenix Race, aluminum, 35mm diameter, 800mm width
Grips
Phoenix Team Padloc
Headset
Pivot precision DH sealed bearings
Seat
Saddle
Pivot WTB Hightail Sport
Seatpost
Phoenix Sport Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.43 mm | 1.35 mm | 1.27 mm |
| Bottom Bracket Height | 339.6 mm | 339.6 mm | 339.6 mm | 339.6 mm |
| Stack | 607.6 mm | 607.6 mm | 607.6 mm | 607.6 mm |
| Reach | 398.6 mm | 424.5 mm | 451.4 mm | 478.6 mm |
| Top Tube Length | 599.8 mm | 625.2 mm | 650.6 mm | 676 mm |
| Seat Tube Angle | 71.85 ° | 71.85 ° | 71.85 ° | 71.85 ° |
| Seat Tube Length | 430.5 mm | 430.5 mm | 430.5 mm | 430.5 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 105.9 mm | 105.9 mm | 105.9 mm | 105.9 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1207 mm | 1234 mm | 1260 mm | 1287 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm |
| Standover Height | 733 mm | 733 mm | 733 mm | 733 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Phoenix DH Carbon Zee is a Pivot Phoenix model. Pivot launched 35 bikes of this model so far. Take a sneak peek at all Pivot Phoenix bikes models from 2018, by clicking here.
Model range prices
Pivot Phoenix DH Carbon Zee 2018 is the most economical model, with a starting price of 5399$. Pivot Phoenix DH Carbon Saint 2018 on the other hand costs 8799$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Downhill bikes
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Pivot Phoenix DH Carbon Zee price was 5399$. Doing a quick comparison, we notice that Phoenix DH Carbon Zee price is 59.22% more expensive than the average cost of a Downhill bike.
Phoenix DH Carbon Zee components
Fork
The Phoenix DH Carbon Zee comes factory-installed with the RockShox BoXXer fork. This has a travel range of 200mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX Performance Float X2 rear shock model, which has a travel of 204mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Phoenix DH Carbon Zee model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Phoenix DH Carbon Zee has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 162 cm – 200 cm (5.31 ft – 6.56 ft). In short, you can easily find one that suits you.
