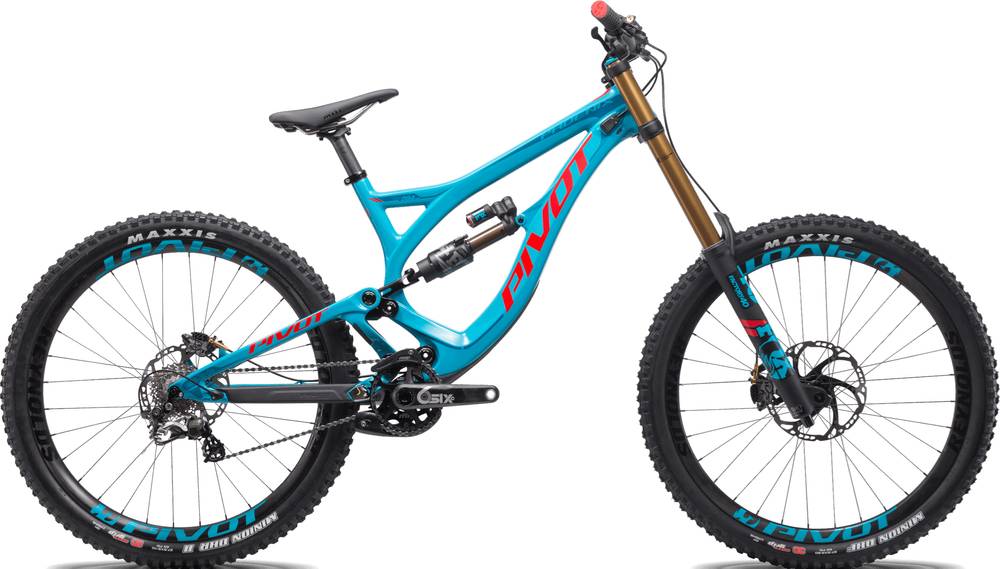

Pivot Phoenix Team Frame 2019
2019 Mountain
Estimate price |
1,599$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Suspension Full
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix
Rear Shock
Fox Factory Float X2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.43 mm | 1.35 mm | 1.27 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 608 mm | 608 mm | 608 mm | 608 mm |
| Reach | 397 mm | 425 mm | 452 mm | 479 mm |
| Top Tube Length | 600 mm | 626 mm | 651 mm | 677 mm |
| Seat Tube Angle | 71.85 ° | 71.85 ° | 71.85 ° | 71.85 ° |
| Seat Tube Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1208 mm | 1235 mm | 1265 mm | 1288 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 734 mm | 734 mm | 734 mm | 734 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Phoenix Team Frame is part of the Pivot Phoenix model. 35 frames variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Pivot Phoenix Team Frame 2019 is the most affordable frame of this model and has a price of 1599$. On the other hand, Pivot Phoenix 29 Team Frame Kit 2019, is the most expensive and costs 5699$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill frames average price
According to our math, the average price for a trustworthy Downhill frame is 1923$. However, even though the average price of a Downhill frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1599$. Comparing the average cost of a Downhill frame to this one, you will see that Phoenix Team Frame price is 20.26% lower.
Overview of components
Sizes
This frame is available in 4 sizes. They vary from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
