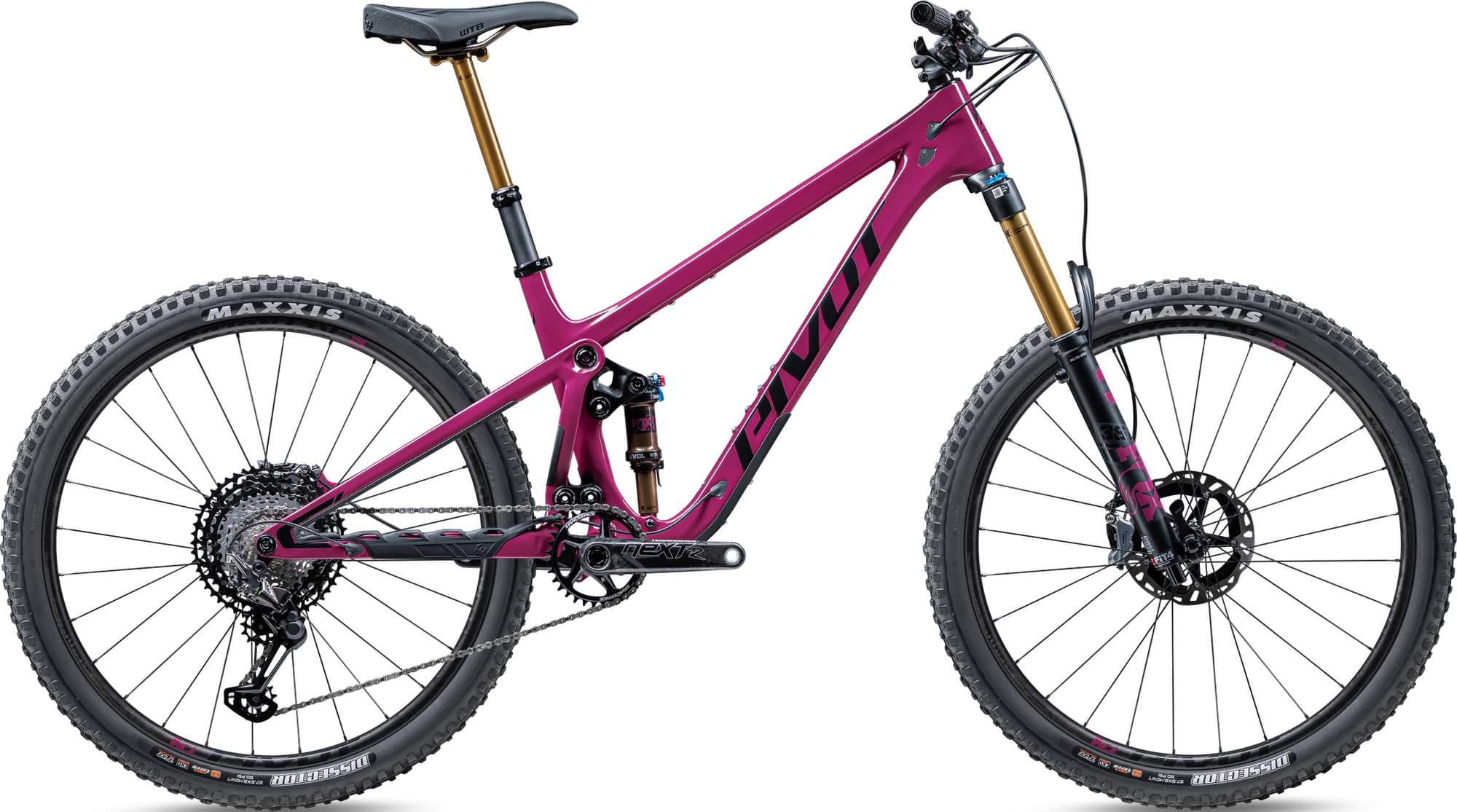

Pivot Shadowcat Pro XT/XTR 2022
2022 Mountain
Estimate price |
9,289$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shadowcat
Suspension Fork
Fox Factory 36 27.5", 44mm offset, FIT4 - 160mm
Rear Shock
Fox Factory Float DPS
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XT M8100 ISPEC EV 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Race Face Æffect R 32t
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 27.5"
15x110 F/12x148 R
Tires
Maxxis Dissector 27.5" x 2.4" TR, EXO
Maxxis Dissector 27.5" x 2.4" TR, EXO
Brakes
Brakes
Shimano XT M8120 4-piston
Disk Rotors
Shimano XT CenterLock - 180mm
Shimano XT CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS-SM) 780mm (MD-LG)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Volt Pro (Medium Width) (MD-XL)
Seatpost
Fox Transfer Factory Series 125mm (XS), 150mm (SM), 175mm (MD-LG)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 713 mm | 743 mm | 777 mm | 801 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 576 mm | 599 mm | 608 mm | 617 mm |
| Reach | 404 mm | 424 mm | 454 mm | 474 mm |
| Top Tube Length | 563 mm | 589 mm | 621 mm | 644 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 85 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1136 mm | 1166 mm | 1200 mm | 1224 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 618 mm | 632 mm | 651 mm | 665 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm |
Model Overview
Shadowcat Pro XT/XTR is a Pivot Shadowcat model. 18 bikes variations carry this model name so far. Take a sneak peek at all Pivot Shadowcat bikes models from 2022, by clicking here.
Model range prices
Pivot Shadowcat Race XT 2022 is the most affordable bike of this model and has a price of 6582$. On the other hand, Pivot Shadowcat Team XX1 AXS 2022, is the most expensive and costs 13006$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Pivot released this model in 2022, its price was 8599$. In conclusion, this bike price is 211.33% more expensive than the price of the average Trail bike.
Overview of components
Fork
Pivot Shadowcat Pro XT/XTR 2022 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Pivot Shadowcat Pro XT/XTR bike has the Fox Factory Float DPS model installed, and has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Shadowcat Pro XT/XTR bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Shadowcat Pro XT/XTR is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 147 cm – 188 cm (4.82 ft – 6.17 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Shadowcat Pro XT/XTR. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
